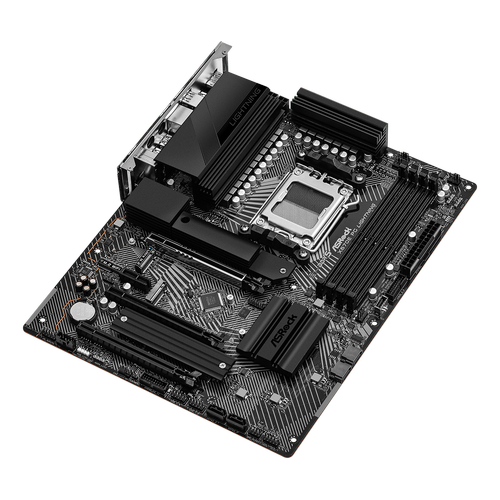

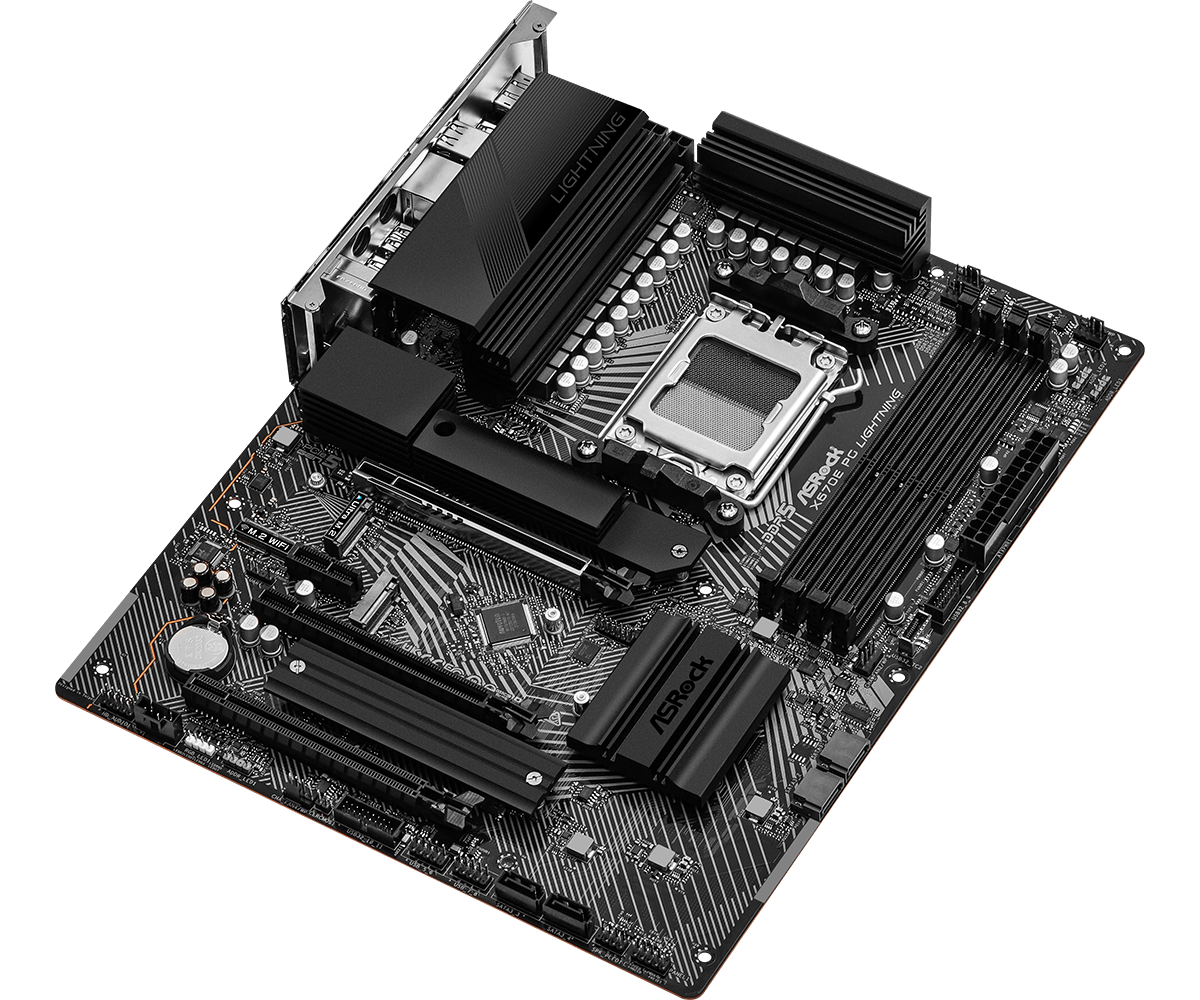

Asrock 90-MXBJ60-A0UAYZ X670e PG LIGHTNING Sc-AM5 DDR5 7800Mhz M2 ATX AMD Anakart

^{Asrock 90-MXBJ60-A0UAYZ X670e PG LIGHTNING Sc-AM5 DDR5 7800Mhz M2 ATX AMD Anakart}

• Unique Feature
  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Dual Channel DDR5
  Rock-Solid Durability
  - Server-Grade Low-Loss PCB
  - 14+2+1 Power Phase, 70A SPS for VCore+SOC
  - Pre-Installed I/O Shield
  Ultrafast Connectivity
  - 2.5G LAN
  - ASRock Lightning Gaming Ports
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Post Status Checker
• CPU
  - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*


  *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
• Chipset
  - AMD X670
• Memory
  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
  - Max. capacity of system memory: 192GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules


  *Please refer to Memory Support List for more information.
• BIOS
  - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio
• LAN
  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Phantom Gaming LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control
  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    - Supports AMD CrossFire™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)


    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors



    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)


    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~4/WP support the fan power up to 2A (24W)
    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

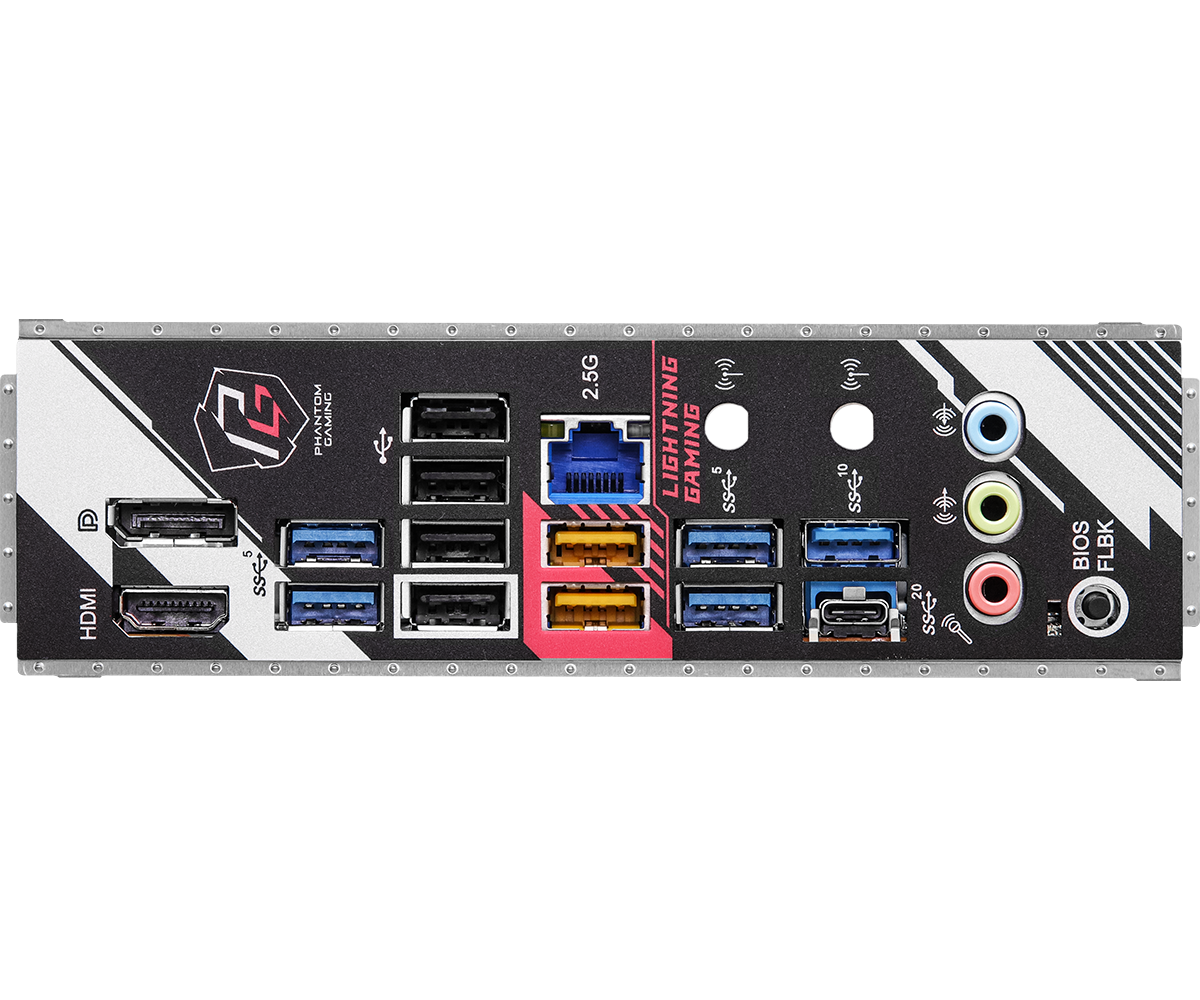

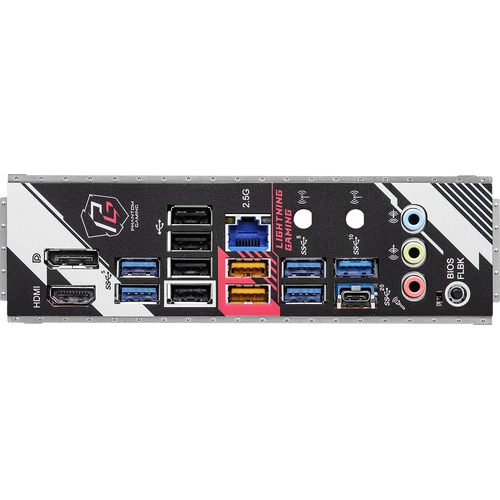

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash


    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 4 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 8 Layer PCB
  • OS
    - Microsoft Windows^® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
    - CEC Tier II ready
