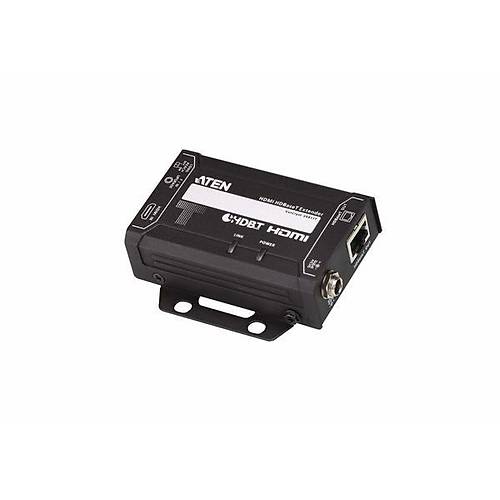

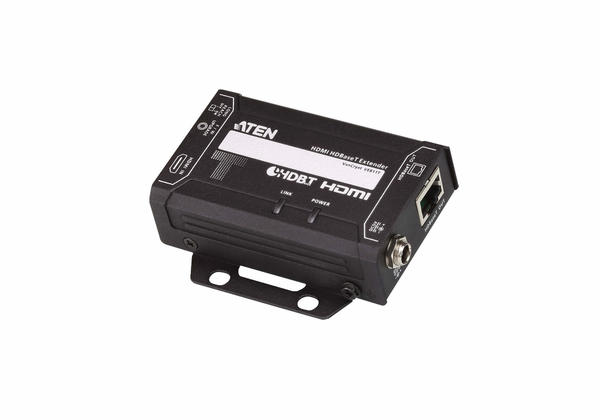

_{ATEN VE811R 100 Mt HDMI HDBaseT RJ-45 Sinyal Uzatma Cihazı}

HDMI HDBaseT Sinyal Uzatma Cihazı, 100 metre
HDMI HDBaseT Receiver (4K@100m) (HDBaseT Class A)


• HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• HDMI (3D, Deep Color, 4K)
• HDCP 2.2 compatible
• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
• Supports wide screen format
• Plug and play – no software required
• Built- in 8KV/ 15 KV ESD protection
• Rack Mountable



Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 ?
Max. Distance	1.8 m
Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	1 x HDMI Type A Female (Black)
Connectors
Unit To Unit	1 x RJ-45 Female
Firmware Upgrade	1 x Mini Stereo Jack Female (Black)
Power	1 x DC Jack (Black) with locking
Switches
Long Reach Mode Switch	1 x Slide Switch - ON/OFF
Power Consumption	DC5V:3.77W:18BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.16 kg ( 0.35 lb )
Dimensions (L x W x H) with bracket	8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.)
Dimensions (L x W x H) without bracket	8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.)



• 1x VE811R HDMI HDBaseT Receiver
• 1x Power Adapters
• 1x User Instructions
