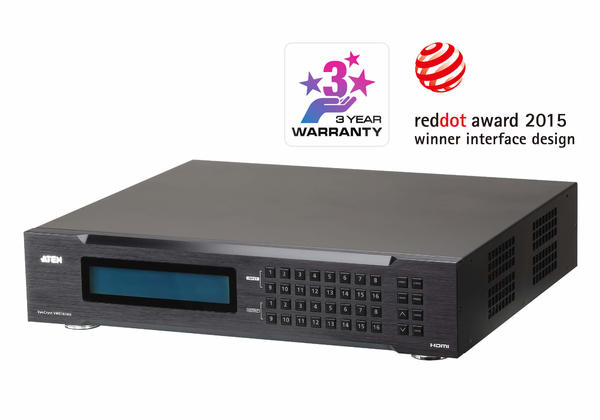

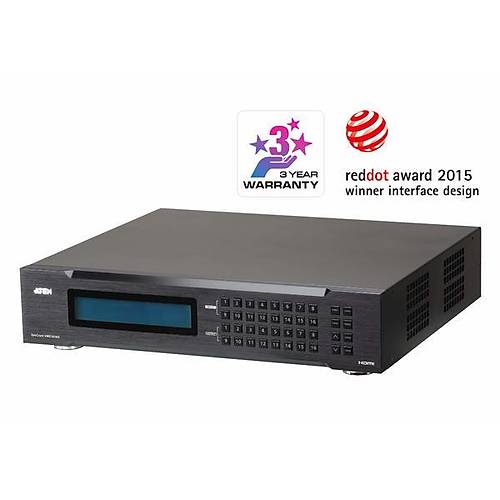

^{Aten VM51616H 16 Port Giriş 16 Port Çıkış HDMI Matrix Switch Scaler}

• Connects any of 16 HDMI sources to any of to 16 HDMI displays

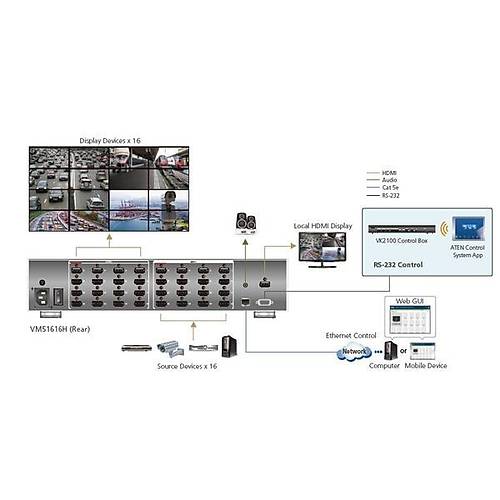

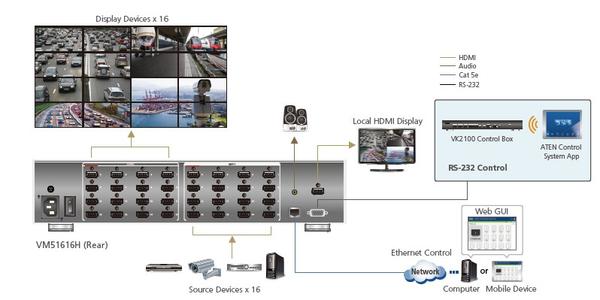

• Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
• View and control via ATEN Video Matrix Control App in a swift and agile way
• Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
• Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
• Video Wall –allows you to create custom video wall layouts via intuitive web GUI*
• EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
• FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
• Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
• HDMI (3D, Deep color); HDCP 1.4 compatible
• Consumer Electronics Control (CEC) support
• Local HDMI output –allows multiple preview of 16 video sources
• Audio-enabled; HDMI audio can be extracted to stereo audio
• Supports Dolby True HD and DTS HD Master audio
• ESD protection for HDMI
• Rack-mountable (2U design)

  *Note:
  1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
  2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

• 1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
• 1x Power Cord
• 1x Rack Mounting Kit
• 1x User Instructions
