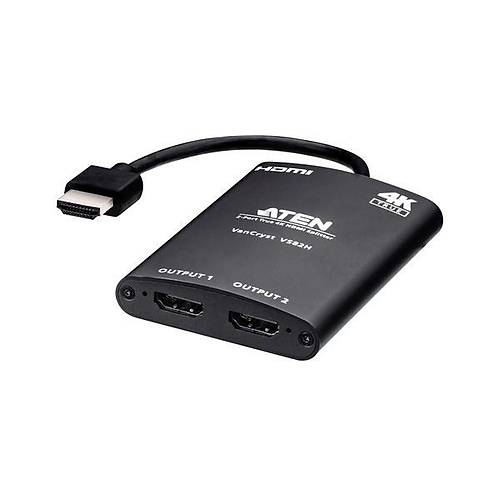

2-Port True 4K HDMI Splitter
- Distributes one True 4K source to two HDMI displays at the same time
- Automatic downscaling function – automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
- HDMI; HDCP 2.2 compliant
- True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR supported
- Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
- Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
- Automatic EDID detection – enjoy high-quality display and use of the best resolution across different screens
- Quality and durable aluminum metal enclosure
- 1x VS82H 2-Port True 4K HDMI Splitter
- 1x Micro-USB Cable
- 1x User Instructions
| EDID Settings | PORT-1 & Default |
| LEDs |
| Status | HDMI Output x 2 (Blue)
Power Input x 1 (Blue) |
| Video Input |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 30cm / 4K@60Hz (4:4:4) |
| Video Output |

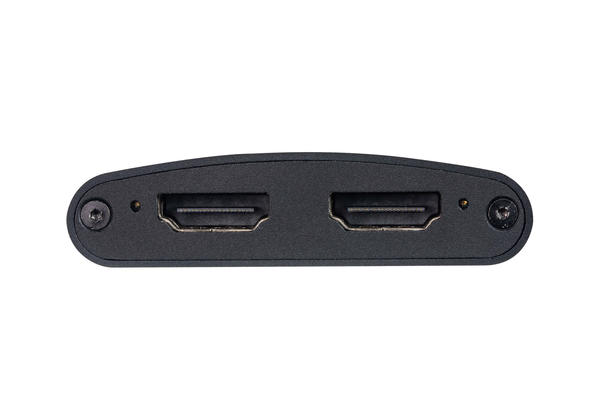

| Interfaces | 2 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 3m / 4K@60Hz (4:4:4) |
| Video |
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Color, 4K);
HDCP 2.2 Compatible |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Power Consumption | 3WATT(MAX)BTU |
| Connectors |
| USB Port | Micro-USB to USB cable (50cm) X 1
Firmware upgrade & power source |
| Environmental |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties |
| Housing | Metal (aluminum) |
| Weight | 0.09 kg ( 0.2 lb ) |
| Dimensions (L x W x H) | 8.80 x 6.00 x 15.00 cm
(3.46 x 2.36 x 5.91 in.) |
| Diğer Özellikler |
|---|
| Stok Kodu | ATEN-VS82H |
| Marka | ATEN |
| Stok Durumu | Bu ürün geçici olarak temin edilememektedir. |
4719264648076
