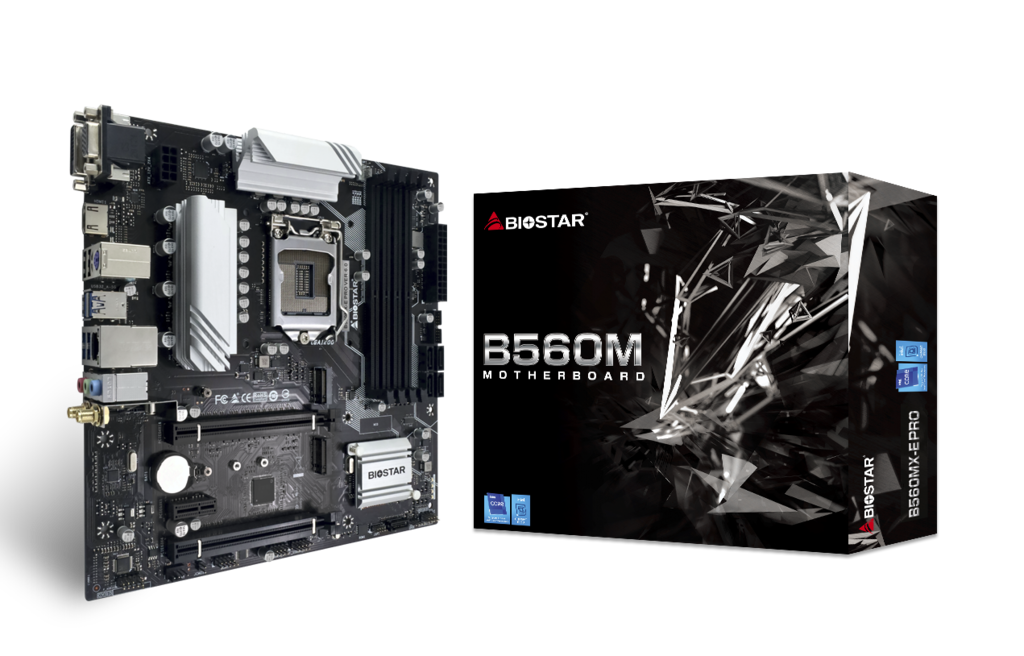

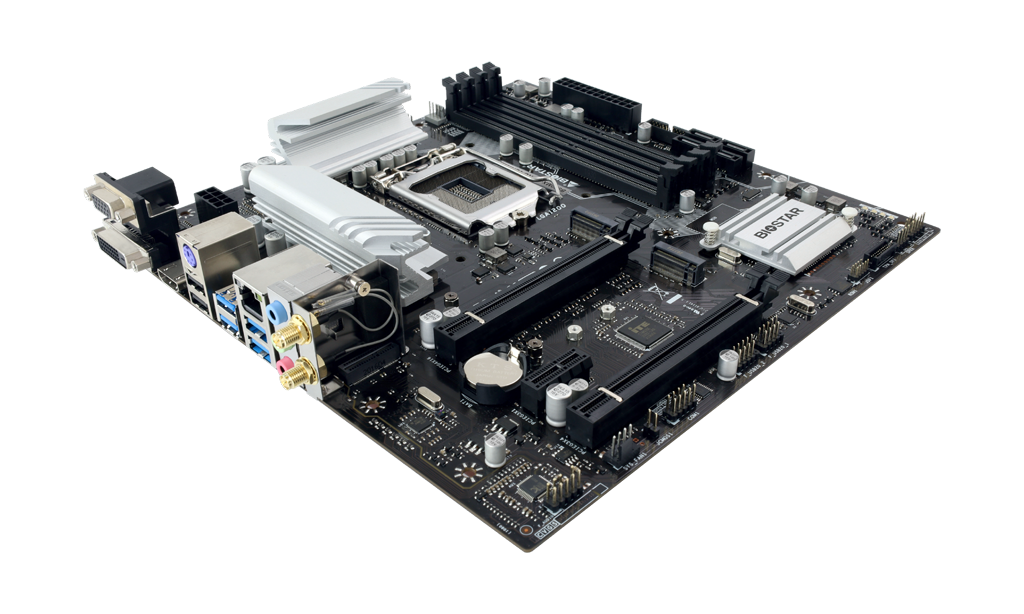

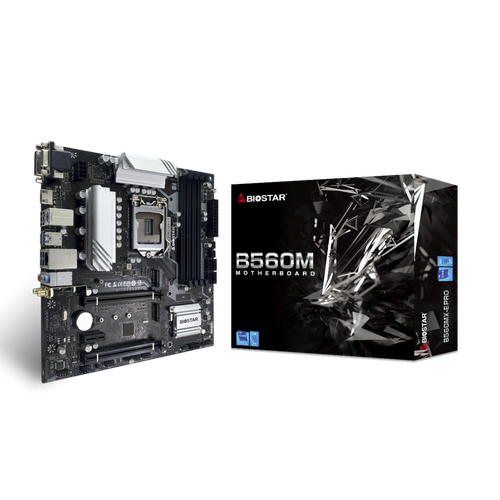

    Biostar B560MX/E PRO Sc-1200 B560 DDR4 4000Mhz M.2 mATX INTEL Anakart

    Görsel 1
    Görsel 2
    Görsel 3
    Para_Puan : 27.027
    Fiyat:
    3.243,24 TL
    Havale / EFT:
    3.139,46 TL
    605,40 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo

    Biostar B560MX/E PRO Sc-1200 B560 DDR4 4000Mhz M.2 mATX INTEL Anakart


    ChipsetIntel B560
    CPU SUPPORTSupport for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/
    Intel Celeron processors in the LGA1200 package
    * Please refer to www.biostar.com.tw for CPU support list.
    MEMORYSupports Dual Channel DDR4 4000+(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200/2933/2666/2400/2133
    4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
    Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
    * Please refer to www.biostar.com.tw for Memory support list.
    INTEGRATED VIDEOBy CPU model
    Supports DX12
    Supports HDCP
    STORAGE-- Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports
    4 x SATA III Connector (6Gb/s) : Supports AHCI & Intel Rapid Storage Technology
    1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):
    Supports M.2 Type 2280 SSD module
    Supports PCIe 4.0 x 4 (64Gb/s)
    Support 11th Gen processor only
    1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST1):
    Supports M.2 Type 2242/ 2260/ 2280 SSD module
    Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
    Supports Intel Optane Technology
    * M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.
    LANIntel I219V
    10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
    AUDIO CODECALC897
    7.1 Channels, High Definition Audio, Hi-Fi(Front)
    USB6 x USB 3.2(Gen1) port (4 on rear I/Os and 2 via internal headers)
    6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
    EXPANSION SLOT1 x PCIe 3.0 x1 Slot
    1 x PCIe 4.0 x16 Slot (x16 mode)
    1 x PCIe 3.0 x16 Slot (x4 mode)
    * According to different CPUs will have different speeds.
    * PCIe 4.0 speed only for INTEL 11th Gen CPUs.

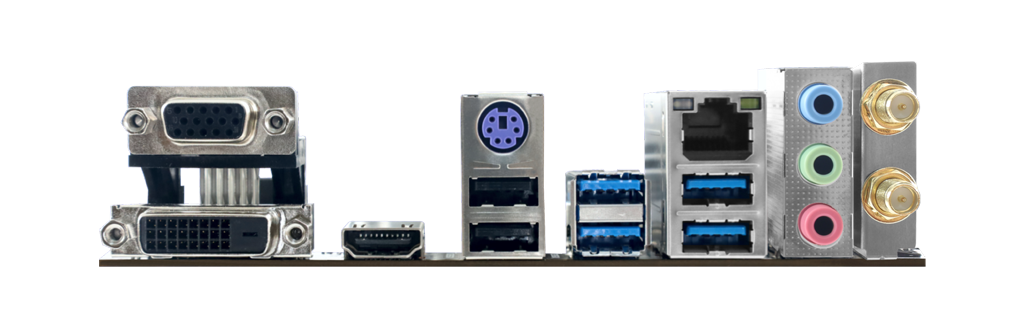

    REAR I/O2 x WIFI Antenna Port
    1 x PS/2 Keyboard/ Mouse Port
    1 x VGA Port
    1 x DVI-D Port
    1 x HDMI 1.4 Port
    4 x USB 3.2 (Gen1) port
    2 x USB 2.0 port
    1 x LAN port
    3 x Audio Jack
    INTERNAL I/O4 x SATA III Connector (6Gb/s)
    1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
    2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
    1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
    1 x 8-Pin Power Connector
    1 x 24-Pin Power Connector
    1 x CPU Fan Connector
    1 x CPU water cooling connector (CPU_OPT)
    1 x System Fan Connector
    1 x Front Panel Header
    1 x Front Audio Header
    1 x Internal Stereo Speaker Header
    1 x Clear CMOS Header
    1 x COM Port Header
    1 x TPM Header
    * M.2 (E key) Wi-Fi card is not provided
    H/W MONITORINGCPU / System Temperature Monitoring
    CPU / System Fan Monitoring
    Smart / Manual CPU Fan Control
    System Voltage Monitoring
    DIMENSIONMicro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
    OS SUPPORTSupports Windows 10(64bit) / 11(64bit)
    ?Biostar reserves the right to add or remove support for any OS with or without notice.
    BUNDLE SOFTWAREBullGuard
    ACCESSORIES2 x SATA Cable
    1 x I/O Shield
    1 x DVD Driver
    1 x Quick Guide
    1 x WiFi antenna accessories
    FEATURESBIO-FLASHER
    BullGuard

    Diğer Özellikler
    Stok KoduB560MX/E-PRO
    MarkaBIOSTAR
    Stok DurumuVar
