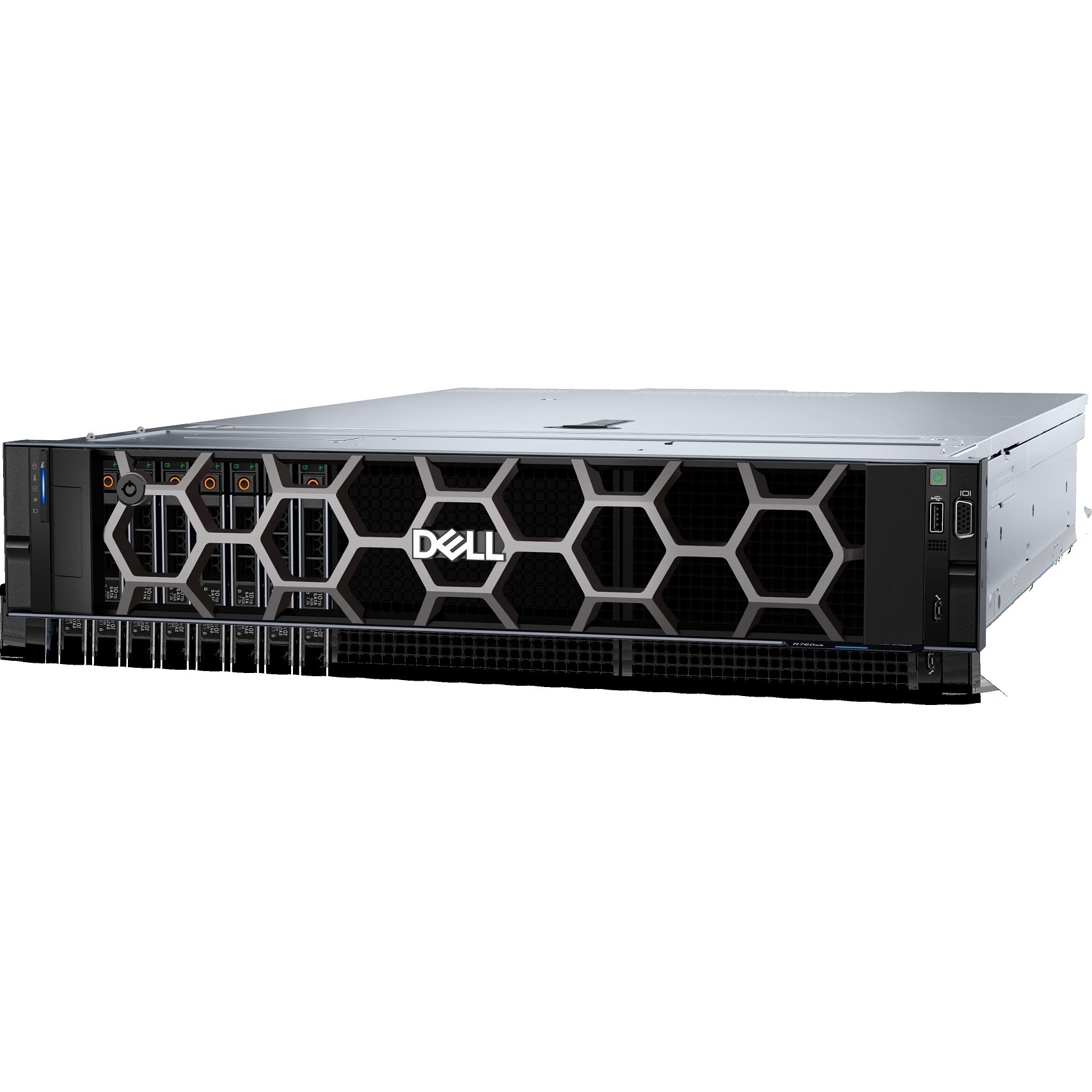

| PowerEdge R760xs [R760XS6A_4] |
| Base PowerEdge R760xs [R760XS6A_2] 210-BGLV SR 1 |
| Smart Selection Smart Selection PowerEdge R760xs 486-82137 1 |
| Trusted Platform Module |
| No Trusted Platform Module 461-AADZ 1 |
| 2.5" Chassis with up to 16 Hard Drives (SAS/SATA), PERC11 321-BJCW SR 1 |
| Processor Intel Xeon Gold 5416S 2G, 16C/32T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4400 338-CHSL SR 1 |
| Additional Processor |
| Intel Xeon Gold 5416S 2G, 16C/32T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4400 338-CHSL SR 1 |
| Additional Processor Processor |
| Additional Processor Selected 379-BDCO 1 |
| Processor Thermal Configuration |
| Standard Heatsink 412-BBBQ SR 1 |
| Performance Optimized 370-AAIP 1 |
| Memory DIMM Type and Speed 4800MT/s RDIMMs 370-AHCL 1 |
| Memory Capacity 32GB RDIMM, 4800MT/s Dual Rank 370-AGZP SR 8 |
| RAID Configuration |
| Unconfigured RAID 780-BCDS 1 |
| RAID Controller PERC H755 SAS Front 405-AAZB SR 1 |
| RAID Controller Front PERC Mechanical Parts, rear load 750-ADWP 1 |
| Hard Drives 1.92TB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive, 3 DWPD 400-AZVM SR 6 |
| BIOS and |
| Advanced System |
| Configuration Settings |
| Power Saving BIOS Settings 384-BBBH 1 |
| Advanced System Configurations |
| No Energy Star 387-BBEY 1 |
| Fans Standard Fan x5 750-ADDY SR 1 |
| Embedded Systems Management |
| iDRAC9, Enterprise 16G 528-CTIC SR 1 |
| Power Supply Dual, Hot-Plug, Power Supply Redundant (1+1), 1100W MM Titanium 450-AKLF SR 1 |
| Power Cords C13 to C14, PDU Style, 10 AMP, 6.5 Feet (2m), Power Cord 450-AADY SR 2 |
| PCIe Riser Riser Config 0, No Riser, 3x16 + 1x8 (2 CPU), with OCP 330-BCKH 1 |
| Motherboard PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM 329-BJRY 1 |
| OCP 3.0 Network Adapters |
| Broadcom 57414 Dual Port 10/25GbE SFP28, OCP NIC 3.0 540-BCOC SR 1 |
| Quick Sync No Quick Sync 350-BCER 1 |
| Password iDRAC,Factory Generated Password, No OMQR 379-BCRG 1 |
| iDRAC Service Module (ISM), NOT Installed 379-BCQX 1 |
| Bezel PowerEdge 2U Standard Bezel 325-BEVI SR 1 |
| Bezel Dell Luggage Tag R760xs 350-BCLY 1 |
| Group Manager iDRAC Group Manager, Disabled 379-BCQY 1 |
| Boot Optimized Storage Cards BOSS Blank 403-BCID 1 |
| Rack Rails ReadyRails Sliding Rails Without Cable Management Arm 770-BDZP SR 1 |
| Dell Teknoloji Limited Şirketi , Serin Sokak, No: 9, Kosifler Center, A Blok, Kat: 4, İçerenköy, Kadıköy, Istanbul, Turkey |
| SHIPPING PowerEdge R760XS Shipping EMEA2 |
| (English/Slovenian/Slovakian/Polish/Czech/Hungar/Greek/Arab) 340-DLHC 1 |
| Shipping Material PowerEdge R760xs Shipping Material 343-BBVC 1 |
| Regulatory PowerEdge R760xs HS5620 CE and CCC Marking 389-FBXY 1 |
| OEM Regulatory Titanium PSU configuration 389-EFJU 1 |
| No Installation Service Selected (Contact Sales Rep for more details) 683-11870 1 |
| Partner Operations Support 647-10219 SR 1 |
| UEFI BIOS Boot Mode with GPT Partition 800-BBDM 1 |
| Operating System No Operating System 611-BBBF 1 |
| OS Media Kits No Media Required 605-BBFN 1 |
| No Systems Documentation, No OpenManage DVD Kit 631-AACK 1 |
| ProSupport Next Business Day Onsite Service Extension, 24 Month(s) 865-BBLL SR 1 |
| ProSupport Next Business Day Onsite Service Initial, 12 Month(s) 865-BBLM SR 1 |
| Bakımını Yapmak Parts Only Warranty 12MONTHS 709-BBIX SR 1 |
