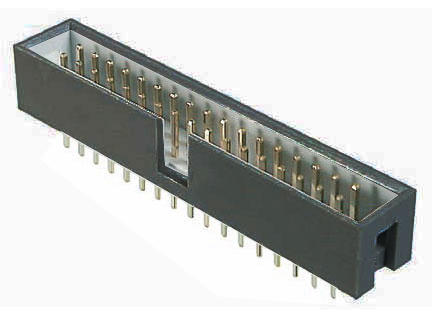

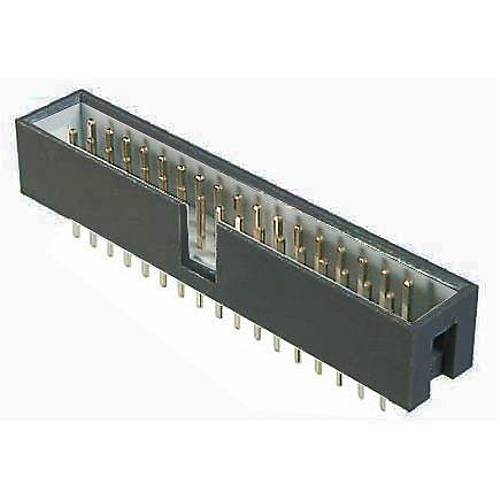

_{Digitus AWHW 26G-0202-LC PCB 26 Pin Erkek Kilitsiz Düz Konektör}

PCB Konnektör 26 Pin Erkek Kilitsiz Düz, Siyah Renk, Header, 26 contacts, straight, pitch 2.54mm x 2.54mm, Black

Header, 10- to 64-contacts, straight, pitch 2.54mm x 2.54mm
Insulator material: PBT, UL94V-0
Contact material: Brass
Plating: Ni, Au / Sn
Contact resistance: 20mΩ max
Insulation resistance: 1000mΩ min
Current rating: 3A
Operating temperature: -40°C to +105°C
Operating voltage: 250V AC
Test voltage: 1000V AC
