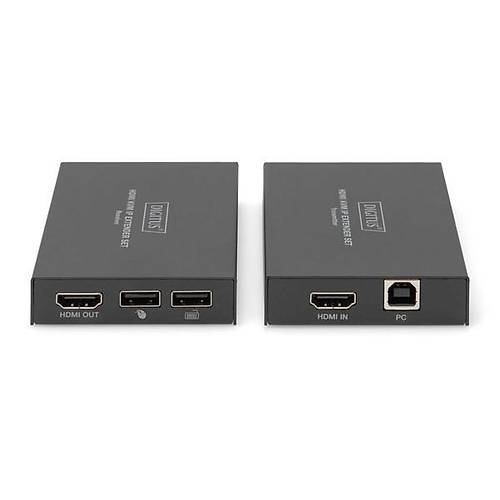

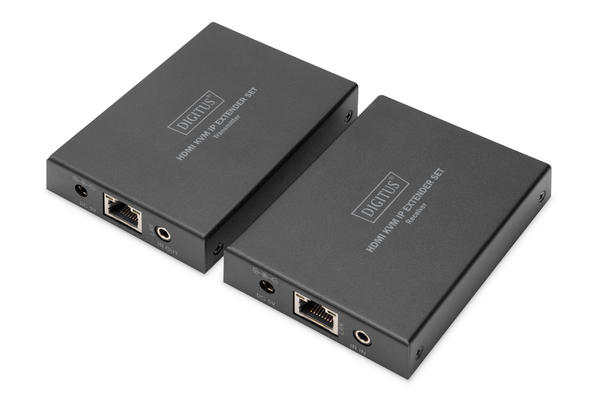

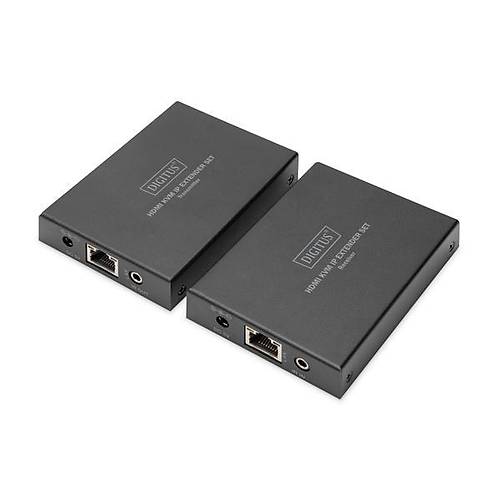

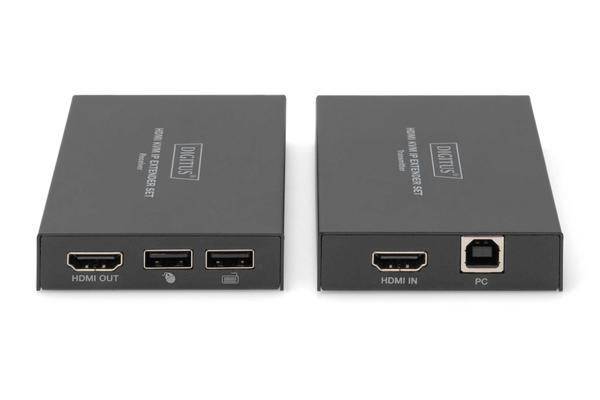

Digitus DS-55507 HDMı to RJ45 150 Mt FhD 1080p KVM Extender Set Over IP

^{Digitus DS-55507 HDMı to RJ45 150 Mt FhD 1080p KVM Extender Set Over IP}

• HDMI 1.4
• 6.75 Gbps video bandwidth
• Supports Full HD, 1920x1200/60 Hz, 4:4:4
• HDCP 1.4
• Supports CAT 5e, 6, 6A, 7, 8 network cable
• Maximum transmission distance: 150 m (point-to-point connection)
• Supports H.256 encoding/decoding
• USB 1.1
• Compression: H.265
• Transmitter unit connections:
• 1x HDMI input (1920x1200/60Hz) - Connection signal source
• 1x RJ45 output - Connection CAT transmission cable
• 1x USB-B input - Connection host PC for use of KVM functionality
• 1x IR output - Connection of IR transmitter
• 1x Power adapter input (DC 5V/1A) - Connection for external power adapter
• Receiver unit connections:
• 1x HDMI output (1920x1200/60Hz) - Connection output device
• 1x RJ45 input - Connection CAT transmission cable
• 2x USB-A (1.1) input - Connection of mouse and keyboard
• 1 x IR input - Connection of IR receiver
• 1x Power adapter input (DC 12V/1A) - Connection for external power adapter
• ESD protection
• Operating temperature: -10-50 °
• Power consumption: Transmitter approx. 1.4W, Receiver approx. 1.7W
• Housing: Metal
• Dimensions (1 unit): L 9.15 x W 6.7 x H 1.75 cm
• Weight: Transmitter 155 g, Receiver 150 g
• Color: Black
• KVM: no
• PoE (Power over Ethernet): no

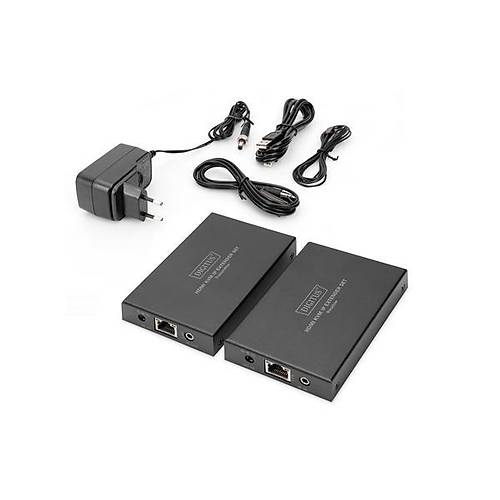

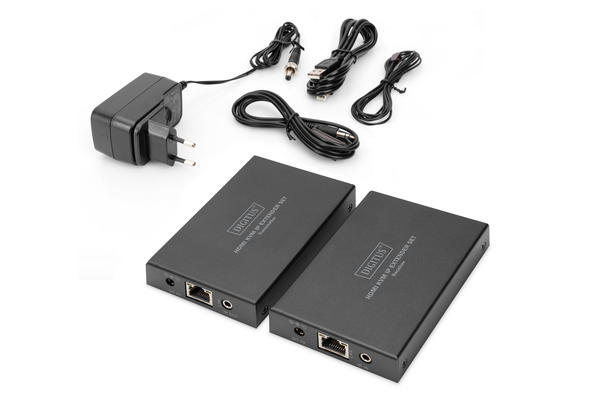

• 1x Transmitter unit
• 1x Receiver unit
• 1x IR transmission cable (1.5 m)
• 1x IR receiver cable (1.5 m)
• 2x Power adapter (DC 12V/1A, 1.15 m)
• 1x USB-B-A cable (1.5 m)
• 1x User manual
