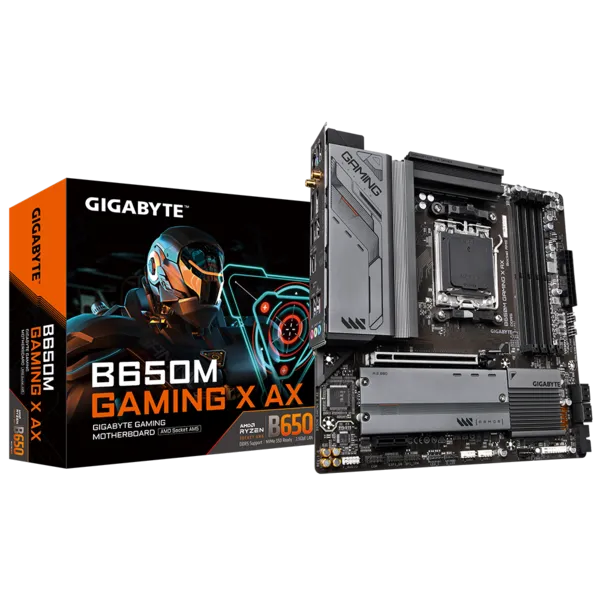

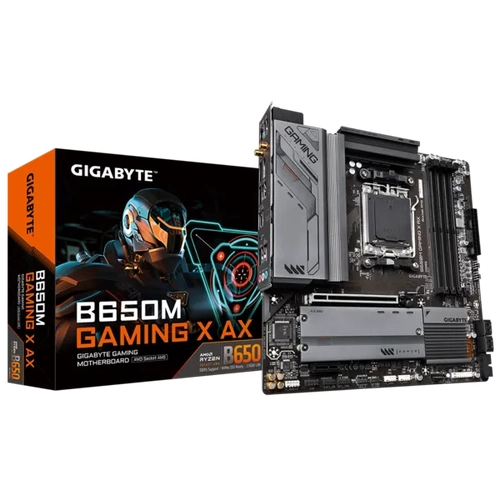

Gigabyte B650M GAMING X AX sc-AM5 B650 DDR5 8000Mhz M.2 Wi-Fi 6E 2.5Gbit Lan mATX AMD Anakart

Görsel 1
Görsel 2
Görsel 3
Para_Puan : 85.359
Fiyat:
10.243,12 TL
Havale / EFT:
9.833,40 TL
1.946,19 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

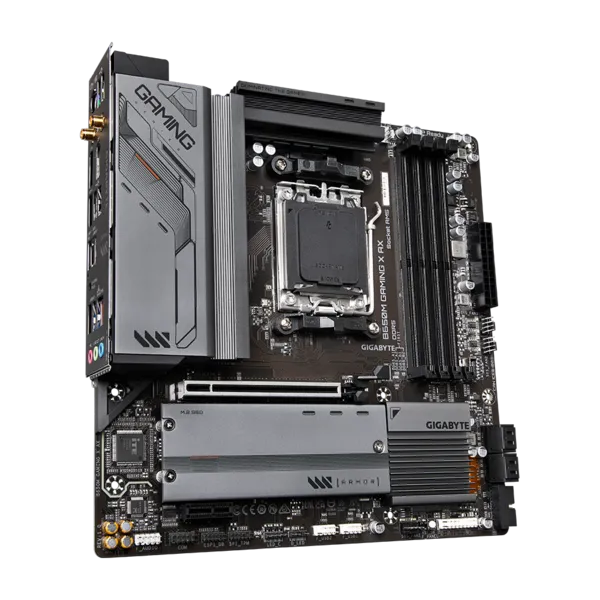

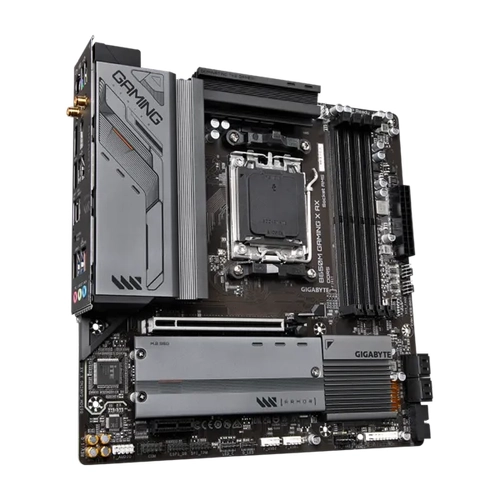

Gigabyte B650M GAMING X AX sc-AM5 B650 DDR5 8000Mhz M.2 Wi-Fi 6E 2.5Gbit Lan mATX AMD Anakart


  • İşlemci
    1. AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
    (Daha fazla bilgi için "İşlemci Destek Listesine" bakınız.)
  • Yongaseti
    1. AMD B650
  • Bellek
    1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Çift kanal bellek mimarisi
    4. ECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini destekler
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Dahili Grafik
    Birleşik Grafik İşlemcileri
    1. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version.
    2. Maksimum 4096x2160 @ 60 Hz çözünürlüğü destekleyen 1 x HDMI bağlantı noktası
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
    Aynı anda 3 görüntüye kadar desteği vardır.
  • Ses Desteği
    1. Realtek® audio codec
    2. HD Ses Desteği
    3. 2/4/5.1/7.1-kanal
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Bağlantı Modülü
    AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0/1.2)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Genişleme Yuvaları
    CPU
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    Chipset
    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
  • Depolama Ara yüzü
    CPU
    1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
    Yongaseti
    1. 4 x SATA 6Gb/s konektörler
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    İşlemci
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    CPU + USB 2.0 Hub
    1. 4 x USB 2.0/1.1 ports on the back panel
    Yongaseti
    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 yuva dahili USB bağlantısı ile
  • Dahili G/Ç Bağlantı Noktaları
    1. 1 x 24-pin ATX ana güç konektörü
    2. 1 x 8-pin ATX 12V güç konektörü
    3. 1 x CPU Fan konektörü
    4. 3 x Sistem fanı bağlantı noktası
    5. 1 x adreslenebilir LED şerit başlığı
    6. 1 x RGB LED şerit başlığı
    7. 2 x M.2 Socket 3 konnektörler
    8. 4 x SATA 6Gb/s konnektörü
    9. 1 x Ön panel konektörü
    10. 1 x Ön panel ses konektörü
    11. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    12. 1 x USB 3.2 Gen 1 header
    13. 2 x USB 2.0/1.1 konektörü
    14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      TPM özeliği, bölgesel kuralların farklılığı nedeniyle opsiyonel olabilir
    15. 1 x seri port başlığı
    16. 1 x Reset (Yeniden Başlatma) Düğmesi
    17. 1 x reset jumper
    18. 1 x Clear CMOS bağlayıcı teli

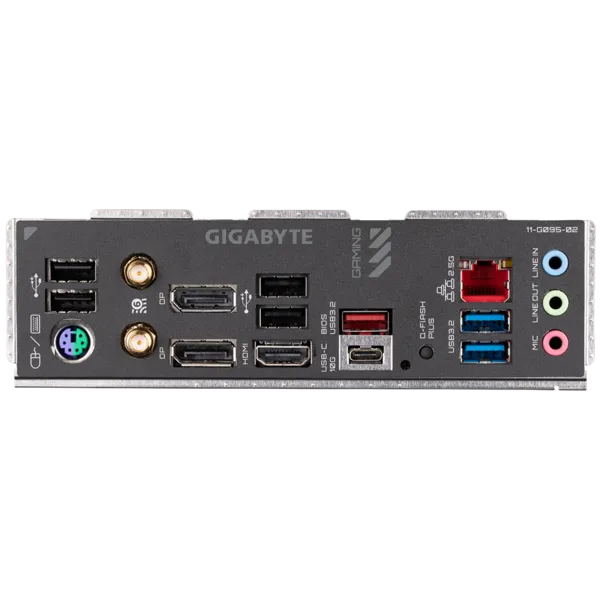

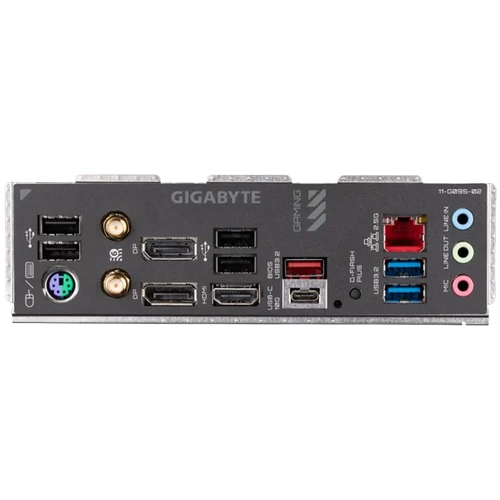

  • Arka Panel G/Ç
    1. 4 x USB 2.0/1.1 yuva
    2. 1 x PS/2 Klavye/Fare bağlantı noktası
    3. 2 x SMA anten konnektörleri (2T2R)
    4. 2 x DisplayPorts
    5. 1 x HDMI bağlantı noktası
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    8. 1 x Q-Flash Plus button
    9. 1 x RJ-45 bağlantı noktası
    10. 2 x USB 3.2 Gen 1 ports
    11. 3 x ses jakı
  • G/Ç Denetleyicisi
    1. iTE® I/O Kontrol Yongası
  • Donanım İzleme
    1. Voltaj dedektörü
    2. Sıcaklık dedektörü
    3. Fan hız dedektörü
    4. Fan hatası uyarısı
    5. Fan hız kontrolü
    6. * Fan Kontrol Hız Fonksiyonu yüklediğiniz soğutucuya göre değişkenlik gösterir.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Lisanslı AMI UEFI BIOS kullanımı
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Diğer Özellikler
    1. Support for GIGABYTE Control Center (GCC)
      *Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Q-Flash desteği
    3. Q-Flash Plus desteği
  • Bundled Software
    1. Norton® Internet Security (OEM versiyon)
    2. LAN bandwidth management software
  • İşletim Sistemi
    1. Support for Windows 11 64-bit
    2. Windows 10 64-bit desteği
  • Form Faktör
    1. Mikro ATX Form Faktörü; 24,4 cm x 24,4 cm

Diğer Özellikler
Stok KoduB650M-GAMING-X-AX
MarkaGIGABYTE
Stok DurumuVar
4719331849993
