    Gigabyte B760M AORUS ELITE AX Sc-1700 B760 DDR5 7800Mhz 2xM2 2.5Gbe Wi-Fi 6E mATX INTEL Anakart

    Görsel 1
    Görsel 2
    Görsel 3
    Para_Puan : 84.067
    Fiyat:
    10.087,99 TL
    Havale / EFT:
    9.765,17 TL
    1.883,09 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo Kargo Bedava

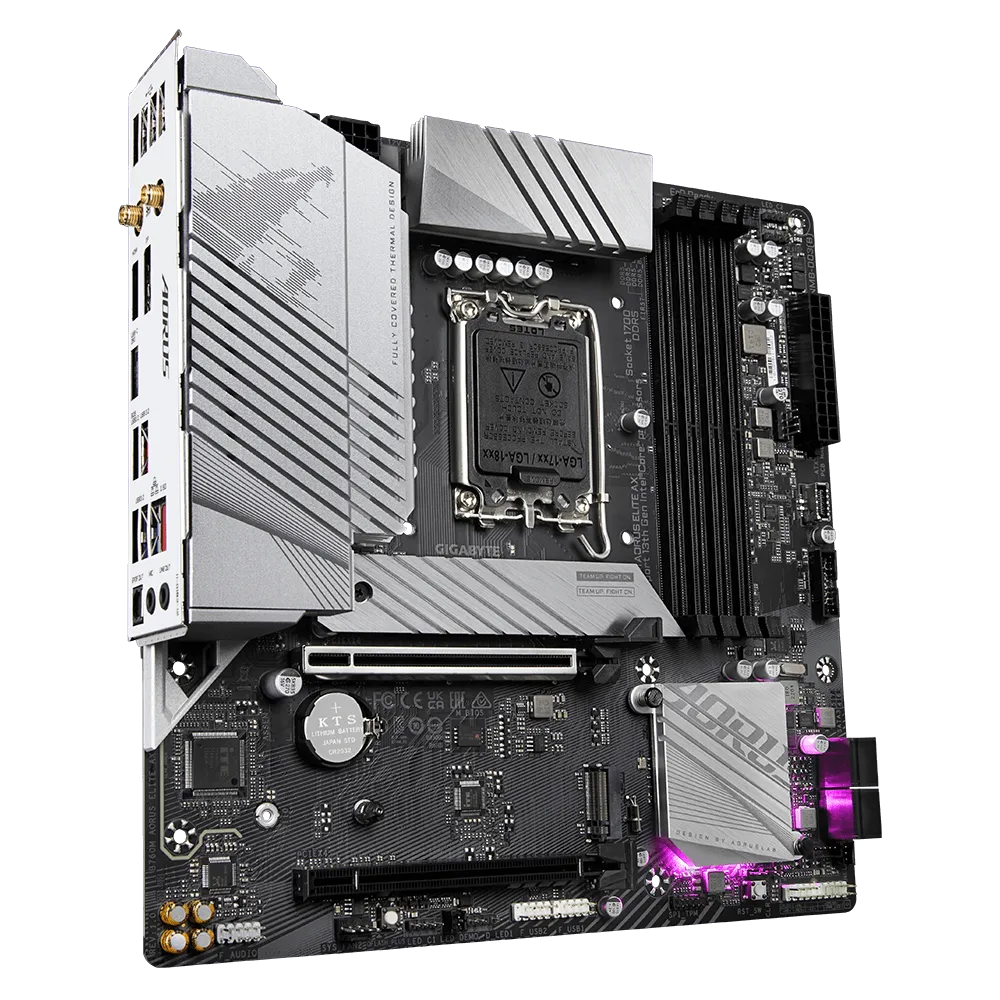

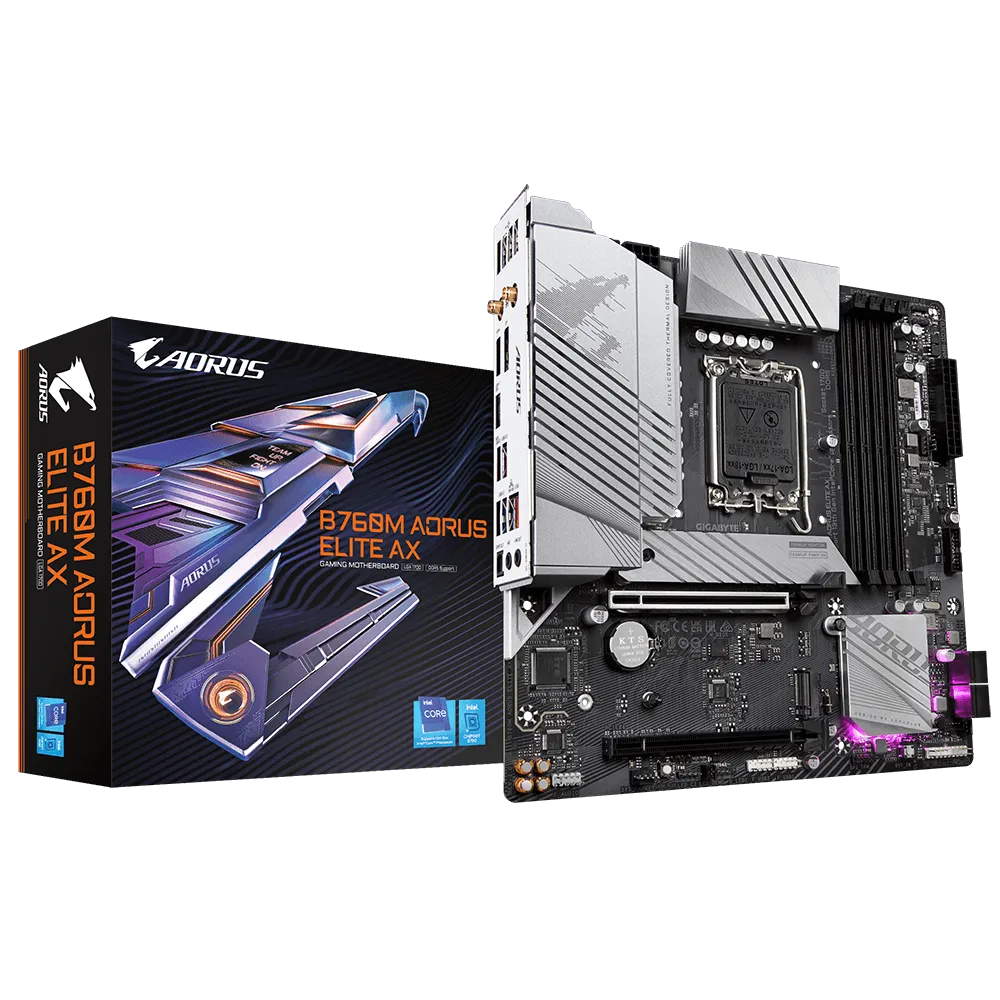

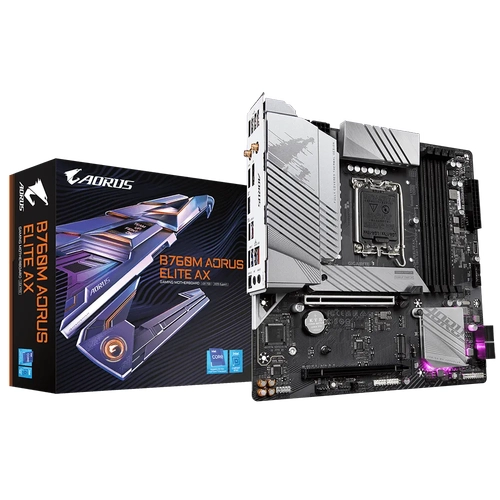

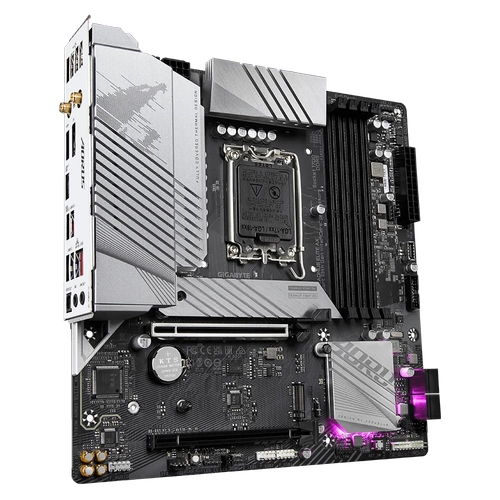

    Gigabyte B760M AORUS ELITE AX Sc-1700 B760 DDR5 7800Mhz 2xM2 2.5Gbe Wi-Fi 6E mATX INTEL Anakart


    • CPU
      1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
      2. L3 cache varies with CPU
      * Please refer to "CPU Support List" for more information.
    • Chipset
      1. Intel® B760 Express Chipset
    • Memory
      1. Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
      2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
      3. Dual channel memory architecture
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.1 version and HDCP 2.3.
        ** Support native HDMI 2.1 TMDS compatible ports.
      2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version and HDCP 2.3
      (Graphics specifications may vary depending on CPU support.)
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
      4. Support for S/PDIF Out
    • LAN
      1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    • Wireless Communication module
      Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0)
      1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      2. BLUETOOTH 5.3
      3. Support for 11ax 160MHz wireless standard
      Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
      1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      2. BLUETOOTH 5.3
      3. Support for 11ax 160MHz wireless standard
      (Actual data rate may vary depending on environment and equipment.)
    • Expansion Slots
      CPU:
      1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
        * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      Chipset:
      1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
      Support for AMD CrossFireX™ technology
    • Storage Interface
      CPU:
      1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
      Chipset:
      1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
      2. 4 x SATA 6Gb/s connectors
      RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    • USB
      Chipset:
      1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
      2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
      3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
      4. 1 x USB 3.2 Gen 1 port on the back panel
      5. 4 x USB 2.0/1.1 ports available through the internal USB headers
      Chipset+USB 3.2 Gen 1 Hub:
      1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      Chipset+USB 2.0 Hub:
      1. 4 x USB 2.0/1.1 ports on the back panel
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x 4-pin ATX 12V power connector
      4. 1 x CPU fan header
      5. 3 x system fan headers
      6. 2 x addressable LED strip headers
      7. 2 x RGB LED strip headers
      8. 2 x M.2 Socket 3 connectors
      9. 4 x SATA 6Gb/s connectors
      10. 1 x front panel header
      11. 1 x front panel audio header
      12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
      13. 1 x USB 3.2 Gen 1 header
      14. 2 x USB 2.0/1.1 headers
      15. 2 x Thunderbolt™ add-in card connectors
      16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      17. 1 x Q-Flash Plus button
      18. 1 x reset button
      19. 1 x reset jumper
      20. 1 x Clear CMOS jumper

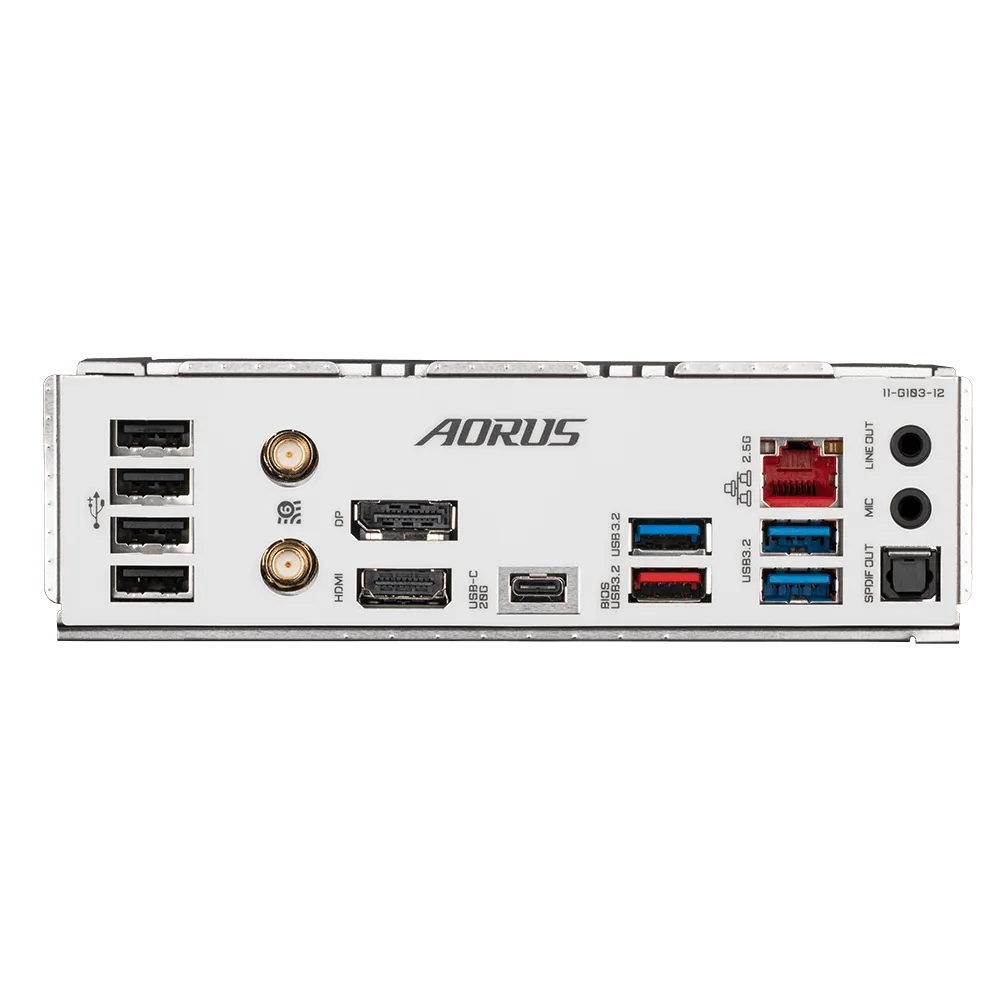

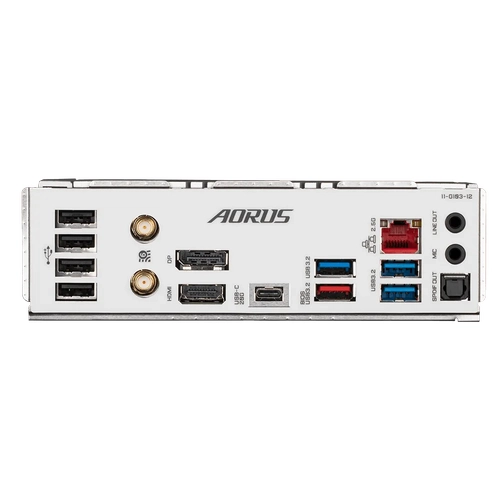

    • Back Panel Connectors
      1. 2 x SMA antenna connectors (2T2R)
      2. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
      3. 1 x USB 3.2 Gen 2 Type-A port (red)
      4. 3 x USB 3.2 Gen 1 ports
      5. 4 x USB 2.0/1.1 ports
      6. 1 x HDMI port
      7. 1 x DisplayPort
      8. 1 x RJ-45 port
      9. 1 x optical S/PDIF Out connector
      10. 2 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for GIGABYTE Control Center (GCC)
        * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      2. Support for Q-Flash
      3. Support for Q-Flash Plus
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Operating System
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 24.4cm

    Diğer Özellikler
    Stok KoduB760M-AORUS-ELITE-AX
    MarkaGIGABYTE
    Stok DurumuVar
    4719331851309
