Gigabyte X670E AORUS XTREME Sc-AM5 X670 DDR5 8000Mhz 3xM2 WİFİ 6E 10Gbit LAN ATX AMD Anakart

Gigabyte X670E AORUS XTREME Sc-AM5 X670 DDR5 8000Mhz 3xM2 WİFİ 6E 10Gbit LAN ATX AMD Anakart Gigabyte X670E AORUS XTREME Sc-AM5 X670 DDR5 8000Mhz 3xM2 WİFİ 6E 10Gbit LAN ATX AMD Anakart Gigabyte X670E AORUS XTREME Sc-AM5 X670 DDR5 8000Mhz 3xM2 WİFİ 6E 10Gbit LAN ATX AMD Anakart
Görsel 1
Görsel 2
Görsel 3
Para_Puan : 423.734
Fiyat:
50.848,13 TL
Havale / EFT:
49.322,69 TL
9.830,64 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

Ürüne Oy Verin

Satıcıya Danış
Gigabyte X670E AORUS XTREME Sc-AM5 X670 DDR5 8000Mhz 3xM2 WİFİ 6E 10Gbit LAN ATX AMD Anakart

  • İşlemci
    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

    (Daha fazla bilgi için "İşlemci Destek Listesine" bakınız.)
  • Yongaseti
    1. AMD X670
  • Bellek
    1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    3. Çift kanal bellek mimarisi
    4. ECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini destekler
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Dahili Grafik
    Birleşik Grafik İşlemcileri
    1. Maksimum 4096x2160 @ 60 Hz çözünürlüğü destekleyen 1 x HDMI bağlantı noktası
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    2. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    (Graphics specifications may vary depending on CPU support.)
  • Ses Desteği
    1. Realtek® ALC1220-VB kodek
    2. * Ön panel hat çıkışı jakı DSD sesini destekler.
    3. ESS ES9118 DAC chip
    4. Support for DTS:X® Ultra
    5. HD Ses Desteği
    6. 2/4/5.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
    7. S/PDIF Çıkış Desteği
  • LAN
    1. Marvell® AQtion AQC113C 10GbE LAN chip
      (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Bağlantı Modülü
    Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Genişleme Yuvaları
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
    1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode
      * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connectors is populated, the PCIEX16 slot operates at up to x8 mode.
    2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
      (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
    Chipset
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
  • Depolama Ara yüzü
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
      AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
      AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
    2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
      * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors.
    1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
      AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
      AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    6 x SATA 6Gb/s konnektör
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    İşlemci
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Yongaseti
    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    4. 4 x USB 2.0/1.1 yuva dahili USB bağlantısı ile
    Chipset+USB 2.0 Hub
    1. 4 x USB 2.0/1.1 ports on the back panel
  • Dahili G/Ç Bağlantı Noktaları
    1. 1 x 24-pin ATX ana güç konektörü
    2. 2 x 8 pinli ATX 12V güç konnektörleri
    3. 1 x CPU Fan konektörü
    4. 1 x sıvı soğutma CPU fan başlığı
    5. 4 x sistem fan konektörü
    6. 4 x system fan/water cooling pump headers
    7. 2 x Adreslenebilir LED şerit başlıkları
    8. 2 x RGB LED şerit başlıkları
    9. 1 x CPU soğutucu LED şerit / RGB LED şerit başlığı
    10. 4 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s konnektörler
    12. 1 x Ön panel konektörü
    13. 1 x Ön panel ses konektörü
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    15. 2 x USB 3.2 Gen 1 headers
    16. 2 x USB 2.0 / 1.1 başlıkları
    17. 1 x noise detection header
    18. 1 x THB_U4 add-in card connector
    19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      TPM özeliği, bölgesel kuralların farklılığı nedeniyle opsiyonel olabilir
    20. 1 x Power (Güç) Düğmesi
    21. 1 x Reset (Yeniden Başlatma) Düğmesi
    22. 2 x sıcaklık sensör başlığı
    23. 1 x reset jumper
    24. 1 x Clear CMOS bağlayıcı teli
    25. Voltaj Ölçüm Noktası

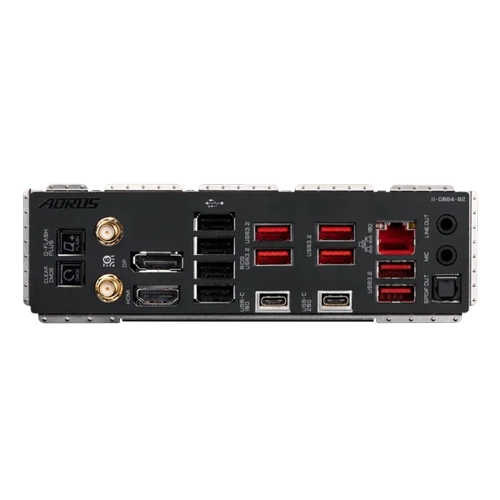

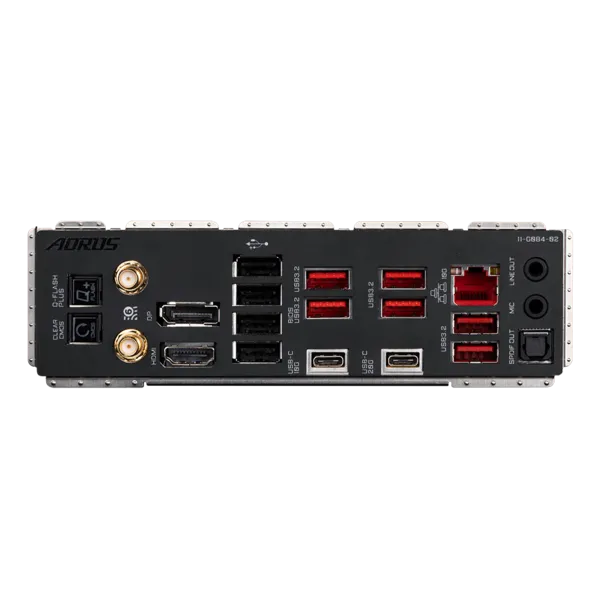

  • Arka Panel G/Ç
    1. 1 x Q-Flash Plus button
    2. 1 x Clear CMOS düğmesi
    3. 2 x SMA anten konnektörleri (2T2R)
    4. 1 x DisplayPort bağlantı noktası
    5. 1 x HDMI bağlantı noktası
    6. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    8. 6 x USB 3.2 Gen 2 Type-A ports (red)
    9. 4 x USB 2.0/1.1 yuva
    10. 1 x RJ-45 bağlantı noktası
    11. 1 x optik S / PDIF Çıkış konektörü
    12. 2 x ses jakı
  • G/Ç Denetleyicisi
    1. iTE® I/O Kontrol Yongası
  • Donanım İzleme
    1. Voltaj dedektörü
    2. Sıcaklık dedektörü
    3. Fan hız dedektörü
    4. Su soğutma akış hızı algılama
    5. Fan hatası uyarısı
    6. Fan hız kontrolü
    7. * Fan (pompa) hız kontrolü fonksiyonunun desteklenip desteklenmediği, kurduğunuz fan (pompa) 'ya bağlıdır.
    8. Noise detection
  • BIOS
    1. 1 x 256 Mbit flash
    2. Lisanslı AMI UEFI BIOS kullanımı
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Diğer Özellikler
    1. Support for GIGABYTE Control Center (GCC)
      *Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Q-Flash desteği
    3. Q-Flash Plus desteği
    4. Support for Smart Backup
  • Bundled Software
    1. Norton® Internet Security (OEM versiyon)
    2. LAN bandwidth management software
  • İşletim Sistemi
    1. Windows 10 64-bit desteği
    2. Support for Windows 11 64-bit
  • Form Faktör
    1. E-ATX Form Faktörü; 30,5 cm x 26,9 cm
Diğer Özellikler
Stok KoduX670E-AORUS-XTREME
MarkaGIGABYTE
Stok DurumuVar
4719331848774
