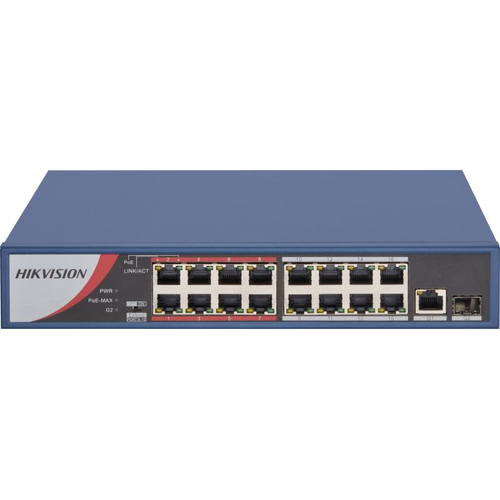

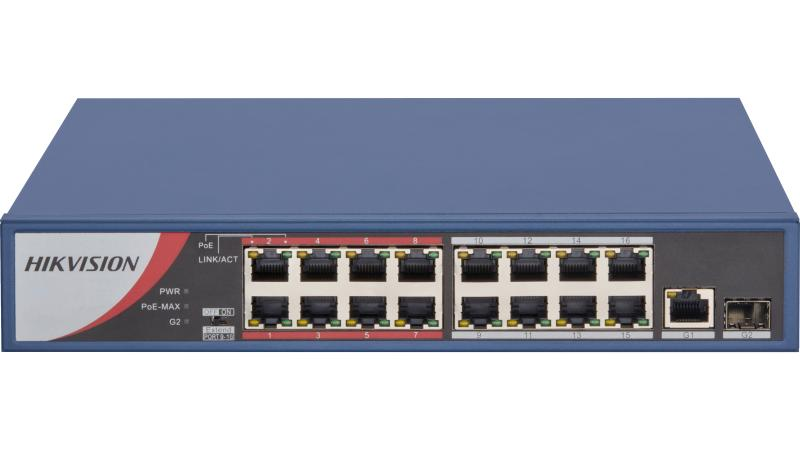

Hikvision DS-3E0318P-E/M 16 Port Gigabit PoE 2 Port Uplink 1 Port SFP 130W PoE Switch

^{Hikvision DS-3E0318P-E/M 16 Port Gigabit PoE 2 Port Uplink 1 Port SFP 130W PoE Switch}

• General
• Dimensions (W × H × D)266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
• ShellMetal material
• Gross Weight2.58 kg (5.69 lb)
• Net Weight1.80 kg (4.00 lb)
• Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
• Operating Humidity5% to 95% (no condensation)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Storage Humidity5% to 95% (no condensation)
• Power Supply100 to 240 VAC, 50/60 Hz, Max. 2.5 A
• Power Consumption In Idle20 W
• Max. Power Consumption150 W

• Network Parameters
• Limanlar16 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Working ModeStandard mode (default); Extend mode
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeStore-and-forward switching
• High Priority PortsPorts 1 to 8
• MAC Address Table4 K
• Switching Capacity7.2 Gbps
• Packet Forwarding Rate5.356 Mpps
• Internal Cache2.75 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPorts 1 to 16
• Max. Port Power30 W
• PoE Power Budget130 W

• Dialing Function
• Long RangePorts 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
