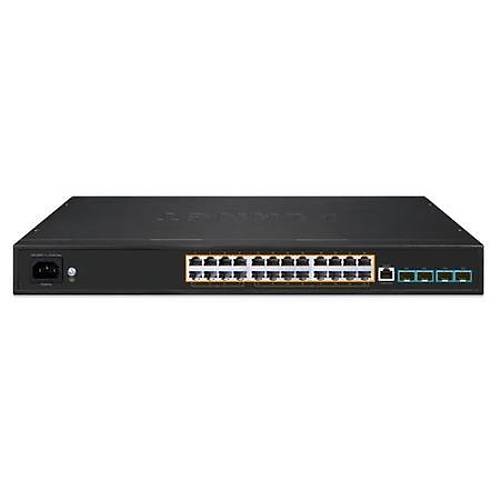

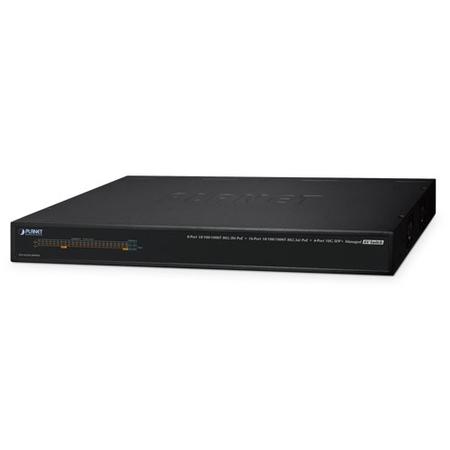

Planet PL-AVS-4210-24HP4X 24 Port Gigabit PoE+ 4 Port SFP+ Managed Yönetilebilir PoE Switch

Planet PL-AVS-4210-24HP4X 24 Port Gigabit PoE+ 4 Port SFP+ Managed Yönetilebilir PoE Switch Planet PL-AVS-4210-24HP4X 24 Port Gigabit PoE+ 4 Port SFP+ Managed Yönetilebilir PoE Switch
Görsel 1
Görsel 2
Para_Puan : 300.727
Fiyat:
36.087,29 TL
Havale / EFT:
35.004,67 TL
6.976,88 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Sınırlı Sayıda Kargo Bedava

Ürüne Oy Verin

Satıcıya Danış

Planet PL-AVS-4210-24HP4X 24 Port Gigabit PoE+ 4 Port SFP+ Managed Yönetilebilir PoE Switch

Hardware Specifications
Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
PoE Injector Port8 ports with 802.3bt PoE++ injector function (Ports 1 to 8)
16 ports with 802.3at PoE+ injector function (Ports 9 to 24)
SFP Ports4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4)
Backward compatible with 100/1G/2.5GBASE-X SFP transceivers
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Power RequirementsAC 100~240V, 50/60Hz
Power Consumption/ DissipationMaximum 15.1 watts / 51.5 BTU (system on)
Maximum 533 watts/1818.7 BTU (full loading)
Dimensions (W x D x H)440 x 207 x 44mm
Weight3,443g
InstallationRack mount
ESD ProtectionContact Discharge 6KV DC
Air Discharge 8KV DC
LEDSystem:
?Power LED (Green)
?SYS LED (Green)
Ports:
?10/100/1000 RJ45 Ports LNK/ACT (Green)
?10G SFP+ Interface LNK/ACT (Green)
?PoE-in-Use (Amber)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric128Gbps/non-blocking
Switch Throughput@64 bytes95.23Mpps @64 bytes
MAC Address Table16K entries
Shared Data Buffer12Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame12 Kbytes
Power over Ethernet
PoE StandardIEEE 802.3bt PoE++ PSE (Ports 1 to 8)
IEEE 802.3af/at PoE+ PSE (Ports 9 to 24)
PoE Power Supply TypeEnd-span/802.3bt (Ports 1 to 8)
End-span (Ports 9 to 24)
Power Pin Assignment802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
802.3at PoE: End-span: 1/2(-), 3/6(+)
PoE Power OutputPort 1 to 8 – 95W (max.)
Port 9 to 24 – 32W (max.)
PoE Power Budget450 watts (max.)
200 watts @ fanless mode
Max. Number of 95W 802.3bt Type 4 PDs5
Max. Number of 60W 802.3bt Type 3 PDs8
Max. Number of 30W 802.3at Type 2 PDs16
PoE Management Functions
PoE ManagementSystem PoE Admin Mode
Fanless Mode
Consumption Mode/Allocation Mode
Temperature Threshold
Enhanced PoE ModeStandard/Legacy/UPoE
Active PoE Device Live DetectionYes
PoE Power RecyclingYes, daily or predefined schedule
PoE Schedule4 schedule profiles
PoE Extended ModeYes, max. up to 250 meters
Layer 2 Functions
Port MirroringTX/RX/Both
Many-to-1 monitor
Up to 4 sessions
VLAN802.1Q tagged VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP and static trunk
Supports 8 groups with 8 ports per trunk
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP SnoopingIPv4 IGMP snooping v2, v3
IGMP querier
Up to 256 multicast groups
MLD SnoopingIPv6 MLD snooping v1, v2, up to 256 multicast groups
Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
QoS8 mapping IDs to 8 level priority queues
?Port number
?802.1p priority
?DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Security Functions
Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries
Port SecurityBuilt-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC SecurityIP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries
Enhanced SecurityDHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management InterfacesConsole
Web browser
Telnet
SNMP v1, v2c
Secure Management InterfacesSSHv2, TLSv1.2, SNMP v3
System ManagementFirmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS/CloudViewer/CloudViewerPro
Event ManagementRemote/Local Syslog
System log
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 60 degrees C
Humidity5 ~ 95% (non-condensing)
Diğer Özellikler
Stok KoduPL-AVS-4210-24HP4X
MarkaPLANET
Stok DurumuVar
4711605287784
