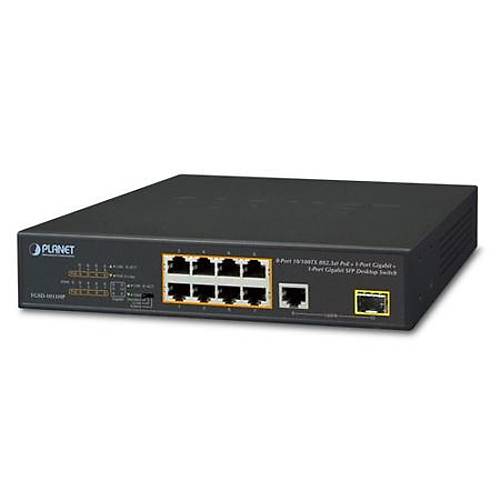

Yönetilemeyen Masaüstü Tip Switch (Unmanaged Desktop Switch)
8-Port 10/100TX IEEE 802.3at/af PoE+ Injector Port (Per port 30.8 watt) (PoE Güç Bütçesi maks. 120 Watt)
1-Port 10/100/1000T
1-Port 100/1000X SFP yuva
Physical Port- 8 10/100Mbps Fast Ethernet ports
- 1 10/100/1000BASE-T Gigabit Ethernet port
- 1 1000BASE-X mini-GBIC SFP interface
Power over Ethernet- Complies with IEEE 802.3af/at Power over Ethernet end-span
- Up to 8 IEEE 802.3af/2 IEEE 802.3at devices powered
- Supports PoE power up to 30 watts for each PoE port
- 120-watt PoE budget
- 8 ports supporting 52V DC power to PoE powered device (Ports 1 to 8)
- Hardware DIP switch for "Standard", "VLAN' and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in the standard mode
Switching- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 4K absolute MAC addresses
- Automatic address learning and address aging
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware- 9-inch desktop size, 1U height, mountable
- LED indicators for PoE ready/activity and LINK/ACT
- Fanless design

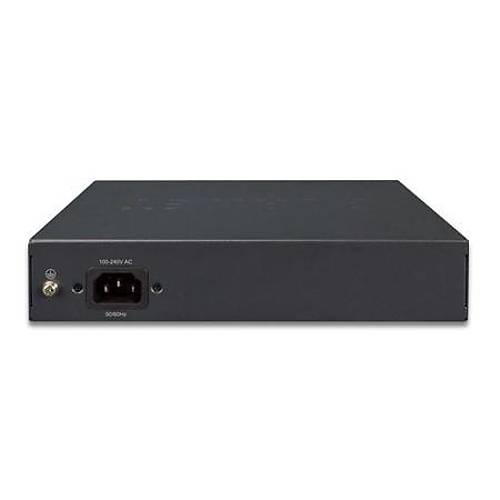

- Internal AC power supply
- Support Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Hardware Specifications |
10/100Mbps Ports | 8 10/100BASE-TX MDI/MDI-X RJ45 ports |
Gigabit Ports | 1 10/100/1000BASE-T MDI/MDI-X RJ45 port |
SFP Slot | 1 100/1000BASE-X SFP/mini-GBIC interface |
PoE Inject Port | 8-port with 802.3af/at PoE injector function (Ports 1 to 8) |
LED Display | System: Power (Green)
10/100BASE-TX RJ45 Interface: PoE (Orange, Ports 1 to 8) LNK/ACT (Green, Ports 1 to 8)
10/100/1000BASE-T RJ45 Interface: 1000Mbps LNK/ACT (Green, Port 9)
100/1000BASE-X SFP Interface: 1000Mbps LNK/ACT (Green, Port 10) |
DIP Switch | 100m distance in standard mode 250m distance in extend mode (based on the cable category) |
Switch Architecture | Store and Forward switch architecture |
MAC Address Table | 4K MAC address table with auto learning function |
Switch Fabric | 5.6Gbps |
Switch Throughput | 4.16Mpps @64bytes |
Maximum Packet Size | 9K bytes |
Flow Control | Back pressure for half duplex; IEEE 802.3x pause frame for full duplex |
Power Requirements | AC 100~240V, 2.5A max. |
Power Consumption | 135 watts, 463.2 BTU |
Dimensions (W x D x H) | 220 x 150 x 44 mm |
Weight | 1220g |
ESD Protection | Contact discharge of ±6KV DC Air discharge of ±8KV DC |
Surge Immunity | ±4KV |
Power over Ethernet |
PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Output | Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
PoE Power Budget | 120 watts |
Number of PDs, 7 watts | 8 |
Number of PDs, 15.4 watts | 8 |
Number of PDs, 30 watts | 4 |
Standard Conformance |
EMI Safety | CE, FCC |
Standard Compliance | IEEE 802.3 | Ethernet | IEEE 802.3u | Fast Ethernet | IEEE 802.3ab | Gigabit 1000BASE-T | IEEE 802.3z | Gigabit SX/LX | IEEE 802.3x | Flow Control | IEEE 802.3af | Power over Ethernet | IEEE 802.3at | Power over Ethernet Plus |
|
Environment |
Operating Environment | 0 ~ 50 degrees C |
Storage Environment | -10 ~ 70 degrees C |
Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
Diğer Özellikler |
Stok Kodu | PL-FGSD-1011HP |
Marka | PLANET |
Stok Durumu | Var |
Garanti (Yıl) | 2 |
4711605283106
