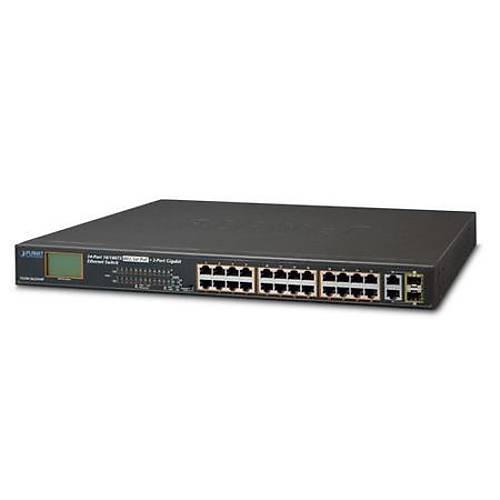

Planet PL-FGSW-2622VHP 24 x 10/100 PoE+ 2 Port Gigabyte 2 Port SFP 300W PoE Switch

Yönetilemeyen Switch (Unmanaged Switch)
24-Port 10/100Base-T IEEE 802.3at/af PoE+ injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 300 Watt)
24 x 10/100BASE-TX port
2 x 10/100/1000Base-T (combo port)
2 x 1000BASE-X mini-GBIC/SFP yuva (combo port)
LCD Ekranlı - PoE kullanımı ve sistem durumu bilgisi için


Physical Port

• 24-port 10/100BASE-TX Fast Ethernet RJ45 copper
• 2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP shared combo interfaces

Power over Ethernet

• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
• Up to 24 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 30.8 watts for each PoE port
• Each port supports 54V DC power to PoE Powered Device
• 300-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m with standard mode

Switching

• Hardware based 10/100Mbps or 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and back pressure for half duplex operation
• Integrates address look-up engine, supporting 4K absolute MAC addresses
• IEEE 802.1Q VLAN transparency
• Hardware DIP switch for “Standard” and “VLAN” mode selection, the “VLAN” mode for IP surveillance application
• Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
• Automatic address learning and address aging

Hardware

• 19-inch desktop size, 1U height, rack mountable

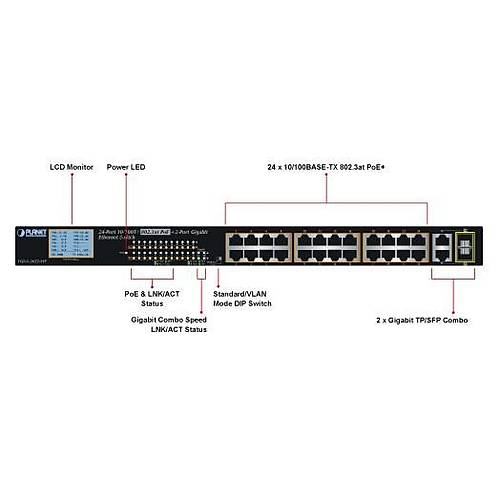

• LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
• LCD monitor for system status and PoE usage status display
• 2 silent fans to provide stable and efficient power performance
• Supports Contact Discharge of ±4KV DC and Air Discharge of ±6KV DC for Ethernet ESD protection
• Supports ±4KV Surge Immunity



Hardware Specifications
802.3af/802.3at PoE Injector Port	24
10/100BASE-TX MDI/MDIX Ports	24
10/100/1000BASE-T MDI/MDIX Ports	2 (Combo Port)
1000BASE-X SFP/mini-GBIC Slots	2 (Combo Port)
DIP Switch	1 for standard mode/VLAN mode operation
Switch Architecture	Store-and-Forward
Switch Fabric	8.8Gbps/non-blocking
Switch Throughput@64 bytes	6.54Mpps@64bytes
MAC Address Table	4K entries
Maximum Frame Size	1536 bytes
Flow Control	IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex
LED	System: Power (Green) 10/100BASE-TX RJ45 Interfaces: 10/100Mbps LNK/ACT (Green) PoE-in-Use (Orange) 10/100/1000BASE-T RJ45/SFP Interfaces: LNK/ACT (Green) 100/1000 (Green)
LCD Monitor	? Total PoE budget ? Total PoE usage ? Per port PoE usage ? PD light load protection/PD over load protection ? Short-circuit protection(SCP) ? Low voltage alarm, high voltage alarm Refresh PoE status display every 10 seconds
Dimensions (W x D x H)	233 x 440 x 44 mm (1U height)
Enclosure	Metal
Weight	3.3kg

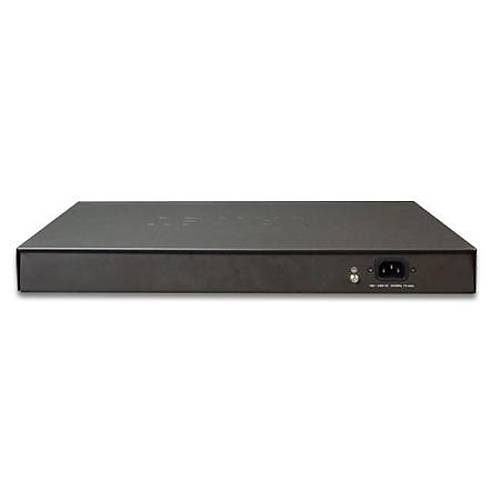

Power Requirements	AC 100~240V, 50/60Hz, 5A max.
Power Consumption/Dissipation	Max. 330 watts/1125 BTU
Thermal Fan	2
ESD Protection	Contact Discharge of ±4KV DC Air Discharge of ±6KV DC
Surge Immunity	±4KV
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	300 watts
Max. Number of Class 2 PDs	24
Max. Number of Class 3 PDs	23
Max. Number of Class 4 PDs	11
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
