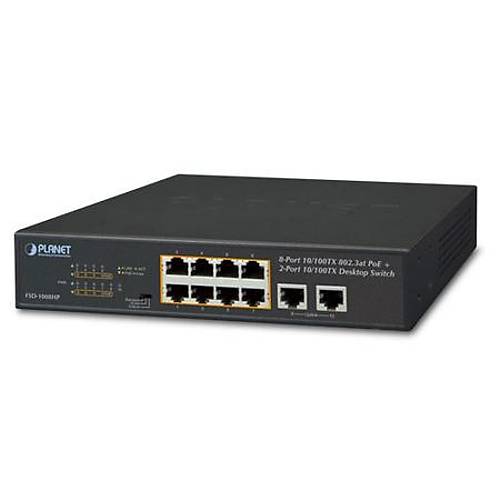

    Planet PL-FSD-1008HP 8 Port 10/100TX PoE+ 2 Port 10/100TX 120W Masaüstü PoE Switch

    Görsel 1
    Görsel 2
    Görsel 3
    Para_Puan : 27.053
    Fiyat:
    3.246,36 TL
    Havale / EFT:
    3.142,48 TL
    605,99 TL'den başlayan taksit seçenekleri için tıklayın.
    1
    Kargo Bedava

    Yönetilemeyen Masaüstü Tip Switch (Unmanaged Desktop Switch)
    8-Port 10/100TX IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt) (Port-1 ile Port-8 arası) (PoE Güç Bütçesi maks. 120 Watt)
    2-Port 10/100TX
    Physical Port
    • 10-port 10/100BASE-TX Fast Ethernet RJ45 copper
    • 8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)

    Power over Ethernet
    • Complies with IEEE 802.3at Power+ over Ethernet end-span PSE
    • Up to 8 ports of IEEE 802.3af/802.3at devices powered
    • Supports PoE power up to 30.8 watts for each PoE port
    • Each port supports 55V DC power to PoE powered device
    • 120-watt PoE budget
    • Auto detects powered device (PD)
    • Circuit protection prevents power interference between ports
    • Remote power feeding up to 100m in standard mode with 250m in extend mode

    Switching
    • Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
    • Flow control for full duplex operation and back pressure for half duplex operation
    • IEEE 802.1Q VLAN transparency
    • Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
    • Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

    Hardware
    • 9-inch desktop size, 1U height, rack mountable
    • LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
    • Fanless design
    • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

    Hardware Specifications
    Copper Port10 10/100BASE-TX MDI/MDIX Ports
    PoE Injector Port8-port with 802.3at/af PoE injector function with Port-1 to Port-8
    Switch ArchitectureStore-and-Forward
    Switch Fabric2Gbps/non-blocking
    Switch Throughput@64 bytes1.48Mpps@64 bytes
    MAC Address Table8K entries, automatic source address learning and aging
    Maximum Frame Size1522 bytes
    Flow ControlIEEE 802.3x pause frame for full-duplex
    Back pressure for half-duplex
    LEDSystem:
    • Power (Green)

    10/100BASE-TX RJ45 interfaces:
    • 10/100Mbps LNK/ACT (Green)

    PoE interfaces:
    • PoE-in-Use (Orange)
    DIP SwitchSelectable operation mode
    • Standard
    • VLAN
    • Extend
    Dimensions (W x D x H)220 x 150 x 43 mm (1U height)
    EnclosureMetal
    Weight1230 g
    Power RequirementsAC 100~240V, 50/60Hz, 2.5A max.
    Power Consumption/ DissipationSystem On: Max. 2.4 watts/8.1 BTU
    Ethernet Full Loading: Max. 5 watts/10.2 BTU
    PoE Full Loading: Max. 129 watts/440.1 BTU
    ESD ProtectionContact discharge of 4KV DC
    Air discharge of 6KV DC
    Thermal FanFanless
    Power over Ethernet
    PoE StandardIEEE 802.3af Power over Ethernet/PSE
    IEEE 802.3at Power over Ethernet Plus/PSE
    PoE Power Supply TypeEnd-span
    PoE Power OutputPer port 55V DC, 540mA. max. 30 watts
    Power Pin Assignment1/2(+), 3/6(-)
    PoE Power Budget120 watts
    Max. Number of Class 2 PDs8
    Max. Number of Class 3 PDs8
    Max. Number of Class 4 PDs4
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Standards ComplianceIEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3x Flow control and back pressure
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    Environment
    OperatingTemperature: 0 ~ 50 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
    StorageTemperature: -10 ~ 70 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)


    Diğer Özellikler
    Stok KoduPL-FSD-1008HP
    MarkaPLANET
    Stok DurumuVar
    Garanti (Yıl)2
    4711605283083
