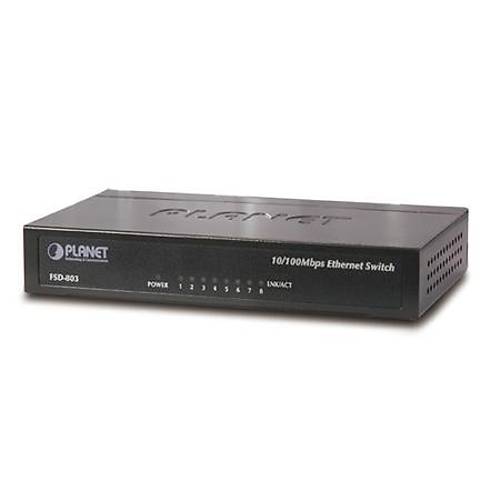

Unmanaged Switch 8-Port 10/100Base-T
• Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet standards
• 8 10/100Mbps Fast Ethernet ports
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Hardware based 10/100Mbps, half / full duplex , flow control and auto-negotiation
• IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
• Integrated address look-up engine, supports 2K absolute MAC addresses
• 448K bits packet buffer memory
• One power on/off button for energy saving
• Automatic address learning and address aging
• Supports auto MDI/MDI-X function
• Supports CSMA/CD protocol
• External power adapter 12V 0.5A
• FCC, CE class A compliant
| Hardware Specification |
| Hardware version | 3 |
| 10/100Base-TX Ports | 8 |
| LED Display | One for Power, One for Link / Act per port |
| Dimensions (W x D x H) | 160 x 80 x 28 mm |
| Weight | 325g |
| Power Requirements | DC 12V, 500mA |
| Power Consumption / Dissipation | 4.3 watts / 14.6 BTU |
| Switch Specification |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K |
| Packet buffer memory | 448K bits |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps |
| Standard Conformance |
| Standard | IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-TX Fast Ethernet
IEEE 802.3x Full-duplex Flow Control |
| Regulation Compliance | FCC Part 15 Class B CE |
| Environment |
| Temperature | Operating: 0~50 degrees C
Storage: -10~70 degrees C |
| Humidity | Operating: 5~90%
Storage: 5~90% (non-condensing) |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-FSD-803 |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
4711213680311
