    Planet PL-FTP-802 1000Base-Fx - 10/100Base-Tx Sc 2Km Poe Medıa Converter

    Planet PL-FTP-802 1000Base-Fx - 10/100Base-Tx Sc 2Km Poe Medıa Converter
    Görsel 1
    Para_Puan : 35.018
    Fiyat:
    4.202,10 TL
    Havale / EFT:
    4.055,03 TL
    812,41 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo Kargo Bedava

    Ürüne Oy Verin

    Satıcıya Danış

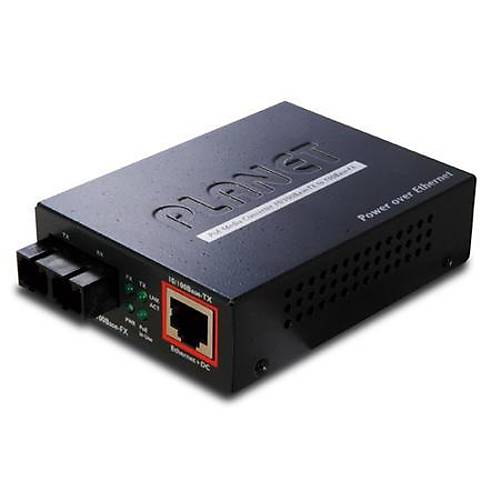

    PoE Media Converter
    100Base-FX to 10/100Base-TX (SC Multimode 2 km)
    IEEE 802.3af PoE

    • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3af Power over Ethernet standards
    • Auto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper port
    • IEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets loss
    • Provides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet port
    • Auto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation
    • 100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm, 62.5µm/125µm) on FTP-802
    • DIP-switch: LFP (Link Fault Pass-through) mode selection
    • Compact in size, easy to install
    • LED indicators for easy network diagnostics



    Interface
    Copper1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector function
    FiberFTP-802
    ?Multi-mode: 50/125µm or 62.5/125µm optical fiber
    Fiber Port Type (connector)FTP-802 : SC
    Cable DistanceFTP-802 : 2km
    Optical FrequencyFTP-802 : 1310nm
    Launch Power(dBm)FTP-802 : max.-14 min.-19.0
    Receive SensitivityFTP-802 : -34.5
    Maximum Input PowerFTP-802 : -14

    Power over Ethernet
    PoE StandardIEEE 802.3af Power over Ethernet
    Power OutputPoE 48V DC, max. 15.4 watts, 350mA
    Power Pin Assignment1/2(+) , 3/6(-)
    Hardware Specifications
    Switch ArchitectureStore-and-Forward
    Flow ControlBack pressure for half duplex mode
    IEEE 802.3x pause frame for full duplex mode
    LEDSystem: Power, Status
    FX / LNK: Data Active, Fiber Link
    TX / LNK: 10/100 Link / Active
    PoE in Use: Detects PSE Device
    Dimensions (H x W x D)26 x 70 x 97 mm
    Weight0.2 kg
    Power Supply48V DC, 0.4A external AC-to-DC adapter
    Operating Temperature0~50 degrees C
    Operating Humidity5~90% (non-condensing)
    LFP ModeEnable: when either TP port or FX port is broken, shut down the other port
    Disable: Link LED indicators is still on if connection of the other end is broken
    Standards Conformance
    Regulation ComplianceFCC Part 15 Class A, CE
    Protocols and Standards ComplianceIEEE 802.3 Ethernet
    IEEE 802.3u Fast Ethernet
    IEEE 802.3x Flow Control
    IEEE 802.3af Power over Ethernet
    CablesTP: Cat 5/5e UTP cable
    Fiber: Multi-mode: 50/125µm or 62.5/125µm optical fiber
    Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
    Diğer Özellikler
    Stok KoduPL-FTP-802
    MarkaPLANET
    Stok DurumuVar
    Garanti (Yıl)2
    4711213686221
