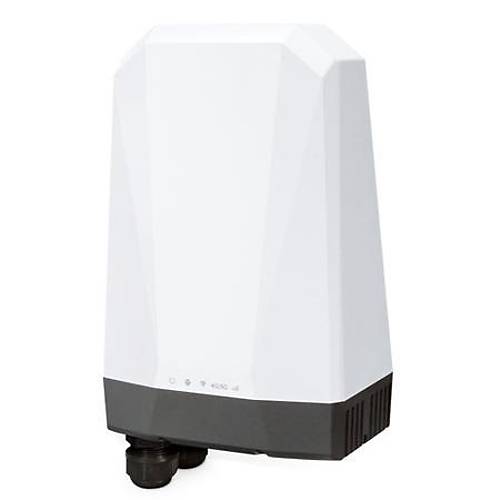

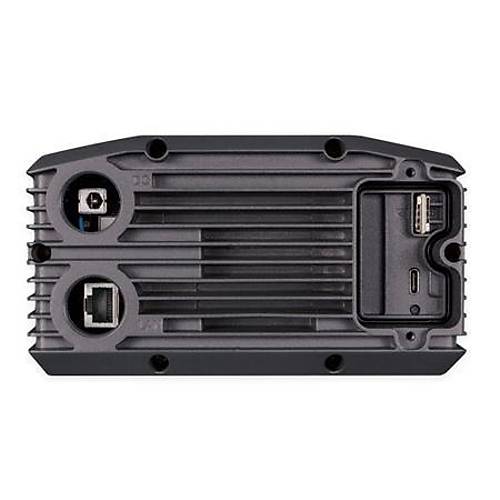

    Planet PL-FWA-2100-NR 1 Port Gigabit PoE PD 5G Endüstriyel Dış Mekan gateway

    Planet PL-FWA-2100-NR 1 Port Gigabit PoE PD 5G Endüstriyel Dış Mekan gateway Planet PL-FWA-2100-NR 1 Port Gigabit PoE PD 5G Endüstriyel Dış Mekan gateway
    Görsel 1
    Görsel 2
    Para_Puan : 247.323
    Fiyat:
    29.678,77 TL
    Havale / EFT:
    28.491,62 TL
    5.638,97 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo Sınırlı Sayıda Kargo Bedava

    Ürüne Oy Verin

    Satıcıya Danış

    Planet PL-FWA-2100-NR 1 Port Gigabit PoE PD 5G Endüstriyel Dış Mekan gateway

    Hardware Specifications
    Ethernet1 10/100/1000BASE-T RJ45 Ethernet LAN port
    SIM Interface2 Nano SIM card slots
    Cellular Antenna3 dBi internal antennas
    Reset Button< 5 sec: System reboot
    > 5 sec: Factory default
    EnclosureIP68 rating
    InstallationWall hanging / pole mounting
    LED IndicatorsSystem:
    ?PWR (Blue)
    ?Ethernet LNK/ACK (Blue)
    ?Wi-Fi (Blue)
    4G/5G
    ?5G (Blue)
    ?4G LTE/ 3G (Amber)
    Cellular Signal
    ?Excellent/Good (Blue)
    ?Normal/bad (Amber)
    Dimensions (W x D x H)150 x 100 x 240 mm
    Weight1020 g
    Power Requirements – DC48V DC IN, 0.5A, IEEE 802.3at PoE+ or
    12V DC IN, 1.5A
    Power Consumption18 W / 61.42 BTU
    Multi Band Support
    5G NR ModuleEAU:
    ?Sub-6: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78/n79
    ?LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
    ?LTE-FDD: B38/B40/B41/B42/B43
    ?WCDMA: B1/B5/B8

    NA:
    ?Sub-6: n2/n5/n7/n12/n14/n25/n30/n48/n41/n70/n66/n71/n77/n78
    ?LTE FDD: B2/B4/B5/B7/B12/B13/B29/B30/B66/B71
    ?LTE TDD: B41/B46(LAA)/B48
    GNSSGPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS
    Data Transmission Throughput2.4Gbps (DL)/500Mbps (UL) for NR
    1Gbps (DL)/200Mbps (UL) for LTE
    42Mbps (DL)/5.76Mbps (UL) for HSPA+
    Wireless
    StandardIEEE 802.11g/b/n 2.4GHz
    Band Mode2.4G Only
    Frequency Range2.4GHz
    ?America FCC: 2.412~2.462GHz
    ?Europe ETSI: 2.412GHz~2.472GHz
    Operating Channels2.4GHz
    ?America FCC: 1~11
    ?Europe ETSI: 1~13
    Channel Width20MHz
    Data Transmission RatesTransmit: 72 Mbps*
    Receive: 72 Mbps*

    *The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
    Transmission Power11b: 23dbm+/- 1.5dbm @11Mbps
    11g: 20dbm+/- 1.5dbm @54Mbps
    11g/n: 20dBm +/- 1.5dbm @MCS7, HT20
    17dBm@MCS7,HT40
    11a: 19.5dBm +/- 1.5dbm @54Mbps
    11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
    Encryption SecurityWEP (64/128-bit) encryption security
    WPA / WPA2 (TKIP/AES)
    WPA-PSK / WPA2-PSK (TKIP/AES)
    WPA3 presonal
    802.1x Authenticator
    Wireless AdvancedWi-Fi Multimedia (WMM)
    Auto channel selection
    Wireless output power management
    MAC address filtering
    Wireless AP Management
    Maximum Managed APs64
    Maximum AP Groups10
    Maximum APs per AP Group64
    Wireless Encryption/SecurityWEP encryption security
    WPA Personal / Enterprise (TKIP / AES)
    WPA2 Personal / Enterprise (TKIP / AES)
    WPA3 Personal
    Enterprise Class 802.1x
    AP Auto DiscoverySupports AP auto discovery
    SSID/RF ProfileAllows multiple wireless profiles creation and maintenance
    Cluster ManagementAllows AP grouping for bulk provisioning and batch upgrading
    Bulk AP ProvisioningSupports bulk AP provisioning with user-defined profiles
    Bulk AP Firmware UpgradeSupports bulk AP firmware upgrade
    Coverage Heat MapEnables real signal coverage of managed AP reflecting on the uploaded zone maps
    Status MonitoringReal-time traffic statistics reporting of AP and activated clients
    Graphical StatisticsReal-time and historical visibility of traffic flow [2]
    Profile Backup/RestorationProvides SSID, radio profile backup/restoration
    SSIDs-to-VLANs MappingAllows to configure SSIDs-to-VLANs mapping in supported APs

    Diğer Özellikler
    Stok KoduPL-FWA-2100-NR
    MarkaPLANET
    Stok DurumuVar
    4711605287494
