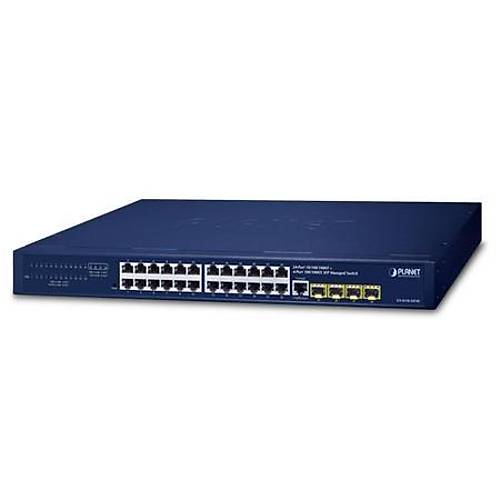

    Planet PL-GS-4210-24T4SR 24 Port Gigabit 4 Port SFP Yönetilebilir Ethernet Switch


    Hardware Specifications
    Copper Ports24 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
    SFP/mini-GBIC Slots4 x 100/1000BASE-X SFP interfaces with Port-25 to Port-28.
    Supports 100/1000Mbps dual mode and DDM
    Console1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
    Reset Button< 5 sec: System reboot
    > 5 sec: Factory default
    Dimensions (W x D x H)441 x 207 x 44 mm, 19-inch, 1U height
    WeightGS-4210-24T4S: 2.1kg
    GS-4210-24T4SR: 2.1 kg
    ESD ProtectionContact Discharge 4KV DC
    Air Discharge 8KV DC
    EnclosureMetal
    Power RequirementsGS-4210-24T4S:
    AC 100~240V, 50/60Hz, auto-sensing

    GS-4210-24T4SR:
    AC 100~240V, 50/60Hz, auto-sensing
    DC 36-72V
    Power Consumption / DissipationGS-4210-24T4S:
    19.3 watts (max.)/65BTU

    GS-4210-24T4SR:
    AC: 19.3 watts (max.)/65BTU
    DC: 19.2 watts (max.)/65BTU
    LEDSystem:
    Power (Green)
    10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
    1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
    100/1000Mbps SFP Interfaces (Port 25 to Port 28):
    1000 LNK/ACT (Green), 100 LNK/ACT (Orange)
    Switching
    Switch ArchitectureStore-and-Forward
    Switch Fabric56Gbps/non-blocking
    Switch Throughput@64Bytes41.67Mpps
    Address Table8K entries
    Shared Data Buffer4.1 megabits
    Flow ControlIEEE 802.3x pause frame for full-duplex
    Back pressure for half-duplex
    Jumbo Frame10K bytes
    Layer 2 Functions
    Port MirroringTX/RX/both
    Many-to-1 monitor
    Up to 4 sessions
    VLAN802.1Q tagged-based VLAN
    Up to 256 VLAN groups, out of 4094 VLAN IDs
    802.1ad Q-in-Q tunneling
    Voice VLAN
    Protocol VLAN
    Private VLAN (Protected port)
    GVRP
    Link AggregationIEEE 802.3ad LACP/Static Trunk
    Supports 8 trunk groups with 8 ports per trunk
    Spanning Tree ProtocolSTP, IEEE 802.1D Spanning Tree Protocol
    RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
    MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
    STP BPDU Guard, BPDU Filtering and BPDU Forwarding
    IGMP SnoopingIGMP (v2/v3) Snooping
    IGMP Querier
    Up to 256 multicast groups
    MLD SnoopingMLD (v1/v2) Snooping, up to 256 multicast groups
    QoS8 mapping ID to 8 level priority queues
    - Port number
    - 802.1p priority
    - 802.1Q VLAN tag
    - DSCP field in IP packet
    Traffic classification based, strict priority and WRR
    RingSupports ERPS, and complies with ITU-T G.8032
    Security Functions
    Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
    Port SecurityIEEE 802.1X – Port-based authentication
    Built-in RADIUS client to co-operate with RADIUS server
    RADIUS/TACACS+ user access authentication
    MAC SecurityIP-MAC port binding
    MAC filter
    Static MAC address
    Enhanced SecurityDHCP Snooping and DHCP Option82
    STP BPDU guard, BPDU filtering and BPDU forwarding
    DoS attack prevention
    ARP inspection
    IP source guard
    Management Functions
    Basic Management InterfacesRS232 to RJ45 Console
    Web browser
    Telnet
    SNMP v1, v2c
    Secure Management InterfacesSSHv2, TLS v1.2, SNMP v3
    System ManagementFirmware upgrade by HTTP/TFTP protocol through Ethernet network
    LLDP protocol
    SNTP
    PLANET Smart Discovery Utility
    PLANET NMS System/CloudViewer
    Event ManagementRemote/Local Syslog
    System log
    SNMP MIBsRFC 1213 MIB-II
    RFC 1215 Generic Traps
    RFC 1493 Bridge MIB
    RFC 2674 Bridge MIB Extensions
    RFC 2737 Entity MIB (Version 2)
    RFC 2819 RMON (1, 2, 3, 9)
    RFC 2863 Interface Group MIB
    RFC 3635 Ethernet-like MIB
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Standards ComplianceIEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX/100BASE-FX
    IEEE 802.3z Gigabit SX/LX
    IEEE 802.3ab Gigabit 1000T
    IEEE 802.3x flow control and back pressure
    IEEE 802.3ad port trunk with LACP
    IEEE 802.1D Spanning Tree protocol
    IEEE 802.1w Rapid Spanning Tree protocol
    IEEE 802.1s Multiple Spanning Tree protocol
    IEEE 802.1p Class of Service
    IEEE 802.1Q VLAN tagging
    IEEE 802.1x Port Authentication Network Control
    IEEE 802.1ab LLDP
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    RFC 768 UDP
    RFC 793 TFTP
    RFC 791 IP
    RFC 792 ICMP
    RFC 2068 HTTP
    RFC 1112 IGMP version 1
    RFC 2236 IGMP version 2
    RFC 3376 IGMP version 3
    RFC 2710 MLD version 1
    RFC 3810 MLD version 2
    ITU G.8032 ERPS Ring
    Environment
    OperatingTemperature: 0 ~ 50 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
    StorageTemperature: -20 ~ 70 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)

    Diğer Özellikler
    Stok KoduPL-GS-4210-24T4SR
    MarkaPLANET
    Stok DurumuVar
    4711605285698
