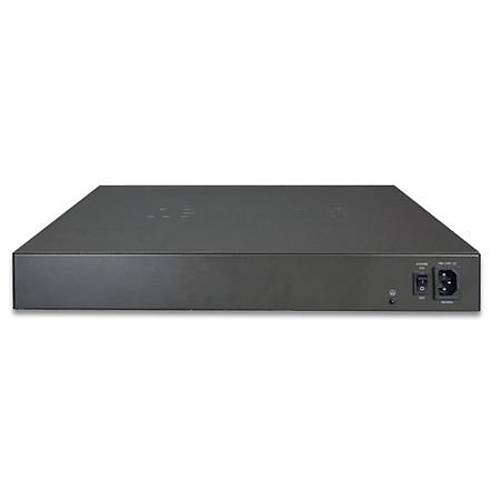

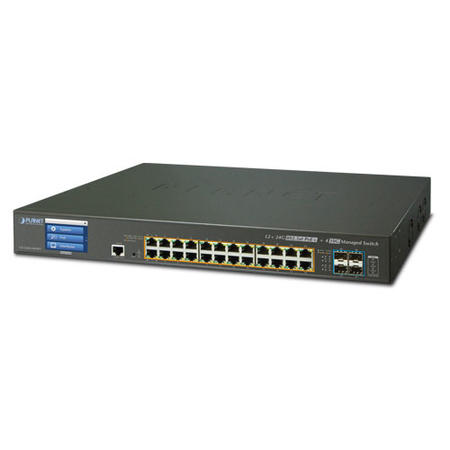

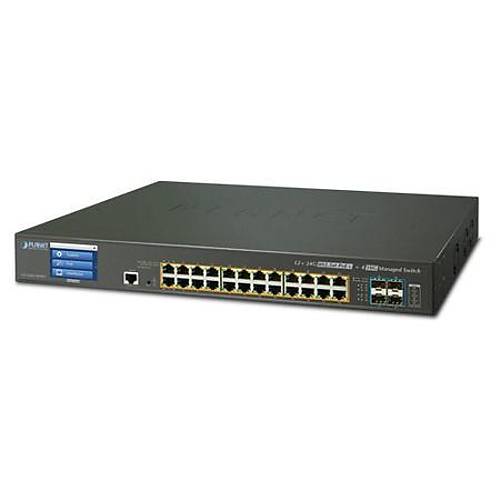

      Planet PL-GS-5220-24P4XVR 24 Port Gigabit PoE 4 Port SFP+ 400W PoE+ L2+ Yönetilebilir Switch

      Planet PL-GS-5220-24P4XVR 24 Port Gigabit PoE 4 Port SFP+ 400W PoE+ L2+ Yönetilebilir Switch
      Planet PL-GS-5220-24P4XVR 24 Port Gigabit PoE 4 Port SFP+ 400W PoE+ L2+ Yönetilebilir Switch
      Görsel 1
      Görsel 2
      Para_Puan : 79.640
      Fiyat:
      9.397,52 TL
      Havale / EFT:
      9.209,57 TL
      9397.52 www.genaybilgisayar.com
      Aynı Gün Kargo Sınırlı Sayıda

      L2+ Yönetilebilir Switch (L2+ Managed Switch)
      24-Port 10/100/1000T IEEE 802.3at/af PoE+ Injector Port (Per port 30.8 watt) (400 Watt PoE Bütçesi) 4-Port 10G SFP+
      LCD Dokunmatik Ekran ve Yedek Güç, 400W (LCD Touch Screen and Redundant Power, 400W)

      Physical Port

      • 24 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3af/at PoE+ injector
      • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
      • RJ45 console interface for switch basic management and setup

      Power over Ethernet
      - Total PoE power budget control
      - Per port PoE function enable/disable
      - PoE admin-mode control
      - PoE port power feeding priority
      - Per PoE port power limitation
      - PD classification detection
      - Temperature threshold control
      - PD alive check
      - PoE schedule
      • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
      • Backward compatible with IEEE 802.3af Power over Ethernet
      • Up to 24 ports of IEEE 802.3af/IEEE 802.3at devices powered
      • Supports PoE power up to 36 watts for each PoE port
      • Auto detects powered device (PD)
      • Circuit protection prevents power interference between ports
      • Remote power feeding up to 100 meters
      • PoE management

      Layer 2 Features
      - Broadcast/Multicast/Unknown unicast
      - IEEE 802.1Q tagged VLAN
      - Up to 255 VLANs groups, out of 4094 VLAN IDs
      - Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
      - Private VLAN Edge (PVE)
      - Protocol-based VLAN
      - MAC-based VLAN
      - Voice VLAN
      - IEEE 802.1D Spanning Tree Protocol
      - IEEE 802.1w Rapid Spanning Tree Protocol
      - IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
      - BPDU Guard
      - 802.3ad Link Aggregation Control Protocol (LACP)
      - Cisco ether-channel (static trunk)
      - Maximum 14 trunk groups, up to 4 ports per trunk group
      - Up to 80Gbps bandwidth (full duplex mode)
      • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
      • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
      • Storm Control support
      • Supports VLAN
      • Supports Spanning Tree Protocol
      • Supports Link Aggregation
      • Provides port mirror (many-to-1)
      • Port mirroring to monitor the incoming or outgoing traffic on a particular port
      • Loop protection to avoid broadcast loops

      Layer 3 Features
      • IP interfaces (Max. 8 VLAN interfaces)
      • Routing table (Max. 32 routing entries)
      • Routing Protocols (IPv4/IPv6 software static routing)

      Quality of Service
      - IEEE 802.1p CoS
      - TOS/DSCP/IP precedence of IPv4/IPv6 packets
      - IP TCP/UDP port number
      - Typical network application
      • Ingress Shaper and Egress Rate Limit per port bandwidth control
      • 8 priority queues on all switch ports
      • Traffic classification
      • Strict priority and Weighted Round Robin (WRR) CoS policies
      • Supports QoS and In/Out bandwidth control on each port
      • Traffic-policing on the switch port
      • DSCP remarking

      Multicast
      • Supports IGMP snooping v1, v2 and v3
      • Supports MLD snooping v1 and v2
      • Querier mode support
      • IGMP snooping port filtering
      • MLD snooping port filtering
      • Multicast VLAN Registration (MVR) support

      Security
      - IEEE 802.1x port-based/MAC-based network access authentication
      - Built-in RADIUS client to cooperate with the RADIUS servers
      - TACACS+ login users access authentication
      - RADIUS/TACACS+ users access authentication
      - IP-based Access Control List (ACL)
      - MAC-based Access Control List
      • Authentication
      • Access Control List
      • Source MAC/IP address binding
      • DHCP Snooping to filter untrusted DHCP messages
      • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
      • IP Source Guard prevents IP spoofing attacks
      • IP address access management to prevent unauthorized intruder

      Management
      - Console/Telnet Command Line Interface
      - Web switch management
      - SNMP v1, v2c, and v3 switch management
      - SSH/SSL secure access
      - 2.4-inch color LCD touch screen
      - Firmware upload/download via HTTP/TFTP
      - Reset button for system reboot or reset to factory default
      - Dual images
      - ICMPv6/ICMPv4 remote ping
      - Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
      • IPv4 and IPv6 dual stack management
      • Switch Management Interfaces
      • IPv6 IP address/NTP/DNS management
      • Built-in Trivial File Transfer Protocol (TFTP) client
      • BOOTP and DHCP for IP address assignment
      • System Maintenance
      • DHCP Relay
      • DHCP Option 82
      • User Privilege levels control
      • NTP (Network Time Protocol)
      • Link Layer Discovery Protocol (LLDP) and LLDP-MED
      • Network Diagnostic
      • SMTP/Syslog remote alarm
      • Four RMON groups (history, statistics, alarms and events)
      • SNMP trap for interface Link Up and Link Down notification
      • System Log
      • PLANET Smart Discovery Utility for deployment management
      • Smart fan with speed control

      Diğer Özellikler
      Stok KoduPL-GS-5220-24P4XVR
      MarkaPLANET
      Stok DurumuVar
      4711605282895
