Planet PL-GSD-1002M 8 Port 10/100/1000Mbps Yönetilebilir Masaüstü Ethernet Switch

Yönetilebilir Gigabit Masaüstü Tip Switch (Managed Gigabit Desktop Switch)
8-Port 10/100/1000Mbps

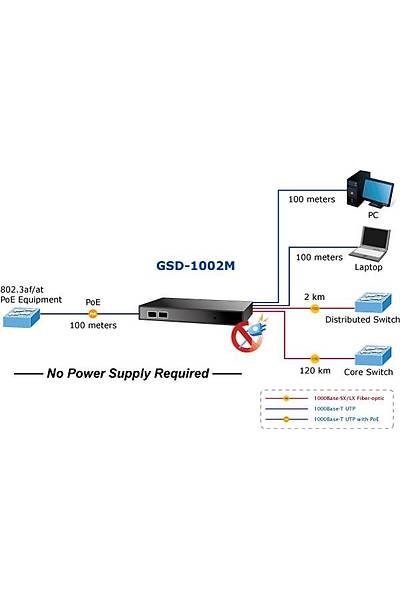

Dual Power : 1 x (Port 8) IEEE 802.3af/at PoE+ 48~56V DC in-line power, 12V DC güç adaptörü takılabilir
2-Port 100/1000X mini-GBIC/SFP yuva

Physical Ports


• 8 10/100/1000Mbps Gigabit Ethernet ports with auto-MDI/MDI-X supported
• 1 port (Port 8) supports 802.3af/at PoE 48~56V DC in-line power
• 2 100/1000Base-X mini-GBIC/SFP slots

Installation


- 802.3af/at PoE In

- 12V DC power adapter acceptable

• Dual Power Design

Layer 2 Features


- IEEE 802.1Q tagged VLAN

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Protocol VLAN

- Voice VLAN

- Private VLAN

- Management VLAN

- GVRP

- STP (Spanning Tree Protocol)

- RSTP (Rapid Spanning Tree Protocol)

- MSTP (Multiple Spanning Tree Protocol)

- STP BPDU Guard, BPDU Filtering and BPDU Forwarding

- IEEE 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (Static Trunk)

- Maximum 8 trunk groups, up to 8 ports per trunk group

• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Supports VLAN
• Supports Spanning Tree Protocol
• Supports Link Aggregation
• Provides Port Mirror (many-to-1)
• Loop protection to avoid broadcast loops

Quality of Service


- Broadcast / Unknown-Unicast / Unknown-Multicast

- IEEE 802.1p CoS

- TOS / DSCP / IP Precedence of IPv4/IPv6 packets

• Ingress / Egress Rate Limit per port bandwidth control
• Storm Control support
• Traffic classification
• Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast


• Supports IGMP Snooping v2 and v3
• Supports MLD Snooping v1 and v2
• IGMP Querier mode support
• IGMP Snooping port filtering
• MLD Snooping port filtering

Security


- IEEE 802.1X Port-based network access authentication

- Built-in RADIUS client to co-operate with the RADIUS servers

- RADIUS / TACACS+ login user access authentication

MAC-based ACL

- Static MAC

- MAC Filtering

• Authentication
• Access Control List
• IPv4 / IPv6 IP-based ACL
• MAC Security
• Port Security for Source MAC address entries filtering
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• DoS Attack Prevention
• SSH / SSL

Management


- Web switch management

- Telnet Command Line Interface

- SNMP v1, v2c and v3

- SSH / SSL secure access

- Configuration upload / download through Web interface

- Dual Images

- Hardware reset button for system reboot or reset to factory default

• IPv4 and IPv6 dual stack management
• Switch Management Interface
• User Privilege Levels Control
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• SNTP Network Time Protocol
• Cable Diagnostics
• Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
• SNMP trap for interface Link Up and Link Down notification
• Event message logging to remote Syslog server
• Four RMON groups (history, statistics, alarms, and events)
• PLANET Smart Discovery Utility









Diğer Özellikler
Stok Kodu	PL-GSD-1002M
Marka	PLANET
Stok Durumu	Var

4711605280082
