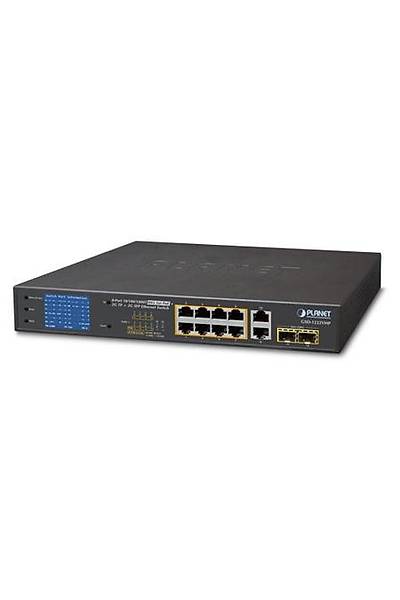

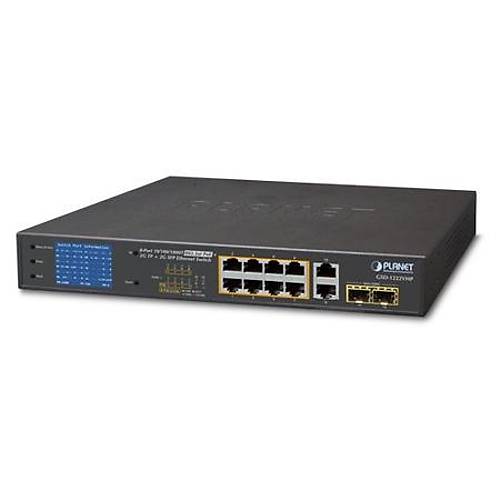

Planet PL-GSD-1222VHP 8 Port Gigabit PoE 2 Port 1000Base-T SFP 120W PoE Switch
Para_Puan : 14.784
| Fiyat | : | 1.744,51 TL |
| Havale / EFT | : | 1.709,62 TL |
Yönetilemeyen Switch (Unmanaged Switch)
8-Port 10/100/1000Base-T IEEE 802.3at/af PoE+ injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 120 Watt)
2-Port 10/100/1000T
2 x 1000Base-X SFP yuva
LCD Ekranlı - PoE kullanımı ve sistem durumu bilgisi için
8-Port 10/100/1000Base-T IEEE 802.3at/af PoE+ injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 120 Watt)
2-Port 10/100/1000T
2 x 1000Base-X SFP yuva
LCD Ekranlı - PoE kullanımı ve sistem durumu bilgisi için
Physical Port
Power over Ethernet
Smart LCD
Switching
Hardware
- 8-port 10/100/1000BASE-T Gigabit RJ45 copper
- 2 1000BASE-X mini-GBIC SFP interfaces
- 2 10/100/1000BASE-T TP interfaces
Power over Ethernet
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 32 watts for each PoE port
- Each port supports 54V DC power to PoE powered device
- 120-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode and 250m in extend mode
Smart LCD
- The LCD switch features “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
- The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
- Power low-voltage, power over-voltage and PSE over-temperature protection
- Screen saver, fan control, factory default and save configuration
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD alive check
Switching
- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- 9216bytes packet size
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- IEEE 802.1Q VLAN transparency
- Automatic address learning and address aging
Hardware
- 12-inch desktop size, 1U height, rack mountable
- 2-inch color LCD with smart management functions
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- 1 silent fan to provide stable and efficient power performance
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
- Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
- Supports ±6KV surge immunity
| Hardware Specifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 802.3af/802.3at PoE Injector Port |
