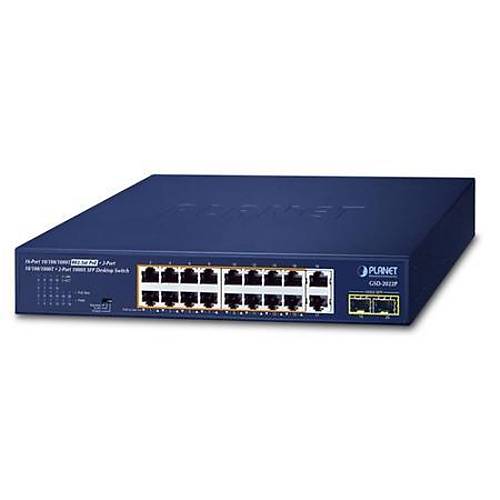

Planet PL-GSD-2022P 16 Port Gigabit PoE+ 2 Port SFP 2 Port Gigabit PoE Switch
16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Desktop Switch
| Hardware Specifications |
|---|
| 10/100/1000BASE-T Copper Ports | 18 auto MDI/MDIX |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| DIP Switch | Selectable operation mode
? Standard
? VLAN
? Extend |
| LED Indicators | System
Power (Green)
10/100/1000T RJ45 Interfaces
10/100/1000 LNK / ACT (Green)
PoE-in-Use(Amber)
1000X SFP Interfaces
1000 LNK / ACT (Green) |
| Dimensions (W x D x H) | 280 x 180 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 1810g |
| Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 201 watts/686 BTU |
| Thermal Fan | 1 |
| ESD Protection | Contact discharge of ±6KV DC,
Air discharge of ±8KV DC |
| Surge Protection | ±6KV |
| Installation | Desktop or rack-mount installation |
| Switching |
|---|
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 40Gbps/non-blocking |
| Switch Throughput@64bytes | 29.76Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| Power over Ethernet |
|---|
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Injector Ports | 16 |
| PoE Power Supply Type | End-span/Mid-span: 1/2/4/5 (+), 3/6/7/8 (-) |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 185 watts |
| Number of PDs, 7 watts | 16 |
| Number of PDs, 15.4 watts | 12 |
| Number of PDs, 30 watts | 6 |
| Standards Conformance |
|---|
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet |
| Environment |
|---|
| Operating | Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-GSD-2022P |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
4711605285582
