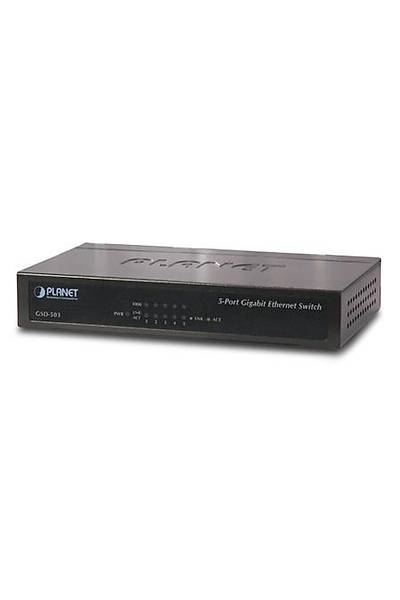

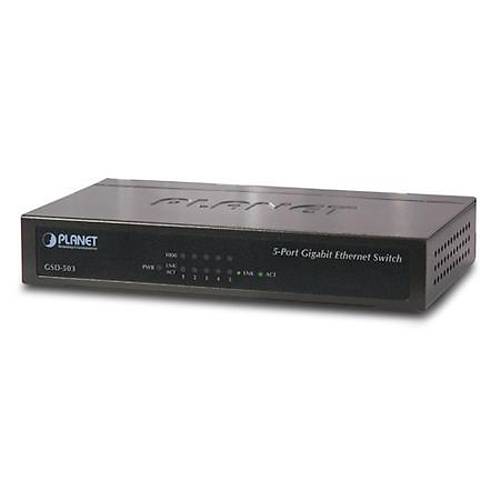

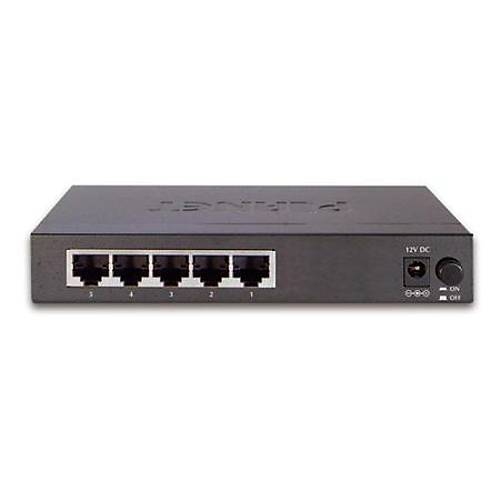

Planet PL-GSD-503 5 Port 10/100/1000Base-T Gigabit Masaüstü Ethernet Switch

Planet PL-GSD-503 5 Port 10/100/1000Base-T Gigabit Masaüstü Ethernet Switch Planet PL-GSD-503 5 Port 10/100/1000Base-T Gigabit Masaüstü Ethernet Switch Planet PL-GSD-503 5 Port 10/100/1000Base-T Gigabit Masaüstü Ethernet Switch
Görsel 1
Görsel 2
Görsel 3
Para_Puan : 14.079
Fiyat:
1.689,48 TL
Havale / EFT:
1.638,80 TL
326,63 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

Ürüne Oy Verin

Satıcıya Danış

Unmanaged Switch 5-Port 10/100/1000Base-T


RJ-45 Interface
  • 5-Port 10/100/1000Mbps Gigabit Ethernet
  • Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
  • Supports auto MDI/MDI-X function

Switching

  • Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrated address look-up engine, supporting 2K absolute MAC addresses
  • 9K Jumbo packet size
  • Power saving ability for Green networking
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Hardware

  • Made of metal, desktop size and wall-mount design
  • LED indicators for system power, per port 1000 & Link / Act
  • 5V DC, 1A external power adapter
  • FCC, CE Class B compliant






















Hardware Specification
Hardware Version7
10/100/1000Base-T Ports5 Auto MDI/MDIX ports
LED DisplayOne for Power, Two for 1000 & Link / Act per port
EnclosureMetal
Dimensions (W x D x H)86 x 155 x 26 mm
Weight (g)317g
Power Requirements (External power adapter)5V DC, 1A
Power Consumption (100M Full operating)3.3 watts / 11 BTU
Switch Specification
Switch Processing SchemeStore-and-Forward
Address Table2K
Flow ControlBack pressure half duplex
IEEE 802.3x pause frame full duplex
Switch fabric10Gbps
Throughput (packet per second)7.44Mpps
Jumbo packet size9K
Standards Conformance
Standards ComplianceIEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Regulation ComplianceFCC Part 15 Class B, CE
Environments
Diğer Özellikler
Stok KoduPL-GSD-503
MarkaPLANET
Stok DurumuVar
Garanti (Yıl)2
4711213682339
