Unmanaged Switch
5-Port 10/100/1000BASE-T
1-Port 1000BASE-X SFP yuva
DC 5V, 1A harici güç adaptörü dahil
- External power adapter 5V DC, 1.0A
- Dual Energy-saving technology
- - Link down power saving
- - Intelligent scales power based on cable length
- Complies with IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-X
- IEEE 802.3x, full-duplex flow control compliant; back-pressure, half-duplex flow control

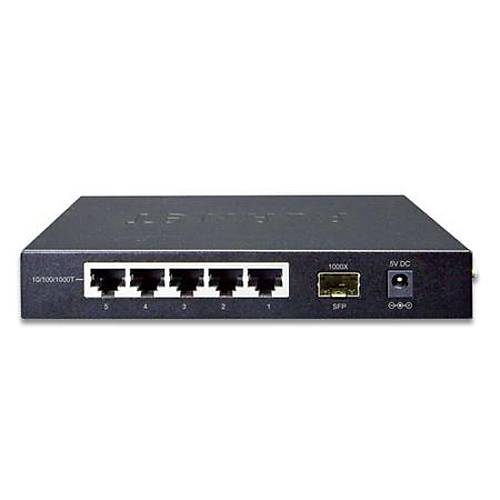

- Five 10/100/1000Mbps Gigabit Ethernet ports
- One SFP port
- Per port auto-MDI, MDI-X detection
- 2K MAC address table auto-aging
- 9K jumbo packet size support
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Non-blocking, Store and Forward switching architecture
- Automatic source address learning and aging
- Power saving ability for Green networking
- Compact size, wall-mountable design
- Metal case, good for heat sinking
- Easy installation; ideal solution for space-limited locations
| Hardware Specifications |
| Ports | 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slot | 1 1000BASE-X |
| Dimension (W x D x H) | 162 x 102 x 28 mm |
| Weight | 398g |
| Power Requirement | DC 5V, 1A external power |
| Power Consumption | System on: Max. 0.6 watts/2.04 BTU @ DC 5V
Ethernet Full Loading: Max. 4.1 watts/13.99 BTU @ DC 5V |
| Enclosure | Metal |
| Switch Specifications |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Shared Data Buffer | 1.5Mbits |
| Flow Control | Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 12Gbps |
| Throughput (packet per second) | 8.9Mpps |
| Jumbo Packet Size | 9K |
| Standards Conformance |
| Standards Compliance | IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Fiber Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment |
| Temperature | Operating: 0~50 degrees C
Storage: -40~70 degrees C |
| Humidity | Operating: 10~90% (non-condensing)
Storage: 5~90% (non-condensing) |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-GSD-603F |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
