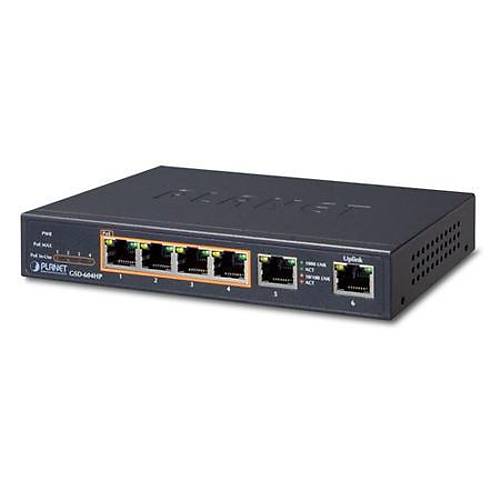

Planet PL-GSD-604HP 4 Port Gigabit PoE+ 2 Port Gigabit 55W PoE+ Masaüstü Switch

Yönetilemeyen Masaüstü Tip Switch (Unmanaged Desktop Switch)
4-port 10/100/1000T IEEE 802.3at/af PoE+ injector (Per port 30 watt) (PoE Güç Bütçesi maks. 55 Watt)
2-port 10/100/1000T


RJ45 Interface

• 6 10/100/1000Mbps Gigabit Ethernet ports
• 4 ports support 54V DC power to PoE powered device

Power over Ethernet

• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
• Up to 4 IEEE 802.3af/at devices powered
• Supports PoE power up to 30 watts for each PoE port
• 55-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m

Switching

• Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and back pressure for half duplex operation
• 9216 bytes jumbo packet size support
• Integrates address look-up engine, supporting 8K absolute MAC addresses
• Automatic address learning and address aging
• Supports port-based VLAN and loop protection

Hardware

• LED indicators for PoE ready and LINK/ACT
• One 55V DC power jack



Hardware Specifications
Network Connector	6-port RJ45 for 10/100/1000BASE-T, auto MDI / MDIX
PoE Inject Port	4-port with 802.3af/at PoE injector function (port 1 to port 4)
LED Display	System: Power (Green) Per PoE port: PoE (Orange, port 1 to port 4) PoE max. (Orange) Ethernet port: 1000 LNK (Green) 10/100 LNK (Orange)
Thermal Fan	Fanless design
Switch Architecture	Store and Forward switch architecture
MAC Address Table	8K MAC address table with auto learning function
Switch Fabric	12Gbps
Switch Throughput	8.92Mpps @64 bytes
Jumbo Packet	9216 bytes
Flow Control	Back pressure for half-duplex IEEE 802.3x pause frame for full-duplex
Power Requirements	55V DC, 1.1A
ESD Protection	6kV DC
Power Consumption	Max. 60 watts, 204.6 BTU
Dimensions (W x D x H)	160 x 92.5 x 28 mm
Weight	374g
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Output	Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget	55 watts
Standard Conformance
EMI Safety	FCC Class B, CE
Standard Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Environment
Operating Environment	0 ~ 50 degrees C
Storage Environment	-10 ~ 70 degrees C
Operating Humidity	5 ~ 95%, relative humidity, non-condensing
Storage Humidity	5 ~ 95%, relative humidity, non-condensing
