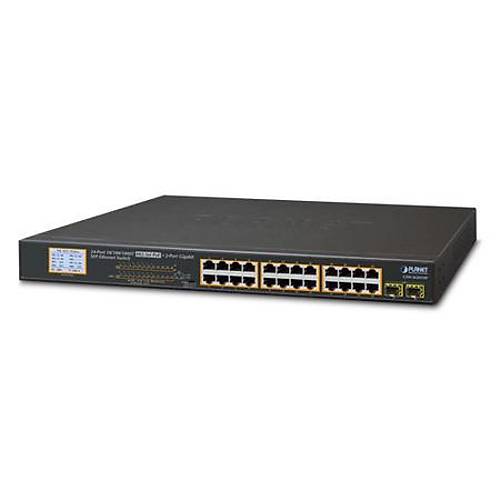

Planet PL-GSW-2620VHP 24 Port Gigabit PoE+ 2 Port 1000FX SFP 300W PoE Yönetilebilir Switch

Yönetilemeyen Switch (Unmanaged Switch)
24-Port 10/100/1000Base-T IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 300 Watt)
2-Port 1000X SFP yuva
LCD Ekranlı - PoE kullanımı ve sistem durumu bilgisi için


Physical Port

• 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
• 2 1000BASE-X mini-GBIC SFP interfaces

Power over Ethernet

• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE

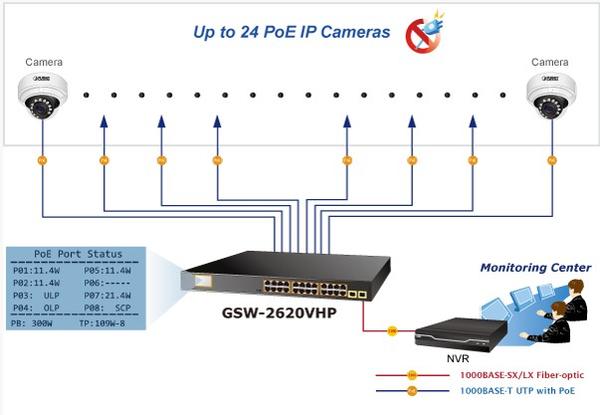

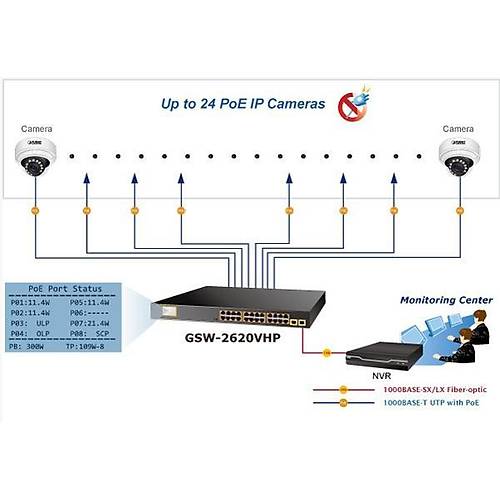

• Up to 24 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 30.8 watts for each PoE port
• Each port supports 52V DC power to PoE powered device
• 300-watt PoE budget
• Auto detects powered device
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m in standard mode and 250m in extend mode

Switching

• Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and back pressure for half duplex operation
• IEEE 802.1Q VLAN transparency
• Hardware DIP switch for Standard, VLAN and Extend mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
• Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

Hardware

• 19-inch desktop size, 1U height, rack mountable
• LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
• LCD monitor for system status and PoE usage status display
• 2 silent fan to provide stable and efficient power performance



Hardware Specifications
10/100/1000BASE-T MDI/MDIX Ports	24
1000BASE-X SFP Interfaces	2
PoE Injector Port	24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
Switch Architecture	Store-and-Forward
Switch Fabric	52Gbps/non-blocking
Switch Throughput@64 bytes	38.7Mpps@64Bytes
MAC Address Table	8K entries, automatic source address learning and aging
Maximum Frame Size	9K bytes
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
LED	System: Power (Green) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Orange) 1000Mbps LNK/ACT (Green) 1000BASE-X SFP Interfaces: 1000Mbps LNK/ACT (Green) PoE Interfaces: PoE-in-Use (Orange)
LCD Monitor	■ PoE loading of each port ■ Total PoE power usage ■ Total PoE budget ■ System status, such as overload, low voltage, over voltage and high temperature
DIP Switch	Selectable operation mode ■ Standard ■ VLAN ■ Extend + VLAN
Dimensions (W x D x H)	233 x 440 x 44 mm (1U height)
Enclosure	Metal
Weight	3.4kg

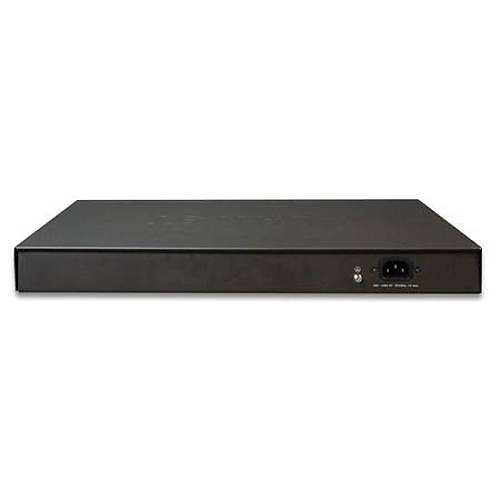

Power Requirements	AC 100~240V, 50/60Hz, 5A max.
Power Consumption/Dissipation	Max. 330 watts/1132 BTU
Thermal Fan	2
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 52V DC, 600mA. max. 30 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	300 watts
Max. Number of Class 2 PDs	24
Max. Number of Class 3 PDs	23
Max. Number of Class 4 PDs	11
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
