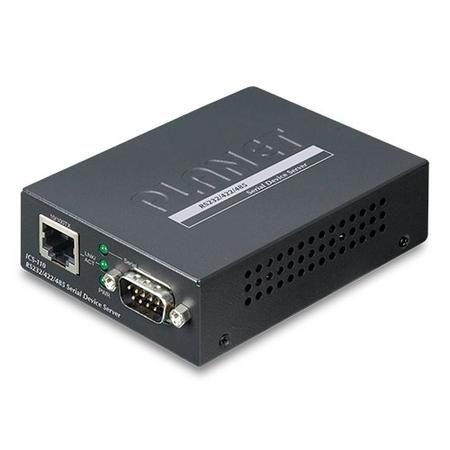

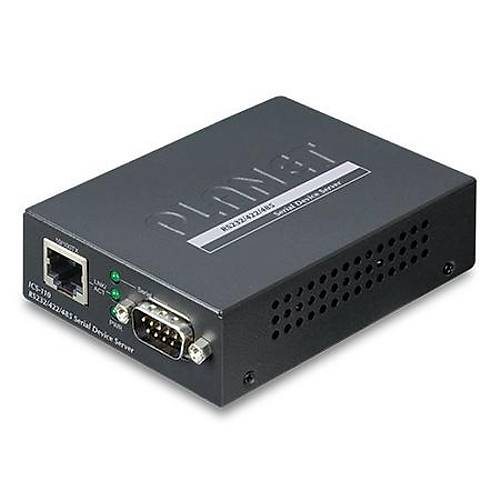

Planet PL-ICS-110 1 Port 100 Mt RS232/422/485 RJ45 Serial Dönüştürücü

Planet PL-ICS-110 1 Port 100 Mt RS232/422/485 RJ45 Serial Dönüştürücü Planet PL-ICS-110 1 Port 100 Mt RS232/422/485 RJ45 Serial Dönüştürücü
Görsel 1
Görsel 2
Para_Puan : 45.348
Fiyat:
5.441,75 TL
Havale / EFT:
5.278,50 TL
Aynı Gün Kargo Kargo Bedava

Ürüne Oy Verin

Satıcıya Danış

PLANET PL-ICS-110 1 Port 100 Mt RS232/422/485 RJ45 Serial Dönüştürücü


Serial Port1 x DB9 male
Serial StandardsRS232/RS422/4-wire RS485/2-wire RS485
Baud Rate (Data Rate)50bps to 921Kbps
Data Bits5, 6, 7, 8
Stop Bit1, 1.5, 2
Parity TypeOdd, Even, None, Space, Mark
Flow ControlRTS/CTS and DTR/DSR (RS232 only)
XON/XOFF
SignalsRS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GND

Ethernet Ports1 x RJ45
Standard10/100BASE-TX
Distance100m
ESD Protection6KV

Management InterfacesWeb management
Telnet Console management
Windows-based VCOM Utility management
SNMPv1, v2c / SNMP Trap
UNI-NMS monitoring
PLANET Smart Discovery Utility
IP VersionIPv4 and IPv6
Operation Mode? TCP Server / TCP Client
? UDP Client
? Virtual COM
? RFC2217
? Telnet Server
? Pair Connection – Remote (Slave)
? Pair Connection – Local (Master)
? Modbus converter server / client
Virtual COM Utility Platform SupportsWindows-based Only:
?Windows XP
?Windows Server 2003
?Windows 7
?Windows Server 2008
?Windows 8 (Must install the latest version of WinPcap)
?Windows Server 2012 (Must install the latest version of WinPcap)
?Windows 10
Fault AlarmRecord: System log / SNMP trap
TimeNTP
SecurityAccessible IP (white list)
SNMPSNMP v1 and v2c


Diğer Özellikler
Stok KoduPL-ICS-110
MarkaPLANET
Stok DurumuVar
Garanti (Yıl)2
