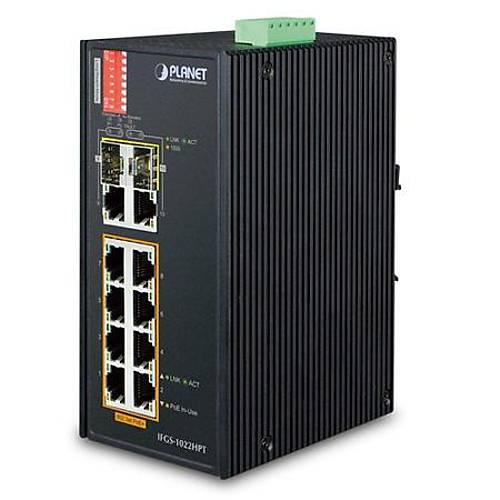

Planet PL-IFGS-1022HPT 8 Port 10/100TX PoE 2 Port 1000Base-SX/LX/BX SFP 240W PoE+ Switch

Endüstriyel Tip Yönetilemeyen PoE+ Switch (Industrial Unmanaged PoE+ Switch)
8-Port 10/100TX IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 240 watt)
2-Port 1000Base-SX/LX/BX SFP/mini-GBIC combo yuva (Port-9 ve Port-10)
Konsol port
IP30, -40~75 Derece C


Physical Port

• Eight 10/100BASE-TX Fast Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Port-1 to Port-8)
• Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
• Two 1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-9 and Port-10)

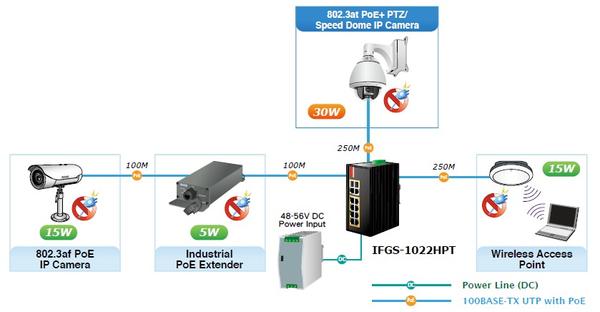

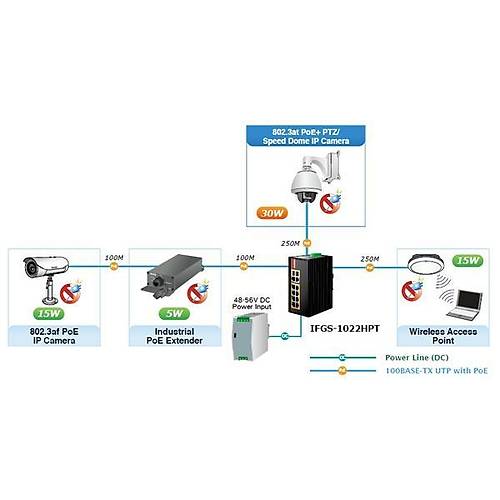

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• 240-watt PoE budget
• Supports PoE power up to 30 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters

Industrial Case and Installation

• IP30 metal case
• DIN rail and wall-mount design
• 48~56V DC, redundant power with polarity reverse protect function
• Supports 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

Switching

• Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 16K MAC address table size
• 10K jumbo frame
• IEEE 802.1Q VLAN transparency
• Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps
• Automatic address learning and address aging
• Supports CSMA/CD protocol



Hardware Specifications
Fast Ethernet Copper Ports	Eight 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Port-1 to Port-8)
Gigabit Ethernet Copper Ports	Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Port-9 and Port-10)
SFP/mini-GBIC Slots	Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10)
PoE Injector Port	Eight ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8)
Switch Architecture	Store-and-Forward
Switch Fabric	5.6Gbps/non-blocking
Switch Throughput@64 bytes	4.1Mpps @64 bytes
MAC Address Table	16K entries
Shared Data Buffer	4Mb SRAM
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	10 Kbytes
DIP Switch (Port-1 to Port-8)	Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps
LED	3 x LED for System and Power: 　■ Green: DC Power 1 　■ Green: DC Power 2 　■ Red : Power Fault Alarm 2 x LED for PoE Copper Port (Port-1~Port-8): 　■ Green: LNK/ACT (10/100Mbps) 　■ Orange: PoE-In-Use 2 x LED for 10/100/1000T Copper Port (Port-9~Port-10): 　■ Green: LNK/ACT 　■ Orange: 1000 2 x LED for per mini-GBIC interface (Port-9~Port-10) 　■ Orange: LNK/ACT 　■ Green: 1000
Connector	Removable 6-pin terminal block 　■ Pin 1/2 for Power 1 　■ Pin 3/4 for power fault alarm 　■ Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
Power Requirements	48~56V DC, 5.5A (max.) (>51V DC for PoE+ output recommended)
Power Consumption/ Dissipation	6.4 watts, 21BTU (Standby without PoE function) at DC 56V power input 8.2 watts, 27BTU (Full loading without PoE function) at DC 56V power input 241 watts, 832BTU (Full loading with PoE function) at DC 56V power input
Dimensions (W x D x H)	72 x 107 x 161 mm
Weight	1034g
ESD Protection	6KV DC
Enclosure	IP30 aluminum case
Installation	DIN-rail kit and wall-mount kit
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Output	IEEE 802.3af Standard - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 51V~56V DC (depending on the power supply), max. 30 watts
PoE Power Budget	Dual power input: maximum 240W (depending on power input)
Max. Number of Class 2 PDs	8
Max. Number of Class 3 PDs	8
Max. Number of Class 4 PDs	8
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)
