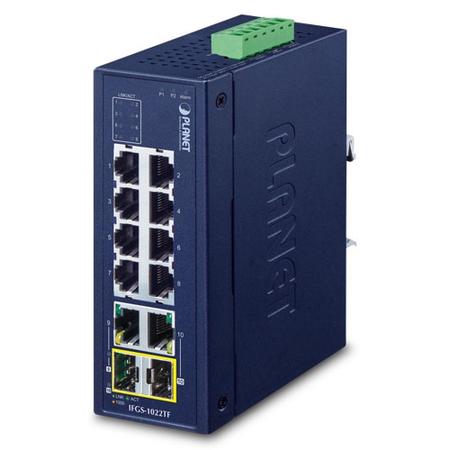

      • Planet PL-IFGS-1022TF 8 Port 10/100Tx 2 Port Gigabit 2 Port SFP Endüstriyel Switch

      Planet PL-IFGS-1022TF 8 Port 10/100Tx 2 Port Gigabit 2 Port SFP Endüstriyel Switch Planet PL-IFGS-1022TF 8 Port 10/100Tx 2 Port Gigabit 2 Port SFP Endüstriyel Switch
      Görsel 1
      Görsel 2
      Para_Puan : 49.092
      Fiyat:
      5.891,05 TL
      Havale / EFT:
      5.714,32 TL
      1.099,66 TL'den başlayan taksit seçenekleri için tıklayın.
      1
      Kargo Bedava

      Ürüne Oy Verin

      Satıcıya Danış

      Planet PL-IFGS-1022TF 8 Port 10/100Tx 2 Port Gigabit 2 Port SFP Endüstriyel Switch


      Hardware Specifications
      Fast Ethernet Copper Ports8 x 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
      Gigabit Ethernet Copper Ports2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
      (shared with Port-9 and Port-10)
      SFP Slots2 x 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10)
      EnclosureIP30 metal case
      InstallationDIN-rail kit and wall-mount kit
      ConnectorRemovable 6-pin terminal block for power input
      Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
      AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
      Dimensions (W x D x H)50 x 87.8 x 135 mm
      Weight536g
      Power RequirementsDual 9~48V DC
      24V AC
      Power ConsumptionMax. 7.2 watts/24.6BTU
      ESD Protection6KV DC
      Switching Specifications
      Switch ArchitectureStore-and-Forward
      Switch Fabric5.6Gbps (non-blocking)
      Throughput (packet per second)4.16Mpps@ 64 bytes
      Address Table16K entries, automatic source address learning and aging
      Shared Data Buffer4Mbits
      Flow ControlIEEE 802.3x pause frame for full-duplex
      Back pressure for half-duplex
      Jumbo Frame16K bytes
      Standards Conformance
      Regulatory ComplianceFCC Part 15 Class A, CE
      Stability TestingIEC60068-2-32 (free fall)
      IEC60068-2-27 (shock)
      IEC60068-2-6 (vibration)
      Standards ComplianceIEEE 802.3 10BASE-T
      IEEE 802.3u 100BASE-TX
      IEEE 802.3ab Gigabit 1000T
      IEEE 802.3z Gigabit SX/LX
      IEEE 802.3x flow control and back pressure
      IEEE 802.1p Class of Service
      IEEE 802.3az Energy Efficient Ethernet (EEE)
      Environment
      Operating Temperature-40 ~ 75 degrees C
      Storage Temperature-40 ~ 85 degrees C
      Humidity5 ~ 95% (non-condensing)
      Ordering Information

      IFGS-1022TF

      		Industrial 8-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch (-40~75 degrees C)

      Diğer Özellikler
      Stok KoduPL-IFGS-1022TF
      MarkaPLANET
      Stok DurumuVar
