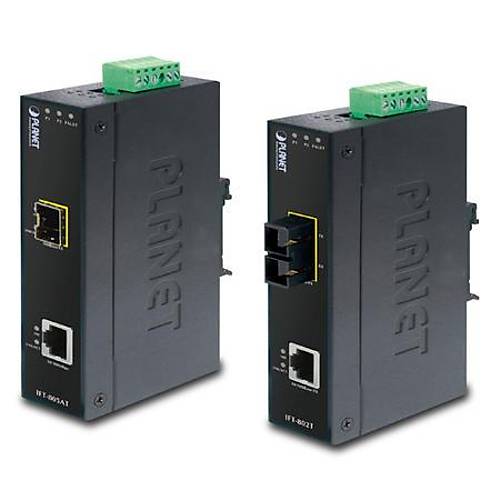

Planet PL-IFT-805AT 10/100Base-TX to 10BAse-FX Industrial Media Converter

10/100Base-TX to 100Base-FX (SFP) Industrial Media Converter
(-40~75 degrees C)


Interface
• 1-port 10/100Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function
• 1 100Base-FX SC interface, providing long distance up to 2km on IFT-802T
• 1 100Base-FX SC interface, providing long distance for 15km on IFT-802TS15
• 1 Mini-GBIC slot, providing multi choice of SFP modules on IFT-805AT

Industrial Conformance
• 12V to 48V DC, redundant power with polarity reverse protect function
• -40 to 75 degrees C operating temperature
• IP30 metal case
• Relay alarm for port breakdown
• Supports 6KV DC Ethernet ESD protection
• Supports 6KV DC EFT protection for power line
• Free Fall, Shock and Vibration Stability
• DIN-rail and wall-mountable hardware design

Layer 2 Features
• Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
• Auto-MDI / MDI-X detection and auto negotiation in half-duplex / full-duplex modes for 10 /100Base-TX RJ-45 port
• Store-and-Forward Switching Architecture
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Supports packet size of up to 1522bytes
• CSMA/CD Protocol
• Automatic source address learning and aging



Hardware Specifications
10/100Base-TX Port	1 RJ-45 auto-MDI / MDI-X port
100Base-FX Port	IFT-802T: 1 SC interface IFT-802TS15: 1 SC interface IFT-805AT: 1 SFP slot
Fiber Port Type	IFT-802T: SC / multi-mode IFT-802TS15: SC / single-mode IFT-805AT: Vary on module
Cable Distance	IFT-802T: 2km IFT-802TS15: 15km IFT-805AT: Vary on module
Optical Frequency	IFT-802T: 1310nm IFT-802TS15: 1310nm IFT-805AT: Vary on module
Launch Power (dBm)	Max IFT-802T: -14 IFT-802TS15: 0 Min IFT-802T: -20 IFT-802TS15: -20 Vary on module IFT-805AT
Receive Sensitivity (dBm)	IFT-802T: -32 IFT-802TS15: -32 IFT-805AT: Vary on module
Maximum Input Power (dBm)	IFT-802T: -14 IFT-802TS15: 0 IFT-805AT: Vary on module
Dimensions (W x D x H)	135 x 85 x 32 mm
Weight	430g
Installation	DIN rail kit and wall mount ear
Maximum Frame Size	1522bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	IP-30 slim type metal case
LED Indicator	System: 　•Power 1 (Green) 　•Power 2 (Green) 　•Fault (Green) 1 x copper port: 　•10/100 (Green) 　•LNK/ACT (Green) 1 x 100FX port: 　•100 (Green) 　•LNK/ACT (Green)
Power Input	12 to 48V DC redundant power with polarity reverse protection function
Power Consumption	3 watts/ 10BTU (maximum)
Protection	ESD (Ethernet): 6KV DC Surge (Power): 6KV DC
Speed	Twisted-pair: 　•10/20Mbps for half / full-duplex 　•100/200Mbps for half / full duplex Fiber-optic: 　•200Mbps for full-duplex
Network cables	10/100Base-TX: 　•2-pair UTP Cat. 3, 4, 5 (100 meters, max.) 　•EIA/TIA-568 100-ohm STP (100 meters, max.) 100Base-FX: 　•IFT-802T: Multi-mode optical fiber 62.5/125μm / 50/125μm (2km) 　•IFT-802TS15: Single-mode optical fiber 9/125μm (15km) 　•IFT-805AT: SFP slot (depending on SFP module)

Standards Conformance
Emissions	FCC Class A, CE Class A
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3x flow control and back pressure
Stability Testing	IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)

Environment
Operating Temperature	-40~75 degrees C
Operating Humidity	5~95% non-condensing
Storage Temperature	-40~85 degrees C
Storage Humidity	5~95% non-condensing
