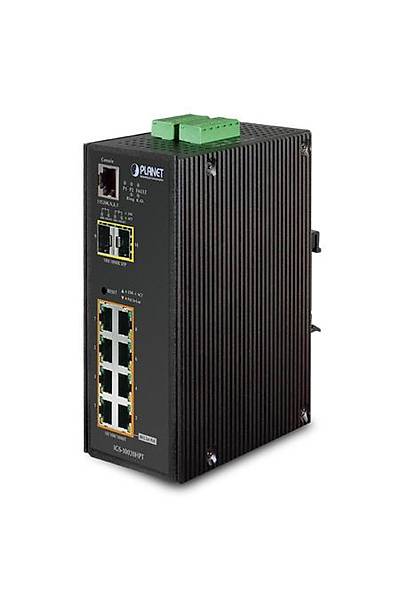

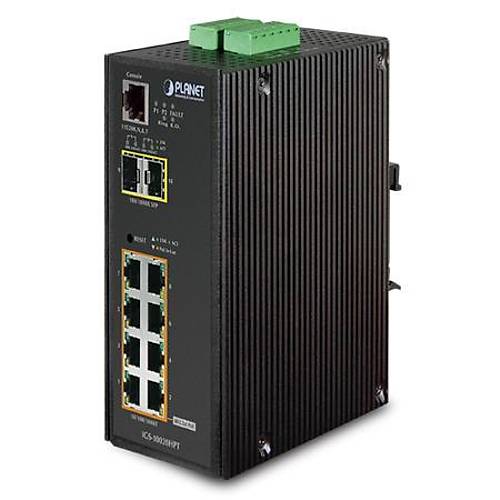

Planet PL-IGS-10020HPT 8 Port Gigabit PoE 2 Port SFP 270W PoE Endüstriyel Switch

Endüstriyel Tip Yönetilebilir Ethernet Switch (Industrial Managed Ethernet Switch)
8-Port 10/100/1000Base-TX RJ-45 with 802.3at/af PoE+ Injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 270 watt)
2-Port 1000Base-SX/LX/BX SFP/mini-GBIC yuva (Port-9 ve Port-10), 100Base-FX SFP uyumlu
Konsol port
IP30, -40~75 Derece C


Physical Port

• 8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 with IEEE 802.3af / 802.3at PoE Injector
• 2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection
• One RJ-45 console interface for basic management and setup

Power over Ethernet

- IEEE 802.3af and IEEE 802.3at mode switch control

- Total PoE power budget control

- Per port PoE function enable/disable

- PoE Admin-mode control

- PoE Port Power feeding priority

- Per PoE port power limit

- PD classification detection

- Temperature Threshold Control

- PoE Usage Threshold Control

- PD Alive Check

- PoE schedule

• Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet / End-Span PSE
• Up to 8 IEEE 802.3af / 802.3at devices powered
• Supports PoE Power up to 30.8 Watts for each PoE ports
• Auto detect powered device (PD)
• Circuit protection prevent power interference between ports
• Remote power feeding up to 100m
• PoE Management features

Industrial Case / Installation

• IP30 Aluminum metal case protection
• DIN Rail and Wall Mount Design
• 48V DC, redundant power with polarity reverse protect function
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 Degree C operating temperature

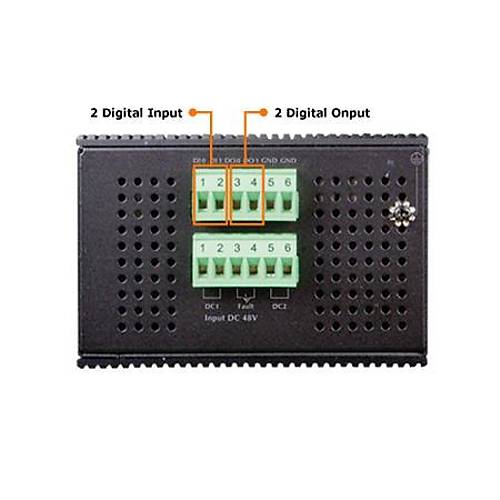

Digital Input / Digital Output

• 2 Digital Input (DI)
• 2 Digital Output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via email and SNNP trap

Layer 2 Features

- Broadcast / Multicast / Unicast

- IEEE 802.1Q Tagged VLAN

- Up to 255 VLANs groups, out of 4094 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-Based VLAN

- MAC-Based VLAN

- Voice VLAN

- STP, IEEE 802.1D Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN

- BPDU Guard

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (Static Trunk)

- Maximum 5 trunk groups, up to 8 ports per trunk group

- Up to 16Gbps bandwidth (Duplex Mode)

• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
• High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
• Storm Control support
• Supports VLAN
• SupportsSpanning Tree Protocol
• Supports Link Aggregation
• Provides Port Mirror (1-to-1)
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops

Quality of Service

- IEEE 802.1p CoS

- IP TOS / DSCP / IP Precedence

- IP TCP/UDP port number

- Typical network application

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing policies on the switch port
• DSCP remarking

Multicast

• Supports IGMP Snooping v1, v2 and v3
• Supports MLD Snooping v1 and v2
• Querier mode support
• IGMP Snooping port filtering
• MLD Snooping port filtering
• MVR (Multicast VLAN Registration)

Security

• IEEE 802.1x Port-Based / MAC-Based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS / TACACS+ users access authentication
• IP-Based Access Control List (ACL)


• MAC-Based Access Control List
• Source MAC / IP address binding
• DHCP Snooping to filter untrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• Auto DoS rule to defend DoS attack
• IP address access management to prevent unauthorized intruder

Management

- Console / Telnet Command Line Interface

- Web switch management

- SNMP v1 and v2c switch management

- SSH / SSL and SNMP v3 secure access

• Switch Management Interfaces
• Four RMON groups (history, statistics, alarms, and events)
• IPv6 IP Address / NTP / DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• Firmware upload / download via HTTP / TFTP
• DHCP Relay
• DHCP Option 82
• User Privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) Protocol
• Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
• Reset button for system reboot or reset to factory default
• PLANET Smart Discovery Utility for deploy management



Hardware Specification
Copper Ports	8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10) Compatible with 100Base-FX SFP
Console	1 x RJ-45-to-RS-232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	20Gbps / non-blocking
Throughput (packet per second)	14.8Mpps@ 64Bytes packet
Address Table	8K entries, automatic source address learning and ageing
Share Data Buffer	4Mbits
Flow Control	IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex
Jumbo Frame	9Kbytes
Reset Button	< 5 sec: System reboot > 5 sec: Factory Default
ESD Protection	6KV DC
EFT Protection	6KV DC
Enclosure	IP30 Aluminum Metal Case
Installation	DIN Rail Kit and Wall Mount Kit
Alarm	One relay output for power fail. Alarm Relay current carry ability: 1A @ DC 24V
DI/DO	2 Digital Input (DI): ?? Level 0:-24V~2.1V (±0.1V) ?? Level 1: 2.1V~24V (±0.1V) ?? Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24VDC, 100mA max.
LED Indicator	System: ?? Power 1 (Green) ?? Power 2 (Green) ?? Fault Alarm (Green) ?? Ring* (Green) ?? Ring Owner* (Green) Per 10/100/1000T RJ-45 Ports: ?? PoE In-Use (Orange) ?? LNK/ACT (Green) Per SFP Interface: ?? 1000 (Orange) ?? LNK/ACT (Green)
Dimension (W x D x H)	152 x 107x 72 mm
Weight	1684g
Power Requirement	DC 48V
Power Consumption	31.9 Watts / 108.78BTU (Full loading without PoE function) 306 Watts / 1043.46BTU (Full loading with PoE function)
Power Over Ethernet
PoE Standard	IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 56V DC, 350mA . Max. 15.4 watts (IEEE 802.3af) Per Port 56V DC, 590mA. Max. 30 watts (IEEE 802.3at)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	270W maximum (depends on power input)
Max. number of Class 2 PD	8
Max. number of Class 3 PD	8
Max. number of Class 4 PD	8
Layer 2 Function
Basic Management Interfaces	Console, Telnet, Web Browser, SNMP v1, v2c
Secure Management Interfaces	SSH, SSL, SNMP v3
Port Configuration	Port disable/enable Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Power saving mode control
Port Status	Display each port’s speed duplex mode, link status, Flow control status, Auto negotiation status, trunk status
Port Mirroring	TX / RX / Both 1 to 1 monitor
VLAN	802.1Q Tagged Based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-Based VLAN Protocol-Based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP / Static Trunk Supports 5 groups of 8-Port trunk support
QoS	Traffic classification based, Strict priority and WRR 8-Level priority for switching ?? Port Number ?? 802.1p priority ?? 802.1Q VLAN tag ?? DSCP/TOS field in IP Packet
IGMP Snooping	IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups IGMP Querier mode support
MLD Snooping	MLD (v1/v2) Snooping, up to 255 multicast Groups MLD Querier mode support
Access Control List	IP-Based ACL / MAC-Based ACL Up to 123 entries
Bandwidth Control	Per port bandwidth control ?Ingress: 500Kb~1000Mbps ?Egress: 500Kb~1000Mbps
SNMP MIBs	RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1D Spanning tree protocol IEEE 802.1w Rapid spanning tree protocol IEEE 802.1s Multiple spanning tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1D Spanning tree protocol IEEE 802.1w Rapid spanning tree protocol IEEE 802.1s Multiple spanning tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2
