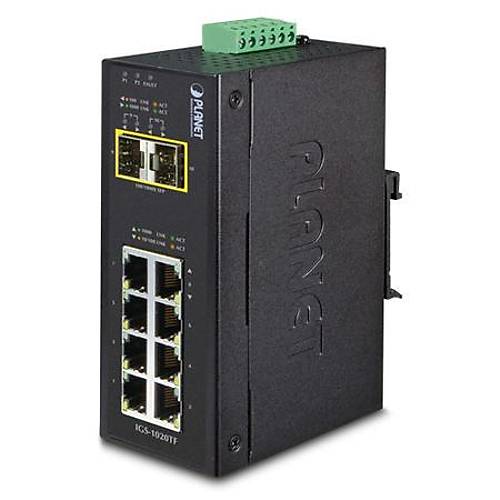

Planet PL-IGS-1020TF 8 Port Gigabit 2 Port SFP Endüstriyel Yönetilebilir Switch

Endüstriyel Tip Yönetilemeyen Switch (Industrial Unmanaged Switch)
8-Port 10/100/1000Mbps
2 x 1000BASE-SX/LX/BX SFP/mini-GBIC yuva (Port-9 ve Port-10), 100Base-FX SFP uyumlu
IP30, -40~75 Derece C

Physical Port

• 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
• 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver type auto-detection

Industrial Case and Installation

- 12 to 48V DC, redundant power with polarity reverse protect function

- AC 24V power adapter acceptable

• IP30 metal case protection
• DIN rail and wall mount design
• Redundant Power Design
• Supports 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)


Hardware Specifications

Copper Ports	8 x 10/100/1000BASE-T RJ45 TP Auto-MDI/MDI-X, auto-negotiation
SFP/mini-GBIC Slots	2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10) Compatible with 100BASE-FX SFP
Switch Processing Scheme	Store-and-Forward
Switch Fabric	20Gbps (non-blocking)
Switch Throughput (packet per second)	14.88Mpps@64bytes
MAC Address Table	4K entries
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Jumbo Frame	9216 bytes
Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm	Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V
LED Indicator	3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Red: Power Fault 2 x LED for Per Copper Port (Port-1~Port-8): Green: 1000 LNK/ACT Orange:100 LNK/ACT 2 x LED for Per Mini-GBIC Interface (Port-9 and Port-10): Green: 1000 LNK/ACT Orange:100 LNK/ACT
ESD Protection	6KV DC
Enclosure	IP30 type metal case
Installation	DIN rail kit and wall-mount ear
Dimensions (W x D x H)	56 x 87 x 135 mm
Weight	540g
Power Requirements	DC 12~48V or AC 24V Redundant power with polarity reverses protection function
Power Consumption/Dissipation	8.7 watts/29.69BTU
Cable	Twisted-pair ? 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters ? 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters ? 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters Fiber-Optic Cable ? ? 1000BASE-SX: ?50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m ? 1000BASE-LX: ?9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 ? ?kilometers (vary on SFP module) ? 100BASE-FX: ?50/125μm or 62.5/125μm multi-mode fiber optic cable, up to ?2 kilometers ?9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers ?(vary on SFP module)
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet/10BASE-T IEEE 802.3u Fast Ethernet/100BASE-TX IEEE 802.3ab Gigabit Ethernet/1000BASE-T IEEE 802.3z Gigabit Ethernet/1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1p Cos
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (anti-shock) IEC 60068-2-6 (anti-vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)
