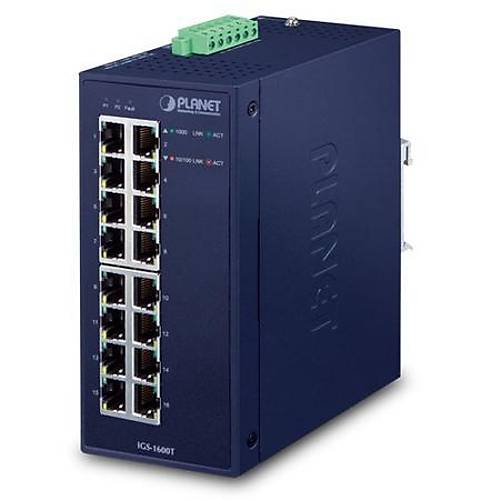

    Planet PL-IGS-1600T 16 Port 10/100/1000T Endüstriyel Ethernet Switch

    Görsel 1
    Görsel 2
    Para_Puan : 85.973
    Fiyat:
    10.316,75 TL
    Havale / EFT:
    9.986,61 TL
    1.925,79 TL'den başlayan taksit seçenekleri için tıklayın.
    1
    Kargo Bedava

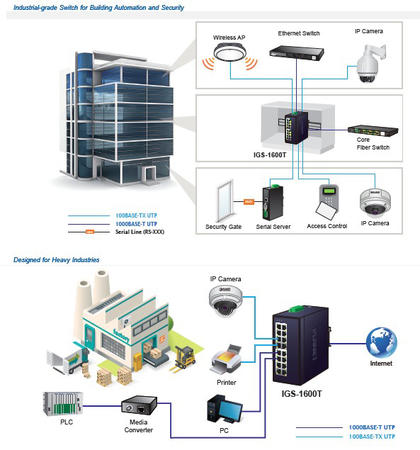

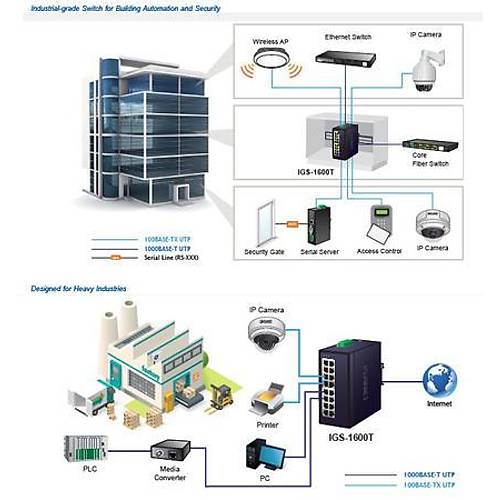

    Endüstriyel Tip Yönetilemeyen Switch (Industrial Unmanaged Ethernet Switch)
    16-Port 10/100/1000T IP30, -40~75 Derece C

    Hardware Specifications
    Gigabit Ethernet Switch Copper Ports16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
    Switch ArchitectureStore-and-Forward
    Switch Fabric32Gbps (non-blocking)
    Throughput (packet per second)23.81Mpps@ 64 bytes
    Address Table8K entries, automatic source address learning and aging
    Shared Data Buffer4.1Mbits
    Flow ControlIEEE 802.3x pause frame for full-duplex
    Back pressure for half-duplex
    Jumbo Frame10Kbytes
    ESD Protection6KV DC
    EnclosureIP30 metal case
    InstallationDIN-rail kit and wall-mount kit
    ConnectorRemovable 6-pin terminal block for power input
    - Pin 1/2 for Power 1
    - Pin 3/4 for fault alarm
    - Pin 5/6 for Power 2
    AlarmOne relay output for power failure.
    Alarm relay current carry ability: 1A @ 24V DC
    Dimensions (W x D x H)66 x 107 x 152 mm
    Weight743g
    Power RequirementsDual 12~48V DC
    24V AC
    Power ConsumptionDC input:
    Max. 3.4 watts/11.6BTU (System on)
    Max. 8.7 watts/29.7BTU (Full loading)

    AC input:
    Max. 5 watts/17BTU (System on)
    Max. 13.99 watts/47.8BTU (Full loading)
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Stability TestingIEC60068-2-32 (free fall)
    IEC60068-2-27 (shock)
    IEC60068-2-6 (vibration)
    Standards ComplianceIEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x flow control and back pressure
    IEEE 802.1p Class of Service
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    Environment
    Operating Temperature-40 ~ 75 degrees C
    Storage Temperature-40 ~ 85 degrees C
    Humidity5 ~ 95% (non-condensing)
    Ordering Information

    IGS-1600T

    Industrial 16-Port 10/100/1000T Ethernet Switch (-40~75 degrees C)


    Diğer Özellikler
    Stok KoduPL-IGS-1600T
    MarkaPLANET
    Stok DurumuVar
    Garanti (Yıl)2
    4711605284882
