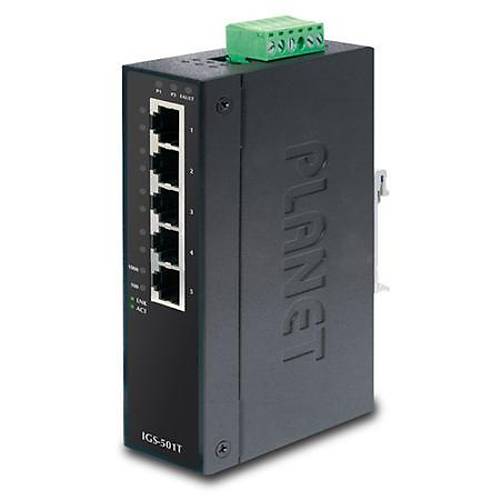

    Planet PL-IGS-501T 5 Port 10/100/1000T Gigbit Endüstriyel Ethernet Switch

    Görsel 1
    Para_Puan : 28.545
    3.425,36 TL
    Havale / EFT:
    3.315,75 TL
    639,40 TL'den başlayan taksit seçenekleri için tıklayın.
    Kargo Bedava
    Endüstriyel Tip Yönetilemeyen Switch (Industrial Unmanaged Switch)
    5-Port 10/100/1000T
    IP30, -40~75 Derece C

    Physical Port
    • 5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function

    Layer 2 Features
    • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
    • Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
    • High performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
    • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
    • Backplane (switching fabric): 10Gbps
    • Integrated address look-up engine, supporting 2K absolute MAC addresses
    • 1M bits on-chip buffer memory
    • 9K Jumbo packet size support
    • Automatic address learning and address aging
    • CSMA/CD Protocol

    Industrial Case / Installation
    • IP30 metal case
    • DIN rail and wall-mount design
    • 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
    • Supports EFT protection 6000V DC for power line
    • Supports 6000V DC Ethernet ESD protection
    • -40 to 75 degrees C operating temperature
    Hardware Specifications
    Hardware Version3
    Copper Ports5 x 10/100/1000Base-T RJ45 TP
    auto-MDI/MDI-X, auto-negotiation
    ConnectorRemovable 6-pin terminal block
    Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
    AlarmProvides one relay output for power failure
    Alarm relay current carry ability: 1A @ DC 24V
    LED3 x LED for system and power:
    ?? Green: DC Power 1
    ?? Green: DC Power 2
    ?? Green: Power Fault
    2 x LED for each copper port
    ?? Green: 1000Mbps LNK/ACT
    ?? Orange:10/100Mbps LNK/ACT
    ESD Protection6KV
    EFT Protection6KV
    Power Requirements12~48V DC, Redundant power with polarity reverse protection function, 24V AC power support
    Power Consumption / Dissipation4.8 watts / 16BTU (48V DC)
    8.3 watts / 28BTU (24V DC)
    InstallationDIN rail kit and wall-mount ear
    EnclosureIP30 metal case
    Dimensions (W x D x H)135 x 87 x 32 mm
    Switch Specifications
    Switch Processing SchemeStore-and-Forward
    Address Table2K entries
    Buffer Memory1M bits on-chip buffer memory
    Flow ControlBack pressure for half duplex
    IEEE 802.3x pause frame for full duplex
    Switch Fabric10Gbps
    Throughput (packet per second)7.4Mpps @64bytes
    Jumbo Frame9K
    Network Cables10/100/1000Base-T
    Cat. 3, 4, 5, 5e, 6 UTP cable [100 meters (max.)]
    EIA/TIA-568 100-ohm STP [100 meters (max.)]
    Standards Conformance
    Standards ComplianceIEEE 802.3 Ethernet
    IEEE 802.3u Fast Ethernet
    IEEE 802.3ab Gigabit Ethernet
    IEEE 802.3x full-duplex flow control
    Regulation ComplianceFCC Part 15 Class A, CE
    Stability TestingIEC 60068-2-32 (free fall)
    IEC 60068-2-27 (shock)
    IEC 60068-2-6 (vibration)
    TemperatureOperating: -40~75 degrees C
    Storage: -40~75 degrees C
    HumidityOperating: 5~90%
    Storage: 5~90% (non-condensing)

    Diğer Özellikler
    Stok KoduPL-IGS-501T
    Stok DurumuVar
    Garanti (Yıl)2
