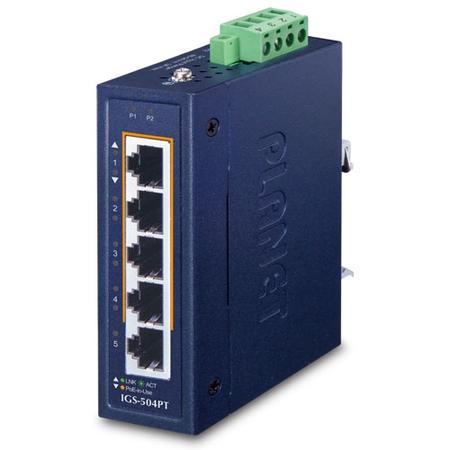

      Planet PL-IGS-504PT 4 Port 10/100/1000 PoE+ 1 Port Gigabit Ethernet PoE Switch


      Hardware Specifications
      Copper Ports5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
      PoE Injector Ports4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
      PoE Budget120W maximum@75 degrees C

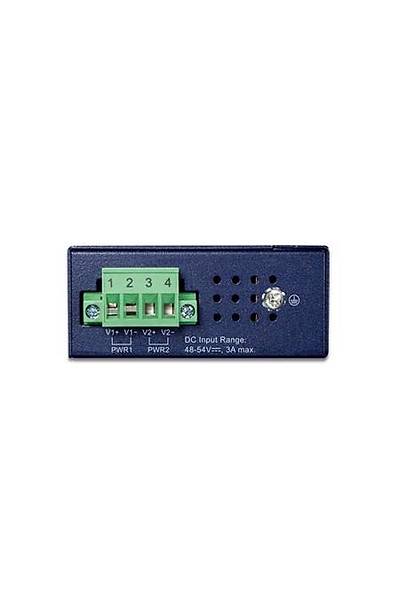

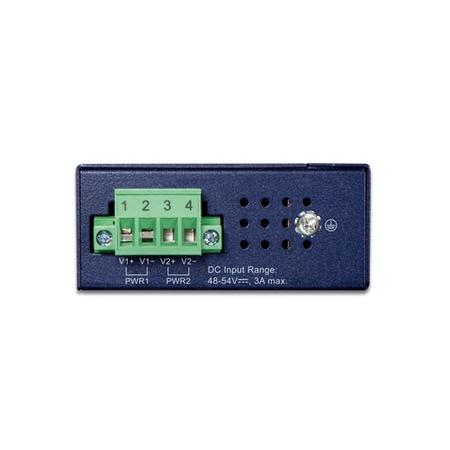

      ConnectorRemovable 4-pin terminal block
      Pin 1/2 for Power 1; Pin 3/4 for Power 2
      Power Requirements48~54V DC, 3A (max.)
      Redundant power with reverse polarity protection
      Power ConsumptionDC 48V:
      Max. 0.48 watts/1.63BTU (System)
      Max. 62.88 watts/214.5BTU ( Full Loading)
      DC 54V:
      Max. 0.54 watts/1.84BTU (System)
      Max. 123.12 watts/420BTU ( Full Loading)
      Dimensions (W x D x H)30 x 70 x 104 mm
      Weight260g
      EnclosureIP30 metal case
      InstallationDIN-rail kit and wall-mount kit
      ESD Protection6KV
      Switch Specifications
      Switch ArchitectureStore-and-Forward
      Switch Fabric10Gbps
      Throughput (packet per second)7.4Mpps@64bytes
      Address Table2K entries
      Jumbo Frame9Kbytes
      Flow ControlBack pressure for half duplex
      IEEE 802.3x pause frame for full duplex
      Power over Ethernet
      PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
      Backward compatible with IEEE 802.3af Power over Ethernet/PSE
      PoE Power Supply TypeEnd-span
      Power Pin Assignment1/2 (+), 3/6 (-)
      PoE Power OutputPer port 48-54V DC
      Max. 30 watts@54V DC
      Max. 15 watts@48V DC
      PoE Power Budget120 watts
      Max. Number of Class 4 PDs4
      Standards Conformance
      Regulatory ComplianceFCC Part 15 Class A, CE
      Stability TestingIEC 60068-2-32 (free fall)
      IEC 60068-2-27 (shock)
      IEC 60068-2-6 (vibration)
      Standards ComplianceIEEE 802.3 Ethernet
      IEEE 802.3u Fast Ethernet
      IEEE 802.3ab Gigabit Ethernet
      IEEE 802.3x Full-Duplex Flow Control
      IEEE 802.3az Energy Efficient Ethernet (EEE)
      IEEE 802.3at Power over Ethernet Plus PSE
      IEEE 802.3af Power over Ethernet Plus
      IEEE 802.1p Class of Service
      Environment
      TemperatureOperating: -40~75 degrees C
      Storage: -40~75 degrees C
      HumidityOperating: 5~90% (non-condensing)
      Storage: 5~90% (non-condensing)
