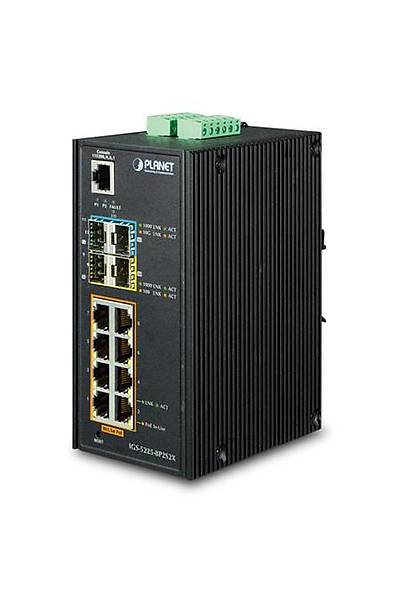

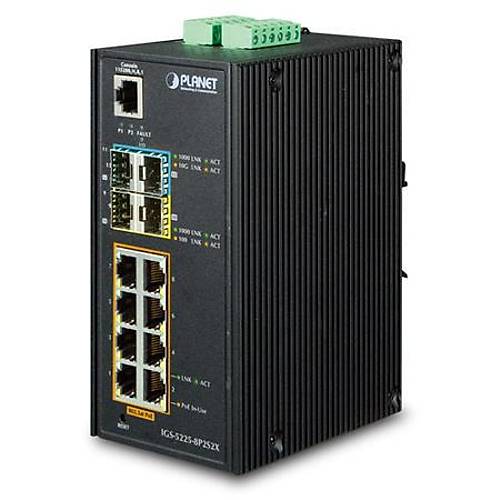

    Planet PL-IGS-5225-8P2S2X 8 Port Gigabit PoE 4 Port SFP 240W PoE Yönetilebilir L2+ Endüstriyel Switch

    Görsel 1
    Görsel 2
    Para_Puan : 198.219
    Fiyat:
    23.786,30 TL
    Havale / EFT:
    23.025,14 TL
    4.440,11 TL'den başlayan taksit seçenekleri için tıklayın.
    1

    Endüstriyel Tip Yönetilebilir Ethernet Switch (Industrial Managed Ethernet Switch)
    L2+
    8-Port 10/100/1000Base-T RJ45 with IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 240 watt)
    2 x 1000BASE-SX/LX/BX SFP/mini-GBIC yuva (Port-9 ile Port-10 arası), 100Base-FX SFP uyumlu
    2 x 10GbBASE-SR/LR SFP+ yuva (Port-11 ve Port-12)
    Konsol port
    IP30, -40~75 Derece C

    Physical Port
    • Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
    • Two 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
    • Two 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP
    • One RJ45 console interface for basic management and setup

    Power over Ethernet
    - Total PoE power budget control
    - Per port PoE function enable/disable
    - PoE admin-mode control
    - PoE port power feeding priority
    - Per PoE port power limit
    - PD classification detection
    - Temperature threshold control
    - PoE usage threshold control
    - PD alive check
    - PoE schedule
    • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
    • Up to 8 IEEE 802.3af/802.3at devices powered
    • Supports PoE power up to 36 watts for each PoE port
    • Auto detects powered device (PD)
    • Circuit protection prevents power interference between ports
    • Remote power feeding up to 100m
    • PoE management features
    • Intelligent PoE features

    Industrial Case & Installation
    • IP30 aluminum case
    • DIN rail and wall-mount design
    • 48~56V DC, redundant power with polarity reverse protect function
    • Supports 6000V DC Ethernet ESD protection
    • -40 to 75 degrees C operating temperature

    Digital Input & Digital Output
    • 2 Digital Input (DI)
    • 2 Digital Output (DO)
    • Integrate sensors into auto alarm system
    • Transfer alarm to IP network via email and SNMP trap

    Layer 2 Features
    - Broadcast/Multicast/Unicast
    - IEEE 802.1Q tagged VLAN
    - Up to 255 VLANs groups, out of 4094 VLAN IDs
    - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    - Private VLAN Edge (PVE)
    - Protocol-based VLAN
    - MAC-based VLAN
    - Voice VLAN
    - IEEE 802.1D Spanning Tree Protocol (STP)
    - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    - BPDU Guard
    - 802.3ad Link Aggregation Control Protocol (LACP)
    - Cisco ether-channel (static trunk)
    - Maximum 6 trunk groups with 4 ports per trunk group
    - Up to 22Gbps bandwidth (duplex mode)
    • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
    • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
    • Storm Control support
    • Supports VLAN
    • Supports Spanning Tree Protocol
    • Supports Link Aggregation
    • Provides port mirror (1-to-1)
    • Port mirroring to monitor the incoming or outgoing traffic on a particular port
    • Loop protection to avoid broadcast loops

    Layer 3 IP Routing Features
    • Supports maximum 32 static routes and route summarization

    Quality of Service
    - IEEE 802.1p CoS
    - IP TOS/DSCP/IP precedence
    - IP TCP/UDP port number
    - Typical network application
    • Ingress Shaper and Egress Rate Limit per port bandwidth control
    • 8 priority queues on all switch ports
    • Traffic classification
    • Strict priority and Weighted Round Robin (WRR) CoS policies
    • Supports QoS and In/Out bandwidth control on each port
    • Traffic-policing policies on the switch port
    • DSCP remarking

    Multicast
    • Supports IGMP snooping v1, v2 and v3
    • Supports MLD snooping v1 and v2
    • Querier mode support
    • IGMP snooping port filtering
    • MLD snooping port filtering
    • MVR (Multicast VLAN Registration)

    Security
    • IEEE 802.1x Port-based/MAC-based network access authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS/TACACS+ users access authentication
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
    • Source MAC/IP address binding
    • DHCP snooping to filter distrusted DHCP messages
    • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
    • IP Source Guard prevents IP spoofing attacks
    • IP address access management to prevent unauthorized intruder

    Management
    - Console/Telnet Command Line Interface
    - Web switch management
    - SNMP v1 and v2c switch management
    - SSH/SSL and SNMP v3 secure access
    • Switch Management Interfaces
    • Four RMON groups (history, statistics, alarms, and events)
    • IPv6 IP address/NTP/DNS management
    • Built-in Trivial File Transfer Protocol (TFTP) client
    • BOOTP and DHCP for IP address assignment
    • Firmware upload/do
    Diğer Özellikler
    Stok KoduPL-IGS-5225-8P2S2X
    MarkaPLANET
    Stok DurumuVar
    Garanti (Yıl)2
    4711605282352
