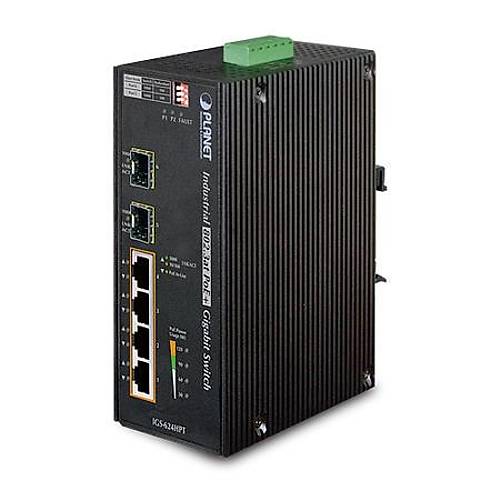

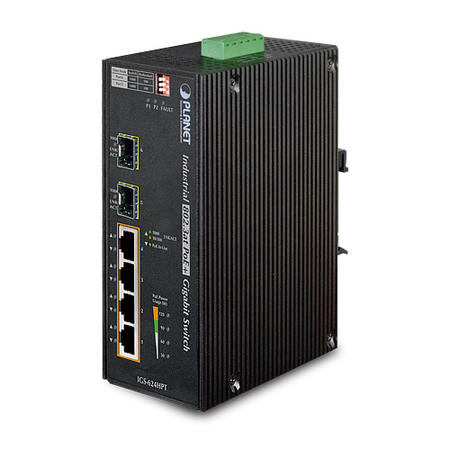

Planet PL-IGS-624HPT 4 Port Gigabit PoE+ 2 Port SFP 120W PoE Endüstiyel PoE Switch

Endüstriyel Tip Yönetilemeyen PoE+ Switch (Industrial Unmanaged PoE+ Switch)
4-Port 10/100/1000Base-TX IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 120 watt)
2-Port 1000Base-SX/LX ve 100Base-FX SFP yuva
IP30, -40~75 Derece C


Physical Port

• 4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af / 802.3at PoE Injector
• 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured

Power over Ethernet

• Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet Plus End-Span PSE
• Up to 4 IEEE 802.3af / 802.3at devices powered
• Supports PoE Power up to 30.8 watts for each PoE port
• Provides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet port
• Auto-detects EEE 802.3af/at equipment and protects devices from being damaged by incorrect installation
• Remote power feeding up to 100m

Layer 2 Features



• Supports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control (full-duplex)
• Automatic address learning and address aging

Industrial Case / Installation



• IP30 aluminum metal case protection
• Dual SFP Ports Auto Link Redundant Mode Support
• DIN Rail and Wall Mount Design
• 48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave power
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

Hardware Specifications
Copper Ports	4 x 10/100/1000Base-T RJ-45 TP Auto-MDI/MDI-X, Auto-Negotiation
SFP / mini-GBIC Slots	2 x SFP interfaces Supports 1000Base-SX/LX and 100Base-FX SFP transceivers
DIP Switch	DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX DIP-3: Switch mode / Fiber Redundant mode
Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm	Provides one relay output for power fail Alarm Relay current carry ability: 1A @ DC 24V
LED	3 x LED for System and Power: ?? Green: DC Power 1 ?? Green: DC Power 2 ?? Green: Power Fault 2 x LED for Per Copper Port (Port-1~Port-4): ?? Green: 1000 LNK/ACT, Orange:100 LNK/ACT ?? Orange: PoE In-use 1 x LED for Per mini-GBIC interface (Port-5 and Port-6): ?? Green: LNK/ACT 4 x LED for PoE Power Usage (W): ?? Orange: 30, 60, 90 and 120W
ESD Protection	6KV DC
EFT Protection	6KV DC
Enclosure	IP30 aluminum metal case
Installation Type	DIN rail kit or wall mount
Dimensions (W x D x H)	152 x 107x 72 mm
Weight	1539g
Power Requirements	48V DC, 5A max. Redundant power with polarity reverse protection function
Power Consumption / Dissipation	15.1 watts / 52 BTU (System loading without PoE) 135.1 watts / 461 BTU (Full loading with PoE function)
Power over Ethernet
PoE Standard	IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
PoE Power Supply Type	End-Span
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Output	Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at)
Max. number of Class 4 PD	4
Switch Specification
Switch Processing Scheme	Store-and-Forward
Address Table	1K entries
Flow Control	Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex
Switch fabric	12Gbps
Throughput (packet per second)	8.93Mpps@64bytes
Maximum Transmit Unit	9216 bytes
Speed	SX/LX: 2000Mbps (full-duplex) FX: 200Mbps (full-duplex) TP: 10/20Mbps, 100/200Mbps, 2000Mbps
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet / 10Base-T IEEE 802.3u Fast Ethernet / 100Base-TX IEEE 802.3ab Gigabit Ethernet / 1000Base-T IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration)
Environment
Temperature	Operating: -40~75 degree C Storage: -40~75 degrees C
Humidity	Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing)
