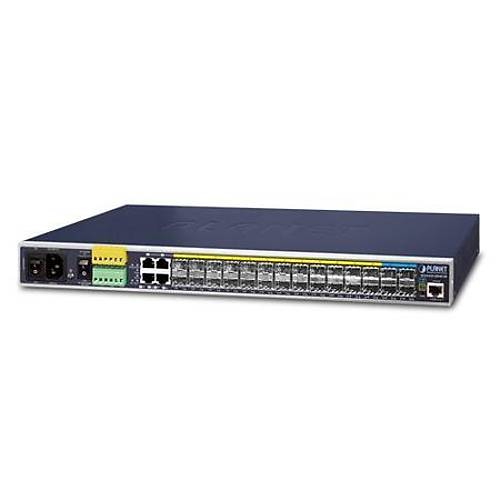

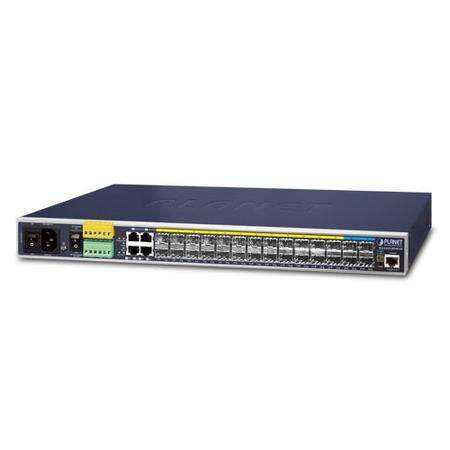

    Planet PL-IGS-6325-20S4C4X 10 Port 1G SFp 10 Port 2.5G SFP+ 4 Port 10G SFp+ L3 Endüstriyel Yönetilebilir Switch

    Görsel 1
    Para_Puan : 305.744
    Fiyat:
    36.689,23 TL
    Havale / EFT:
    35.515,17 TL
    6.848,66 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo Kargo Bedava

    Planet PL-IGS-6325-20S4C4X 10 Port 1G SFp 10 Port 2.5G SFP+ 4 Port 10G SFp+ L3 Endüstriyel Yönetilebilir Switch


    Hardware Specifications
    Copper Ports4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4
    SFP/mini-GBIC Slots14 100/1000BASE-X SFP interfaces (Port-1 to Port-14) Compatible with 100BASE-FX SFP transceiver
    10 100/1000/2500BASE-X SFP interfaces (Port-15 to Port-24) Compatible with 100BASE-FX and 2500BASE-X SFP transceiver
    SFP+ Slots4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
    Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
    Console1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
    Reset Button< 5 sec: System reboot
    > 5 sec: Factory default
    Dimensions (W x D x H)440 x 200 x 44.5 mm, 1U height
    Weight2.935kg
    Power ConsumptionAC input:
    ?Max. 38.3 watts/131.4 BTU
    DC input:
    ?Max. 41.4 watts/142 BTU
    Power Requirements – ACAC 100~240V, 50/60Hz 1A
    Power Requirements – DCDC 24~60V, 2.25A
    DI and DO2 digital input (DI):
    ?Level 0: -24~2.1V
    ?Level 1: 2.1~24V
    ?Max. input current: 10mA
    2 digital output (DO):
    ?Open collector to 24VDC, 100mA
    EFT Protection6KV DC
    ESD Protection6KV DC
    LED IndicatorSystem:
    ?AC (Green), DC1 (Green), DC2 (Green), Fault (Red)
    ?Ring (Green), DI/DO. (Red)
    10/100/1000T RJ45 Interfaces (Port 1 to Port 4):
    ?1000Mbps LNK/ACT (Green)
    ?10/100Mbps LNK/ACT (Amber)
    100/1000Mbps SFP Combo Interfaces (Port 1 to Port 4):
    ?1000Mbps LNK/ACT (Green)
    ?100Mbps LNK/ACT (Amber)
    100/1000Mbps SFP Interfaces (Port 5 to Port 14):
    ?1000Mbps LNK/ACT (Green)
    ?100Mbps LNK/ACT (Amber)
    100/1G/2.5Gbps SFP Interfaces (Port 15 to Port 24):
    ?1G/2.5G LNK/ACT (Green)
    ?100 LNK/ACT (Amber)
    1/2.5/10Gbps SFP+ Interfaces (Port 25 to Port 28):
    ?1G/2.5G LNK/ACT (Green)
    ?10Gbps LNK/ACT (Amber)
    Switching Specifications
    Switch ArchitectureStore-and-Forward
    Switch Fabric158Gbps/non-blocking
    Throughput117.5Mpps@64Bytes
    Address Table32K entries, automatic source address learning and aging
    Shared Data Buffer32M bits
    SDRAM512MB
    FLASH Memory64MB
    Flow ControlIEEE 802.3x pause frame for full duplex
    Back pressure for half duplex
    Jumbo Frame10K bytes
    Layer 2 Management Functions
    Port ConfigurationPort disable/enable
    Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
    Flow control disable/enable
    Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
    Port MirroringTX/RX/Both
    Many-to-1 monitor
    VLAN802.1Q tagged VLAN
    Q-in-Q tunneling
    Private VLAN Edge (PVE)
    MAC-based VLAN
    Protocol-based VLAN
    Voice VLAN
    IP Subnet-based VLAN
    MVR (Multicast VLAN registration)
    Up to 4K VLAN groups, out of 4096 VLAN IDs
    GVRP
    Link AggregationIEEE 802.3ad LACP/static trunk
    14 trunk groups with 16 port per trunk group
    Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
    IEEE 802.1w Rapid Spanning Tree Protocol
    IEEE 802.1s Multiple Spanning Tree Protocol
    QoSTraffic classification based, strict priority and WRR
    8-level priority for switching:
    ?Port number
    ?802.1p priority
    ?802.1Q VLAN tag
    ?DSCP/ToS field in IP packet
    IGMP SnoopingIGMP (v1/v2/v3) snooping
    IGMP querier mode support
    Supports 255 IGMP groups
    MLD SnoopingMLD (v1/v2) snooping
    MLD querier mode support
    Supports 255 MLD groups
    Access Control ListIP-based ACL/MAC-based ACL
    ACL based on:
    ?MAC Address
    ?IP Address
    ?Ethertype
    ?Protocol Type
    ?VLAN ID
    ?DSCP
    ?802.1p Priority
    Up to 256 entries
    Bandwidth ControlPer port bandwidth control
    Ingress: 100Kbps~1000Mbps
    Egress: 100Kbps~1000Mbps
    SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
    ?Peer-to-peer transparent clock
    ?End-to-end transparent clock
    Layer 3 Functions
    IP InterfacesMax. 128 VLAN interfaces
    Routing TableMax. 128 routing entries
    Routing ProtocolsIPv4 hardware static routing
    IPv6 hardware static routing
    OSPFv2 dynamic routing
    Management
    Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
    Secure Management InterfacesSSHv2, TLSv1.2, SNMPv3
    SNMP MIBsRFC 1213 MIB-II
    RFC 1493 Bridge MIB
    RFC 1643 Ethernet MIB
    RFC 2863 Interface MIB
    RFC 2665 Ether-Like MIB
    RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
    RFC 2737 Entity MIB
    RFC 2618 RADIUS Client MIB
    RFC 2863 IF-MIB
    RFC 2933 IGMP-STD-MIB
    RFC 3411 SNMP-Frameworks-MIB
    RFC 4292 IP Forward MIB
    RFC 4293 IP MIB
    RFC 4836 MAU-MIB
    IEEE 802.1X PAE
    LLDP

    Diğer Özellikler
    Stok KoduPL-IGS-6325-20S4C4X
    MarkaPLANET
    Stok DurumuVar
    4711605284028
