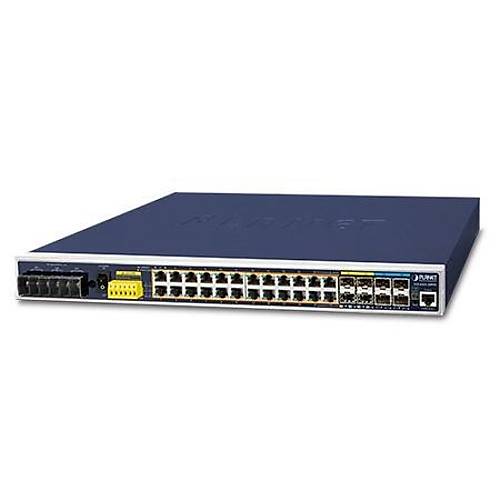

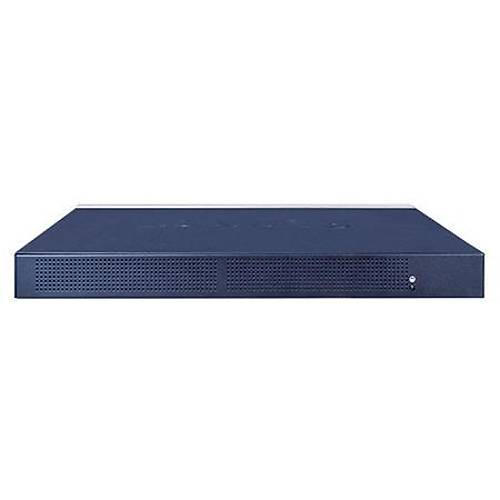

    Planet PL-IGS-6325-24P4X 24 Port PoE+ 4 Port SFP+ L3 Yönetilebilir PoE Switch

    Planet PL-IGS-6325-24P4X 24 Port PoE+ 4 Port SFP+ L3 Yönetilebilir PoE Switch Planet PL-IGS-6325-24P4X 24 Port PoE+ 4 Port SFP+ L3 Yönetilebilir PoE Switch
    Görsel 1
    Görsel 2
    Para_Puan : 444.599
    Fiyat:
    53.351,82 TL
    Havale / EFT:
    51.217,75 TL
    10.136,85 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo Sınırlı Sayıda Kargo Bedava

    Ürüne Oy Verin

    Satıcıya Danış

    Planet PL-IGS-6325-24P4X 24 Port PoE+ 4 Port SFP+ L3 Yönetilebilir PoE Switch


    Hardware Specifications
    Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
    SFP/mini-GBIC Slots4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
    Backward compatible with 100BASE-FX SFP transceiver
    SFP+ Slots4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
    Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
    PoE Injector Port24 ports with 802.3af/at PoE injector function with Port-1 to Port-24
    Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
    Switch ArchitectureStore-and-Forward
    Switch Fabric128Gbps/non-blocking
    Throughput (packet per second)95.2Mpps@ 64 bytes packet
    Address Table16K entries, automatic source address learning and aging
    Shared Data Buffer32M bits
    Flow ControlIEEE 802.3x pause frame for full duplex
    Back pressure for half duplex
    Jumbo Frame10K bytes
    Reset Button< 5 sec: System reboot
    > 5 sec: Factory default
    ESD Protection5KV DC
    EnclosureIP30 metal case
    InstallationRack-mountable kit
    ConnectorFixed 6-pin terminal block for power input
    Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
    Removable 6-pin terminal block for DI/DO interface
    Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
    AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
    DI&DO2 digital input (DI):
    Level 0: -24V~2.1V (±0.1V)
    Level 1: 2.1V~24V (±0.1V)
    Max. input current: 10mA
    2 digital output (DO):
    Open collector to 24V DC, 100mA max.
    LED IndicatorsSystem:
    ?DC 1 (Green)
    ?DC 2 (Green)
    ?Fault Alarm (Red)
    ?Ring (Green)
    ?Ring Owner (Green)
    ?DIDO (Red)
    Per 10/100/1000T RJ45 PoE+ Interfaces (Port 1 to Port 24):
    ?PoE-in-Use (Amer)
    ?LNK/ACT (Green)
    100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
    ?1000Mbps LNK/ACT (Green)
    ?100Mbps LNK/ACT (Amer)
    1/2.5/10Gbps SFP+ Interfaces (Port 25 to Port 28):
    ?1G/2.5G LNK/ACT (Green)
    ?10Gbps LNK/ACT (Amer)
    Dimensions (W x D x H)440 x 300 x 44 mm, 1U height
    Weight3800g
    Power RequirementsDual 48~56V DC (>53V DC for PoE+ output recommended), 11A
    Power ConsumptionMax. 33 watts/112.51 BTU (Power on without any connection)
    Max. 540 watts/1841.13 BTU (Full loading with PoE function)
    Power Over Ethernet
    PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
    PoE Power Supply TypeEnd-span
    PoE Power OutputIEEE 802.3af Standard
    - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
    IEEE 802.3at Standard
    - Per port 52V~56V DC (depending on the power supply), max. 36 watts
    Power Pin Assignment1/2 (+), 3/6 (-)
    PoE Power Budget48V Power input
    - Single power input: 240W maximum (depending on power input)
    - Dual power input: 300W maximum (depending on power input)
    52~56V Power input
    - Single power input: 240W maximum (depending on power input)
    - Dual power input: 440W maximum (depending on power input)
    ?Dual power input must be the same as DC voltage, like dual 56V
    Max. Number of Class 2 PDs24
    Max. Number of Class 3 PDs24
    Max. Number of Class 4 PDs16
    Layer 2 Function
    Port ConfigurationPort disable/enable
    Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
    Flow control disable/enable
    Power saving mode control
    Port StatusDisplay each port’s speed duplex mode, link status, flow control status,
    auto negotiation status, trunk status
    Port MirroringTX / RX / Both
    Many-to-1 monitor
    VLANIEEE 802.1Q tag-based VLAN
    IEEE 802.1ad Q-in-Q tunneling
    Private VLAN Edge (PVE)
    MAC-based VLAN
    Protocol-based VLAN
    Voice VLAN
    MVR (Multicast VLAN Registration)
    GVRP (GARP VLAN Registration Protocol)
    Up to 4K VLAN groups, out of 4096 VLAN IDs
    Link AggregationIEEE 802.3ad LACP/static trunk
    Supports 14 trunk groups with 16 ports per trunk group
    Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
    IEEE 802.1w Rapid Spanning Tree Protocol
    IEEE 802.1s Multiple Spanning Tree Protocol
    QoSTraffic classification based, strict priority and WRR
    8-level priority for switching
    ?Port number
    ?802.1p priority
    ?802.1Q VLAN tag
    ?DSCP/TOS field in IP packet
    IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
    IPv4 IGMP querier mode support
    MLD SnoopingIPv6 MLD (v1/v2) snooping, up to 255 multicast groups
    IPv6 MLD querier mode support
    Access Control ListIP-based ACL/MAC-based ACL
    Up to 256 entries
    Bandwidth ControlPer port bandwidth control
    ?Ingress: 10Kbps~13000Mbps
    ?Egress: 100Kbps~13000Mbps
    Layer 3 Function
    IP InterfacesMax. 128 VLAN interfaces
    Routing TableMax. 128 routing entries
    Routing ProtocolsIPv4 hardware static routing
    IPv6 hardware static routing
    IPv4 OSPFv2 dynamic routing
    Management
    Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
    Secure Management InterfacesSSH, TLS, SSL, SNMP v3
    SNMP MIBsRFC 1213 MIB-II
    RFC 1493 Bridge MIB
    RFC 1643 Ethernet MIB
    RFC 2863 Interface MIB
    RFC 2665 Ether-Like MIB
    RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
    RFC 2737 Entity MIB
    RFC 2618 RADIUS Client MIB
    RFC 2933 IGMP-STD-MIB
    RFC 3411 SNMP-Frameworks-MIB
    FC 4292 IP Forward MIBIEEE 802.1X PAE
    LLDP
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Standards ComplianceIEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX/100BASE-FX
    IEEE 802.3z Gigabit SX/LX
    IEEE 802.3ab Gigabit 1000T
    IEEE 802.3ae 10Gigabit Ethernet
    IEEE 802.3x flow control and back pressure
    IEEE 802.3ad port trunk with LACP
    IEEE 802.1D Spanning Tree Protocol
    IEEE 802.1w Rapid Spanning Tree Protocol
    IEEE 802.1s Multiple Spanning Tree Protocol
    IEEE 802.1p Class of Service
    IEEE 802.1Q VLAN tagging
    IEEE 802.1ad Q-in-Q VLAN stacking
    IEEE 802.1X Port Authentication Network Control
    IEEE 802.1ab LLDP
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    IEEE 1588 PTPv2
    RFC 768 UDP
    RFC 783 TFTP
    RFC 791 IP
    RFC 792 ICMP
    RFC 2068 HTTP
    RFC 1112 IGMP v1
    RFC 2236 IGMP v2
    RFC 3376 IGMP version 3
    RFC 2710 MLD version 1
    RFC 3810 MLD version 2
    ITU G.8032 ERPS Ring
    Environment
    Operating Temperature-40 ~ 75 degrees C
    Storage Temperature-40 ~ 85 degrees C
    Humidity5 ~ 95% (non-condensing)

    Diğer Özellikler
    Stok KoduPL-IGS-6325-24P4X
    MarkaPLANET
    Stok DurumuVar
    4711605284059
