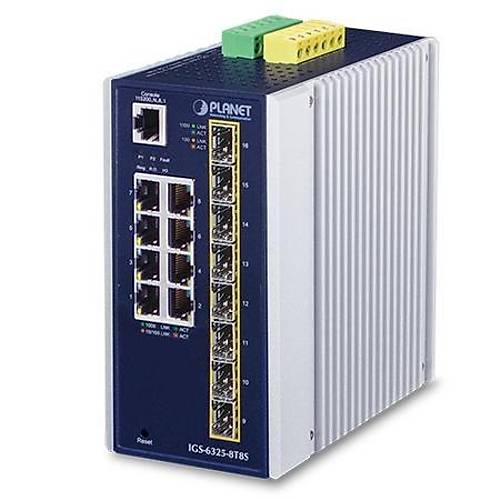

    Planet PL-IGS-6325-8T8S 8 Port Gigabit 8 Port SFP Endüstriyel Managed Switch

    Planet PL-IGS-6325-8T8S 8 Port Gigabit 8 Port SFP Endüstriyel Managed Switch Planet PL-IGS-6325-8T8S 8 Port Gigabit 8 Port SFP Endüstriyel Managed Switch
    Görsel 1
    Görsel 2
    Para_Puan : 219.520
    Fiyat:
    26.342,40 TL
    Havale / EFT:
    25.552,13 TL
    4.917,25 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo Sınırlı Sayıda Kargo Bedava

    Ürüne Oy Verin

    Satıcıya Danış

    Planet PL-IGS-6325-8T8S 8 Port Gigabit 8 Port SFP  Endüstriyel Managed Switch


    Hardware Specifications
    Copper Ports8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
    SFP Ports8 100/1000/2500BASE-X SFP slot interfaces (Port-9 to Port-16)
    Compatible with 100BASE-FX and 2500BASE-X SFP transceiver
    SFP+ Ports--
    Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
    Switch ArchitectureStore-and-Forward
    Switch Fabric56Gbps/non-blocking
    Throughput23.81Mpps@64Bytes
    Address Table32K entries, automatic source address learning and aging
    Shared Data Buffer32Mbits
    Jumbo Frame10K bytes
    SDRAM512Mbytes
    Flash Memory64Mbytes
    Flow ControlIEEE 802.3x pause frame for full duplex
    Back pressure for half duplex
    Reset Button< 5 sec: System reboot
    > 5 sec: Factory default

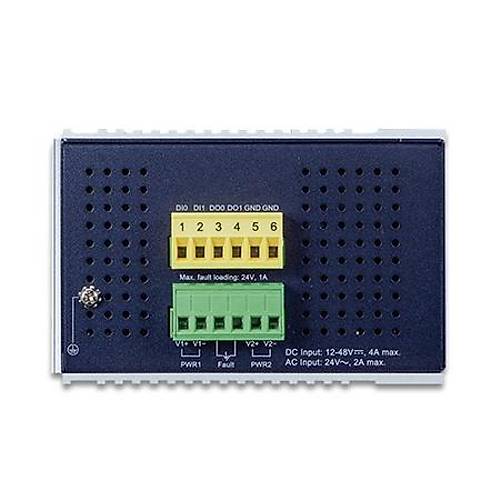

    ConnectorRemovable 6-pin terminal block for power input
    Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
    Removable 6-pin terminal block for DI/DO interface
    Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
    AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
    Digital Input (DO)2 digital input:
    ?Level 0: -24~2.1V (±0.1V)
    ?Level 1: 2.1~24V (±0.1V)
    ?Input load to 24V DC, 10mA max.
    Digital Output (DO)2 digital output:
    ?Open collector to 24VDC, 100mA
    EnclosureIP30 aluminum case
    InstallationDIN-rail or wall mounting
    Dimensions (W x D x H)86 x 107 x 152 mm
    Weight1,065g
    Power RequirementsDC 12~48V, 4A max.
    AC 24V, 2A max.
    Power ConsumptionDC input:
    Max. 9.12 watts/32BTU
    (system on)
    Max. 26.04 watts/89 BTU (Full loading)

    AC 24V input:
    Max. 12 watts/41BTU (system on)
    Max. 29 watts/99 BTU (Full loading)
    ESD Protection6KV DC
    Surge Protection4KV DC
    LED IndicatorsSystem:
    ?Power 1 (Green), Power 2 (Green)
    ?Fault Alarm (Red)
    ?Ring (Green), Ring Owner (Green)
    ?DIDO (Red)
    Per 10/100/1000T RJ45 Port:
    ?1000Mbps LNK/ACT (Green)
    ?10/100Mbps LNK/ACT (Amber)
    Per SFP Port:
    ?1000Mbps LNK/ACT (Green)
    ?100Mbps LNK/ACT (Amber)
    Layer 2 Functions
    Port ConfigurationPort disable/enable
    Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
    Flow control disable/enable
    Port link capability control
    Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
    Port MirroringTX/RX/Both
    Many-to-1 monitor
    VLAN802.1Q tagged VLAN
    Q-in-Q tunneling
    Private VLAN Edge (PVE)
    MAC-based VLAN
    Protocol-based VLAN
    Voice VLAN
    IP Subnet-based VLAN
    MVR (Multicast VLAN registration)
    GVRP
    Up to 4K VLAN groups, out of 4095 VLAN IDs
    Link AggregationIEEE 802.3ad LACP/static trunk
    14 trunk groups with 16 port per trunk group
    Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
    IEEE 802.1w Rapid Spanning Tree Protocol
    IEEE 802.1s Multiple Spanning Tree Protocol
    IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
    IPv4 IGMP querier mode support
    Supports 255 IGMP groups
    MLD SnoopingIPv6 MLD (v1/v2) snooping,
    IPv6 MLD querier mode support
    Supports 255 MLD groups
    Access Control ListIP-based ACL/MAC-based ACL
    ACL bBased on:
    ?- MAC Address
    ?- IP Address
    ?- Ethertype
    ?- Protocol Type
    ?- VLAN ID
    ?- DSCP
    ?- 802.1p Priority
    Up to 512 entries
    Bandwidth ControlPer port bandwidth control
    Ingress: 100Kbps~1000Mbps
    Egress: 100Kbps~1000Mbps
    QoSTraffic classification based, strict priority and WRR
    8-level priority for switching:
    ?- Port number
    ?- 802.1p priority
    ?- 802.1Q VLAN tag
    ?- DSCP/ToS field in IP packet
    SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
    ?- Peer-to-peer transparent clock
    ?- End-to-end transparent clock
    Layer 3 Functions
    IP InterfacesMax. 128 VLAN interfaces
    Routing TableMax. 128 static routing entries
    Max. 4000 dynamic routing entries
    Routing ProtocolsIPv4 hardware static routing
    IPv6 hardware static routing
    OSPFv2 dynamic routing

    Diğer Özellikler
    Stok KoduPL-IGS-6325-8T8S
    MarkaPLANET
    Stok DurumuVar
    4711605284813
