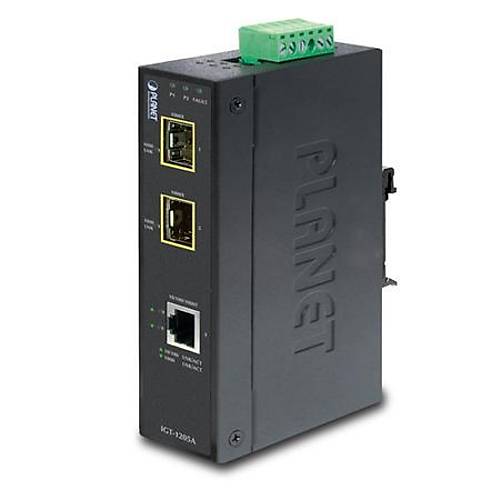

Physical Port
- 1-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function
- 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
Fiber Port Redundancy
- Link status auto-detect and redundant on dual ports with the same connector type
- Only Primary-Port is active at a time, the Backup-Port is blocked
- When Primary-Port link failure occurs, the traffic will swap to Backup-Port automatically
- Once the Primary-Port status is back to link-up, the traffic will swap from Backup-Port to Primary-Port
Layer 2 Features
- Supports auto negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- 9K Jumbo Frame Size support
- Integrated address look-up engine, support 1K absolute MAC addresses
- Automatic address learning and address aging
Industrial Case / Installation
- - 12 to 48V DC, redundant power with polarity reverse protect function
- - AC 24V power adapter acceptable
- Slim IP30 metal case protection
- DIN rail and wall mount design
- Redundant Power Design
- Supports EFT protection 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
| Hardware Specifications |
| Copper Port | 1 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-Negotiation |
| SFP / mini-GBIC Slots | 2 1000Base-SX/LX/BX SFP interfaces (Port-1 and Port-2)
Compatible with 100Base-FX SFP |
| DIP Switch | DIP-1: SFP Port 1 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 2 1000Base-X (default)/ 100Base-FX
DIP-3: Switch mode / Fiber Redundant mode |
| Connector | Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarm | Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V |
| LED | 3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Green: Power Fault
2 x LED for Per Copper Port:
■ Green: 1000 LNK/ACT
■ Orange:100 LNK/ACT
1 x LED for Per mini-GBIC interface (Port-1 and Port-2):
■ Green: LNK/ACT |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 type metal case |
| Installation | DIN rail kit and wall mount ear |
| Dimensions (W x D x H) | 135 x 87 x 32mm |
| Weight | 505g |
| Power Requirements | DC 12~48V or AC 24V
Redundant power with polarity reverses protection function |
| Power Consumption / Dissipation | 4.8 watts/16BTU |
| Cable | Twisted-Pair
10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Fiber-Optic Cable
1000Base-SX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
1000Base-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
kilometers (vary on SFP module)
100Base-FX:
● 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2
kilometers
● 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers
(vary on SFP module) |
| Switch Specifications |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 1K entries |
| Flow Control | Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Switch fabric | 6Gbps |
| Throughput (packet per second) | 4.46Mpps@64bytes |
| Maximum Transmit Unit | 9216 bytes |
| Speed | SX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
TP: 10/20Mbps, 100/200Mbps, 2000Mbps |
| Standards Conformance |
| Standards Compliance | IEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration) |
| Environment |
| Temperature | | Operating: | -40~75 degrees C | | Storage: | -40~75 degrees C |
|
| Humidity | | Operating: | 5~95% (non-condensing) | | Storage: | 5~95% (non-condensing) |
|
| Diğer Özellikler |
|---|
| Stok Kodu | PL-IGT-1205AT |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
