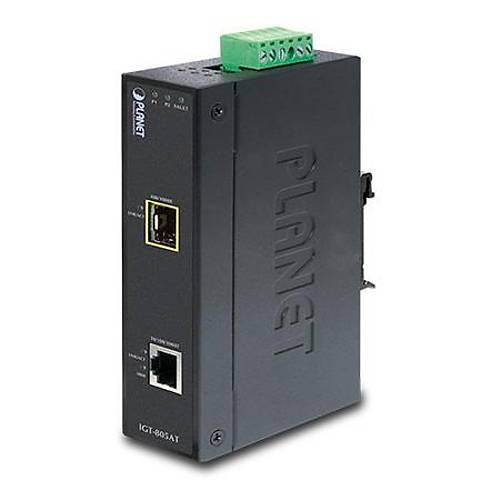

Endüstriyel Tip Yönetilebilir Media Converter
1 x 10/100/1000BASE-T <-> 1 x 1000BASE-SX/LX/BX SFP (100BASE-FX SFP uyumlu)
IP30, -40 ile 75 Derece C
Physical Port
- 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
- 1 SFP interface, 100/1000BASE-X dual mode (auto detection)
Layer 2 Features- IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet standard compliant
- Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- 9K jumbo frame size support
- LFP function support
- Automatic address learning and address aging
Industrial Case / Installation- - 12 to 48V DC, redundant power with polarity reverse protect function
- - AC 24V power adapter acceptable
- Slim-type IP30 metal case
- DIN rail and wall-mount design
- Redundant power design
- Supports EFT protection for 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
| Hardware Specifications |
| Copper Interface | 1 x 10/100/1000BASE-T RJ45 TP
Auto-MDI/MDI-X, auto-negotiation |
| Fiber Optic Interface | 1 1000BASE-SX/LX/BX SFP interface.
Compatible with 100BASE-FX SFP |
| Connector | Removable 6-pin terminal block
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm | Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V |
| LED | 3 x LED for System and Power:
? Green: DC Power 1
? Green: DC Power 2
? Green: Power Fault
2 x LED for Per Copper Port:
? Green: LNK/ACT
? Green:1000
1 x LED for Per Mini-GBIC Interface
? Green: LNK/ACT |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 type metal case |
| Installation | DIN rail kit and wall mount ear |
| Dimensions (W x D x H) | 135 x 87 x 32 mm |
| Weight | 458g |
| Power Requirements | DC 12~48V, redundant power with polarity reverse protection function.
AC 24V power adapter |
| Power Consumption / Dissipation | 3.3 watts/11BTU |
| Converter Specifications |
| Flow Control | Back pressure for half duplex.
IEEE 802.3x pause frame for full duplex |
| Fabric | 4Gbps |
| Throughpu (packet per second) | 2.97Mpps@64bytes |
| Maximum Transmission Unit | 9216 bytes |
| Network Cables | 10/100/1000BASE-T:
Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.)
EIA/TIA-568 100-ohm STP (100 meters, max.)
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module)
1000BASE-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/60/70/120 kilometers (varying on SFP module)
100BASE-FX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to
2 kilometers (varying on SFP module)
9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module) |
| Standards Conformance |
| Standards Compliance | IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x full-duplex flow control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Environment |
| Temperature | Operating: -40~75 degrees C
Storage: -40~75 degrees C |
| Humidity | Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing) |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-IGT-805AT |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
