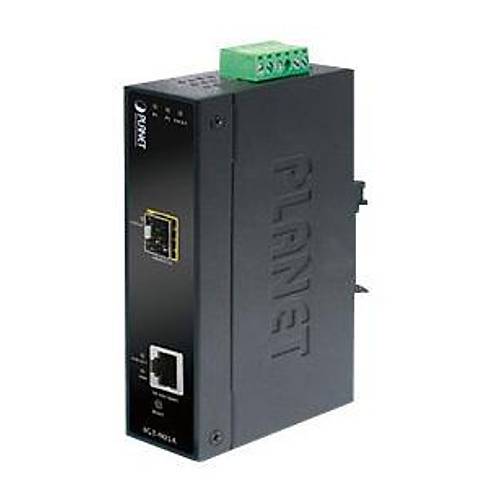

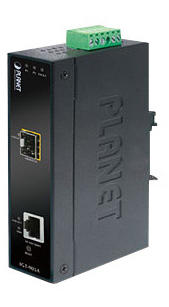

    Planet PL-IGTP-805At 1000Base-Sx/Lx To 10/100/1000Base-T Poe Sfp

    Görsel 1
    Para_Puan : 41.950
    5.034,05 TL
    Havale / EFT:
    4.872,96 TL
    939,69 TL'den başlayan taksit seçenekleri için tıklayın.
    Kargo Bedava
    Endüstriyel Tip Yönetilebilir Media Converter
    10/100/1000Base-T to mini-GBIC (LC, MM/SM)
    IP30, -30 ile 75 Derece C


    • 1-port 10/100/1000Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function

    • 1 Mini-GBIC slot, provides multi choice of SFP modules on


    Industrial Conformance

    • 12V to 48V DC, redundant power

    • -30 to 75 degrees C operating temperature

    • IP-30 metal case

    • Relay alarm for port breakdown

    • Supports 6KV DC Ethernet ESD protection

    • Free fall, Shock and Vibration Stability

    • DIN-rail and wall-mountable hardware design


    Layer 2 Features

    • Store-and-Forward mechanism

    • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

    • Maximum frame size to 9216 Bytes

    • Loop detection / Broadcast / Multicast / Unicast storm control

    • Supports VLANs

     –IEEE 802.1Q Tagged based VLAN

     –Up to 16 VLANs groups, out of 4K VLAN IDs

     –Management VLAN


    Quality of Service

    • Ingress/Egress Bandwidth control on TP / Fiber port

    • 4 priority queues, strict priority and Weighted Round Robin (WRR)

    • Traffic classification by:

     –IEEE 802.1p Class of Service

     –IP DSCP priority

     –IP Address priority



    • Built-in IP-based Web interface for remote management

    • SNMP v1 / v2c and 4 RMON groups, Event trap and SNMP trap support

    • Manual IP address setting / DHCP client for IP address assignment

    • TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test

    • 16 TCP / UDP Filter groups

    • Password setting, IP setting and devices description setting through Planet Smart discovery utility

    • Firmware upgrade via remote Web interface

    • Reset Button at the front panel for the factory default reset

    • Display the current operating temperature



    Hardware Specifications
    Copper Interface1 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port
    Optic InterfaceSFP
    Optical ModeVary on module
    Optic WavelengthVary on module
    10/20Mbps for Half / Full-Duplex
    100/200Mbps for Half / Full Duplex
    2000Mbps for Full-Duplex

    2000Mbps for Full-Duplex
    10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m
    100Base-TX: 2-pair UTP Cat. 5, up to 100 m
    1000Base-T: 4-pair STP Cat 5,6 up to 100m

    Fiber-optic Cable
    • 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m.
    • 9/125μm single-mode cable, provides long distance for
    10/15/20/30/40/50/60/70/120km (vary on fiber transceiver or SFP
    LED indicator• Power: P1, P2, Fault
    • TP: LNK/ACT, 1000
    • Fiber: LNK/ACT
    Power InputDC 12V to 48V
    Redundant power with polarity reverse protection function
    Power Consumption7.9 Watts/ 27 BTU (maximum)
    Dimensions (W x D x H)135 x 85 x 32 mm
    InstallationDIN rail kit and wall mount ear
    Management and Layer 2 Features
    Management InterfaceWEB / SNMP v1, v2c
    Port ConfigurationPort disable/enable
    Auto negotiation 10/100/1000Mbps full and half duplex mode selection.
    Flow Control disable / enable. Bandwidth control on each port.
    VLANIEEE 802.1q Tagged based VLAN , 4K VLAN ID, up to 16 VLAN groups
    Q-in-Q VLAN
    QoSTraffic classification based on :
    • 802.1p priority
    • IP DSCP field in IP Packet
    • IP Address
    Bandwidth ControlIngress / Egress bandwidth control
    • Rate range: 512kbps to 500Mbps
    Storm control
    • Broadcast / Multicast / Unknown Unicast packet
    Standard Conformance
    Standards ComplianceIEEE 802.3 10Base-T Ethernet
    IEEE 802.3u 100Base-TX / FX Fast Ethernet
    IEEE 802.3ab 1000Base-T Gigabit Ethernet
    IEEE 802.3z 1000Base-SX / LX Gigabit Ethernet
    IEEE 802.3x Full-Duplex Flow Control
    Regulation ComplianceFCC Part 15 Class A, CE
    Stability TestingIEC60068-2-32(Free fall)
    Environmental Specifications
    TemperatureOperating: -30~75 degrees C
    Storage: -40~85 degrees C
    HumidityOperating: 5~90% (non-condensing)
    Storage: 5~90% (non-condensing)
    Diğer Özellikler
    Stok KoduPL-IGTP-805AT
    Stok DurumuVar
    Garanti (Yıl)2
