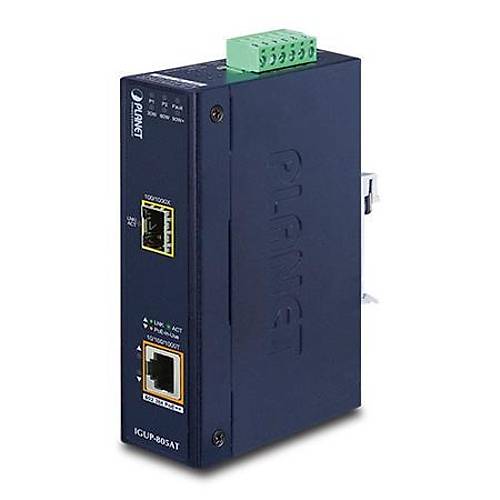

Planet PL-IGUP-805AT 1 Port 10/100X SFP 1 Port 10/100/1000T Poe++ Converter
Para_Puan : 48.972
1
Industrial 1-Port 100/1000X SFP to 1-Port 10/100/1000T 802.3bt PoE++ Media Converter
| Hardware Specifications | |
|---|---|
| Copper Port | One 10/100/1000BASE-T port |
| SFP Slot | One 1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED Indicators | System: Power 1 (Green), Power 2 (Green), Fault Alarm (Red) PoE Usage: IGUP-805AT: 30W/60W/90W+ (Amber) Fiber: 100/1000BASE-X: LINK/ACT (Green) TP: 10/100/1000BASE-T: LNK/ACT (Green) PoE: PoE-in-Use (Amber) |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 484 g |

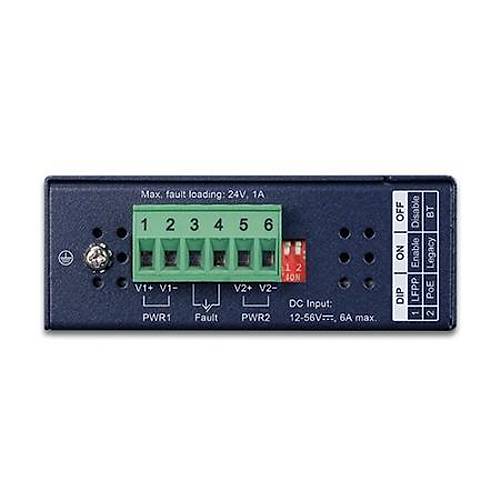

| Power Requirements | 12-56V DC, supports reverse polarity protection |
| Power Consumption | System ON without loading 12V DC: 4.44W 48V DC: 3.36W Full loading with PoE 12V DC: 82W 48V DC: 98W |
| DIP Switch 1 | LFPP On/Off |
| DIP Switch 2 | Legacy mode On (POH)/Legacy mode Off (BT) |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount ear |
| ESD Protection | 6KV DC |
| Cables | 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3bt Power over Ethernet Plus Plus |
| PoE Power Output | Standard (BT) mode: 90W Legacy (POH) mode: 95W |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
| PoE Power Budget | 95 watts@24-56V DC input 60 watts@12V DC input |
| PoE Mode | Standard: To provide power to the PD devices that follow the IEEE 802.3at/bt standard. Legacy: To provide power to the PD devices that do not fully follow the IEEE 802.3af/at/bt standard. Besides, the Legacy mode supports PoH and Ultra PoE. |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Ordering Information | |
|---|---|
IGUP-805AT | Industrial 1-Port 100/1000X SFP to 1-Port 10/100/1000T 802.3bt PoE++ Media Converter |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IGUP-805AT |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
|
