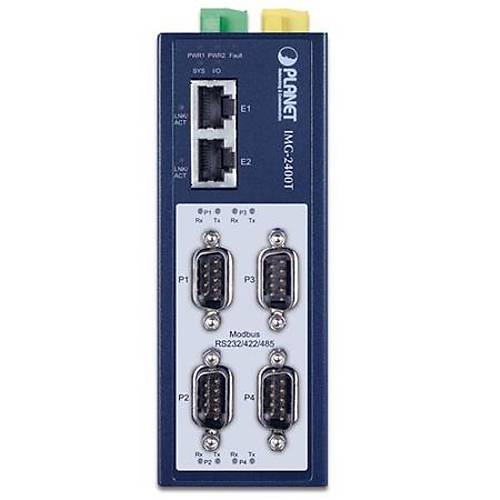

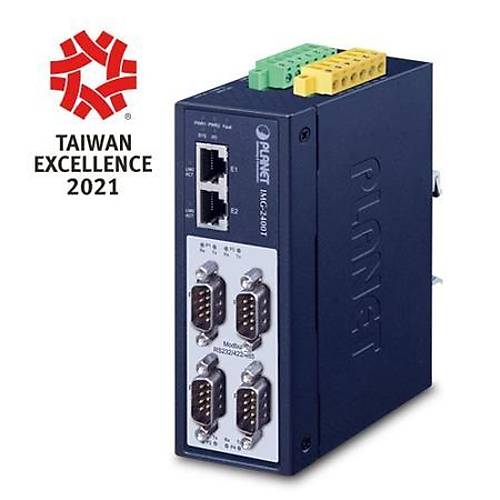

Planet PL-IMG-2400T 4 Port RS232 RS422 RS485 2 Port 10/100TX Endüstriyel Gateway

Planet PL-IMG-2400T 4 Port RS232 RS422 RS485 2 Port 10/100TX Endüstriyel Gateway Planet PL-IMG-2400T 4 Port RS232 RS422 RS485 2 Port 10/100TX Endüstriyel Gateway Planet PL-IMG-2400T 4 Port RS232 RS422 RS485 2 Port 10/100TX Endüstriyel Gateway
Görsel 1
Görsel 2
Görsel 3
Para_Puan : 206.680
Fiyat:
24.801,57 TL
Havale / EFT:
24.057,52 TL
4.794,97 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

Ürüne Oy Verin

Satıcıya Danış

Planet PL-IMG-2400T 4 Port RS232 RS422 RS485 2 Port 10/100TX Endüstriyel Gateway

Serial Interface
Serial Ports4 x DB9 male
Serial StandardsRS232 / 4-wire RS422 or RS485 / 2-wire RS485
Baud Rate (Data Rate)50bps to 921Kbps
Data Bits5, 6, 7, 8
Parity Type1, 1.5, 2
Stop BitOdd, Even, None, Space, Mark
Flow ControlRTS/CTS and DTR/DSR (RS232 only)
XON/XOFF
SignalsRS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GND
Pin Assignment
PinRS232RS422
RS485-4W		RS485-2W
1DCDTxD+--
2RxDTxD---
3TxDRxD-Data-
4DTRRxD+Data+
5GNDGNDGND
6DSR----
7RTS----
8CTS----
9------
Operation ModeRTU Master/RTU Slave/ASCII Master/ASCII Slave
Master mode: Supports up to 32 TCP slave connection requests
Slave mode: Supports up to 32 TCP master connection requests
Serial Line Protection2KV isolation protection
1KV (level 2) surge protection
15KV ESD protection
Ethernet Interface
Ethernet Ports2 x RJ45
Standard10/100BASE-TX
Distance100m
Switch ArchitectureStore-and-Forward
Address Table1K
ESD Protection6KV
Surge Protection2KV
Hardware
InstallationDIN-rail kit and wall-mount ear
EnclosureIP 40 metal
Dimensions (W x D x H)50 x 87 x 135 mm
Weight625g
LED IndicatorsSystem: Power 1, Power 2, Fault, SYS,I/O
TP Port: Link/ Active
Serial Port: Tx and Rx
Power Requirements12~48V DC, redundant power with reverse polarity protection
Power ConsumptionFull Loading
12VDC: 0.419A (5.1 watts)
24VDC: 0.227A (5.4 watts)
48VDC: 0.136A (6.5 watts)

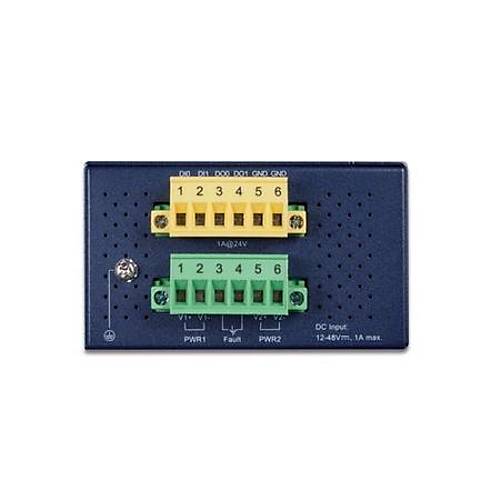

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
DI and DO2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.

2 Digital Output (DO):
Open collector to 24V DC, 100mA max.
AlarmProvides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Management
Management InterfacesWeb management
Telnet Console management
Windows-based VCOM Utility management
SNMPv1, v2c / SNMP Trap
UNI-NMS monitoring
PLANET Smart Discovery Utility
IP VersionIPv4 and IPv6
Operation ModeRTU Master
RTU Slave
ASCII Master
ASCII Slave
Virtual COM Utility Platform SupportsWindows-based only:
?Windows XP
?Windows Server 2003
?Windows 7
?Windows Server 2008
?Windows 8 (Must install the latest version of WinPcap)
?Windows Server 2012 (Must install the latest version of WinPcap)
?Windows 10
Fault AlarmRecord: System log / SNMP trap
TimeNTP
SecurityAllow max. 4 accessible IP address hosts/ranges
SNMP MIBsRFC1213 MIB-II
RFC1317 RS232-like MIB
Standards Conformances
Regulatory ComplianceFCC Part 15 Class A,
CE Certification Class A
Stability TestingIEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 854 Telnet
RFC 958 NTP
RFC 1591 DNS (client only)
RFC 1908 SNMPv2c
RFC 2068 HTTP
RFC 2131 DHCP Client
RFC 2732 Format for Literal IPv6 Addresses in URL's
RFC 3315 DHCPv6 Client
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNSv6
RFC 4443 ICMPv6
EIA/TIA RS232/422/485
Regulatory ApprovalRoHS
Environment
Operating Temperature-40 ~ 75 degrees C
Storage Temperature-40 ~ 85 degrees C
Humidity5 ~ 95% (non-condensing)
