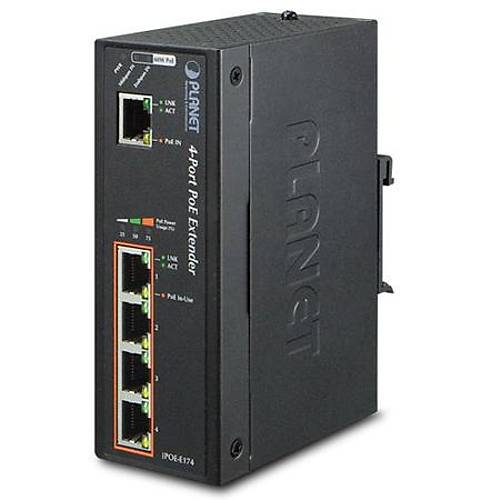

1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender
Physical Port- - 1-port data + power input
- - 4-port data + power output
- 5-port 10/100/1000BASE-T Gigabit RJ45 interface
Power over Ethernet- - Complies with ultra Power over Ethernet end-span and mid-span PD
- - Complies with IEEE 802.3at High Power over Ethernet end-span / mid-span PD
- - Supports PoE input power up to 60 watts
- - Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet / end-span PSE
- - Up to 4 IEEE 802.3af / 802.3at devices powered
- - Supports PoE power up to 30.8 watts for each PoE port
- - Auto detects powered device (PD)
- 1-port data + power input
- 4-port data + power output
- Extends the range of PoE to an additional 100 meters (328ft.)
- Forwards both Ethernet data and PoE power to remote device
Layer 2 Features- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control, auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 9K jumbo frame support in 1000Mbps duplex mode
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Industrial Case / Installation- IP30 metal case
- DIN rail and wall-mount design
- Supports EFT protection for 6000V DC power, and 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- No external power cable required for installation
- Plug and Play installation
- LED indicators for each port in use and PoE power usage (25%, 50% and 75% )
Standards Compliance- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3x Flow Control
- IEEE 802.3at High Power over Ethernet
- IEEE 802.3af Power over Ethernet
- FCC Part 15 Class A, CE
| Hardware Specifications |
| Network Connector | PoE In Port
?1 x 10/100/1000BASE-T Ethernet with ultra PoE “Data + DC” in, auto
?MDI/MDI-X, auto-negotiation RJ45 connector
PoE Out Port
?4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC”
?out, auto MDI/MDI-X, auto-negotiation RJ45 connector |
| Switch Architecture | Store-and-Forward switch architecture |
| MAC Address Table | 8K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 10Gbps |
| Switch Throughput | 7.44Mpps @ 64Bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN rail kit and wall-mount ear |
| LED Display | System: PWR (Green)
Power Input: Midspan in (Green)
Power Input: Endspan in (Green)
PoE Power Usage (%): 25 (Green)
PoE Power Usage (%): 50 (Green)
PoE Power Usage (%): 75 (Green)
PoE Input Port: LNK/ACT (Green)
PoE Input Port: PoE in (Orange)
Per PoE Output Port: LNK/ACT (Green)
Per PoE Output Port: PoE-in-Use (Orange) |
| Cable | Twisted-pair cable :
?? 10BASE-T: 2-pair UTP Cat. 3, 4, 5 up to 100 meters
?? 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
?? 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters |
| Dimensions (W x D x H) | 56 x 87.8 x 135 mm |
| Weignt | 715g |
| Power Consumption | 60 watts / 204.6BTU (Full loading with PoE function) |
| Power over Ethernet |
| PoE Standard | PoE In Port
?IEEE 802.3at High Power over Ethernet end-span / mid-span class 4 PD
Per PoE Out Port
?IEEE 802.3at High Power over Ethernet end-span PSE
?IEEE 802.3af Power over Ethernet end-span PSE |
| PoE Power | PoE In Port
?50~57V DC, max. 60 watts
Per PoE Out Port
?44~55V DC, max. 30.8 watts |
| Power Pin Assignment | PoE In Port
?1/2(+), 3/6(-); 4/5(+), 7/8(-)
Per PoE Out Port
?1/2(+), 3/6(-) |
| PoE Power Budget | 50 watts (max.) @ Ultra PoE input
20 watts (max.) @ IEEE 802.3at PoE+ input
No support @ IEEE 802.3af PoE input |
| Standards Conformance |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration) |
| Standards Compliance | IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at High Power over Ethernet |
| Environment |
| Operating | Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
