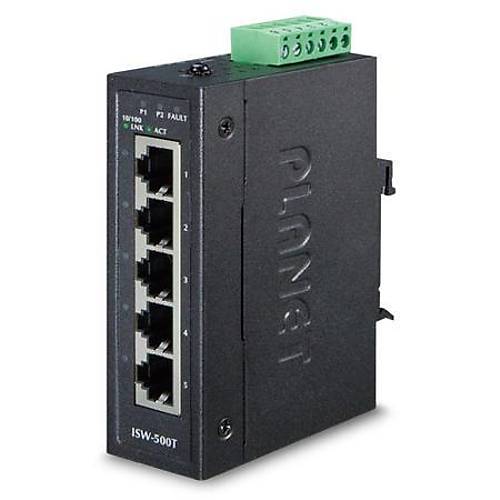

Endüstriyel Tip Ethernet Switch (Industrial Ethernet Switch)
5-Port 10/100Base-TX RJ-45 port
IP30, -40~75 Derece C
Physical Port- 5-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
Layer 2 Features- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.1p CoS
- Supports 1K MAC address
- Automatic address learning and address aging
Industrial Case and Installation- IP30 metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protect function
- 24V AC power input acceptable
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
| Hardware Specifications |
| Copper Ports | 5 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1Gbps (non-blocking) |
| Throughput (packet per second) | 0.74Mpps@ 64 bytes |
| Address Table | 1K entries, automatic source address learning and aging |
| Shared Data Buffer | 448K bits |
| Flow Control | IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN rail kit and wall-mount kit |
| Connector | Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| LED Indicator | System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm ( Red )
Per 10/100TX RJ45 Ports:
10/100 LNK/ACT (Green) |
| Dimensions (W x D x H) | 70 x 104 x 30 mm |
| Weight | 255g |
| Power Requirements | Dual 12~48V DC, 24V AC |
| Power Consumption | Max. 1.1 watts/3.77BTU (Power on without any connection)
Max. 2 watts/6.86BTU (Ethernet full loading) |
| Standards Conformance |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.1X Port Authentication Network Control
IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-ISW-500T |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
4711605282796
