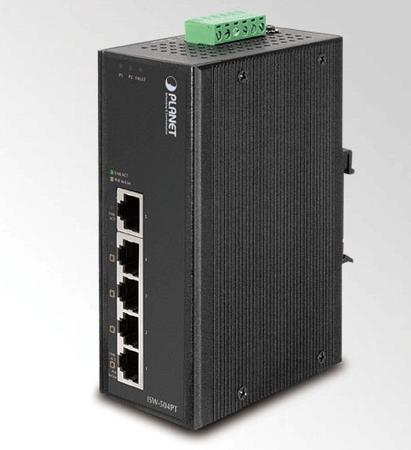

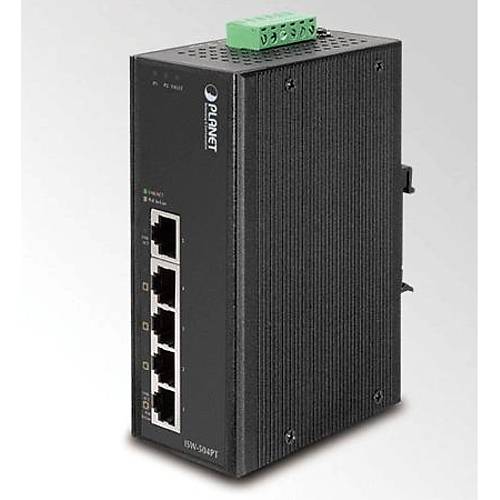

Endüstriyel Tip Yönetilemeyen PoE Switch (Industrial Unmanaged PoE Switch)
5-Port 10/100Base-TX
4-Port IEEE 802.3af PoE Injector (Per port 60 watt)
IP30, -40~75 Derece C
Physical Port
?? 5-Port 10/100Mbps RJ-45 with auto MDI/MDI-X function
?? 4-Port support 48V DC power to PoE Powered Device (Port-1 to Port-4)
IEEE 802.3af PoE
?? Complies with IEEE 802.3af Power over Ethernet End-Span PSE
?? Up to 4 IEEE 802.3af devices powered
?? Supports PoE Power up to 15.4 Watts for each PoE port
?? Auto detect powered device (PD)
?? Circuit protection prevent power interference between ports
?? Remote power feeding up to 100m
Layer 2 Features
?? Supports Auto-Negotiation and 10/100Mbps Half / Full Duplex and Auto MDI/MDI-X
?? High performance Store and Forward architecture, runt / CRC filtering eliminates ??
?? erroneous packets to optimize the network bandwidth
?? Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame
?? flow control (Full-Duplex)
?? Automatic address learning and address aging
?? Integrated address look-up engine, support 2K absolute MAC addresses
?? CSMA / CD Protocol
Industrial Case / Installation
?? IP-30 Aluminum metal case protection
Diğer Özellikler |
Stok Kodu | PL-ISW-504PT |
Marka | PLANET |
Stok Durumu | Var |
Garanti (Yıl) | 2 |
4711213688829
